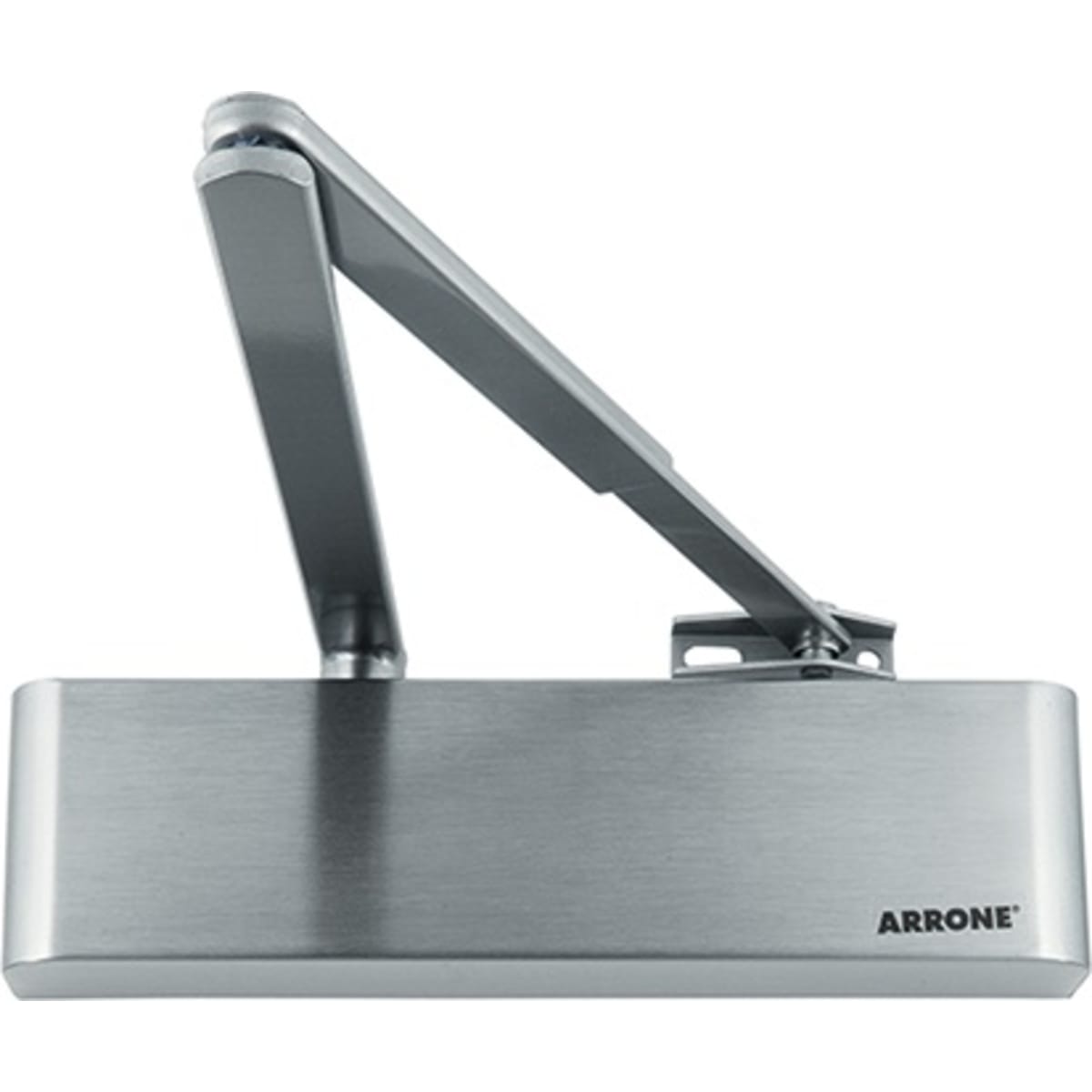

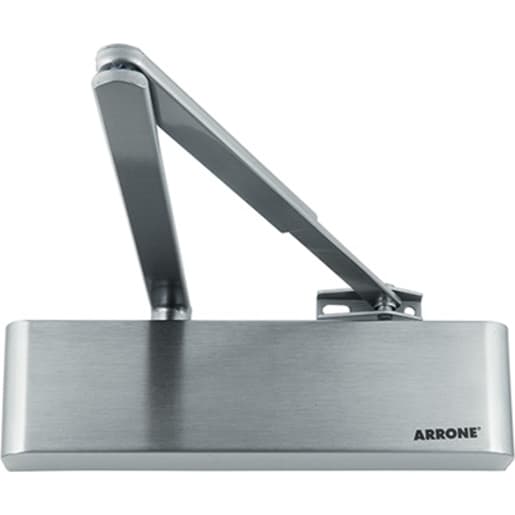

ARRONE Fire Door Closer - Silver Arm/Cover AR5500-L-SSS/SSS
SKU: H8711320
Adjustable Power Size 2-5 Heavy Duty Fire Door Closer, designed for public buildings such as schools, department stores, and hospitals. This high-quality closer ensures reliable and controlled closing of fire doors, promoting safety and compliance. With a versatile power size range, it accommodates exterior and interior doors up to 750-1250mm wide or 100kg in weight. The backcheck feature provides resistance against excessive force, safeguarding doors from damage. Meeting the requirements of the Equality Act regulations (BS 8300), it offers inclusive accessibility. Our door closer includes a universal fixing pack for convenient installation on either the push or pull side. It also features adjustable closing and latch speeds for precise functionality. With a remarkable 120-minute fire rating and a 10-year guarantee, you can trust in its durability and performance.
Features & benefits
- Power size: 3 to 5 adjustable by spring tension (Size 2 by template)
- Function: Closing, latching, backcheck
- Cover: Slimline cover
- Maximum door width: 1,250 mm, 1,100 mm
- Maximum door weight: 100 kg
- Successfully type tested for conformity to all the requirements of BS EN 1154:1997
- Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
- CE Marked: AD0239, UKCA Marked: AD7685
- Certifire approved: CF295, CE DOP: HUK0005, UKCA DOP: HUK0005-UK
IDH8711320
Door Hardware & Closers > Door Closers & Panic Hardware > Overhead Door Closers > ARRONE Fire Door Closer - Silver Arm/Cover AR5500-L-SSS/SSS
https://www.george-boyd.co.uk/p/arrone-ar5500-fire-door-closer-silver-armcover-H8711320
Adjustable Power Size 2-5 Heavy Duty Fire Door Closer, designed for public buildings such as schools, department stores, and hospitals. This high-quality closer ensures reliable and controlled closing of fire doors, promoting safety and compliance. With a versatile power size range, it accommodates exterior and interior doors up to 750-1250mm wide or 100kg in weight. The backcheck feature provides resistance against excessive force, safeguarding doors from damage. Meeting the requirements of the Equality Act regulations (BS 8300), it offers inclusive accessibility. Our door closer includes a universal fixing pack for convenient installation on either the push or pull side. It also features adjustable closing and latch speeds for precise functionality. With a remarkable 120-minute fire rating and a 10-year guarantee, you can trust in its durability and performance.
Features & benefits
- Power size: 3 to 5 adjustable by spring tension (Size 2 by template)
- Function: Closing, latching, backcheck
- Cover: Slimline cover
- Maximum door width: 1,250 mm, 1,100 mm
- Maximum door weight: 100 kg
- Successfully type tested for conformity to all the requirements of BS EN 1154:1997
- Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
- CE Marked: AD0239, UKCA Marked: AD7685
- Certifire approved: CF295, CE DOP: HUK0005, UKCA DOP: HUK0005-UK
Specifications
| Product Name | ARRONE Fire Door Closer - Silver Arm/Cover AR5500-L-SSS/SSS |
| Brand | ARRONE |
| Product Type | Door Hardware |
| Manufacturer Name | Hoppe UK Ltd |
| Manufacturer Part Number | 87113200 |
| EAN | 4012789309195 |
| Compliance Approvals | CE Marked |
| Materials | Steel |
| Commercial Or Domestic Use | Commercial |
| Model Number | AR5500-L-SSS/SSS |
| Colour | Silver |
| Application | Interior |
| BS EN Fire rating/performance classifications | BS EN 1634 |
| Pack Quantity | 1 |
| Country Of Origin | Taiwan |
| Applicable Standards | BS EN 1154:1997 |

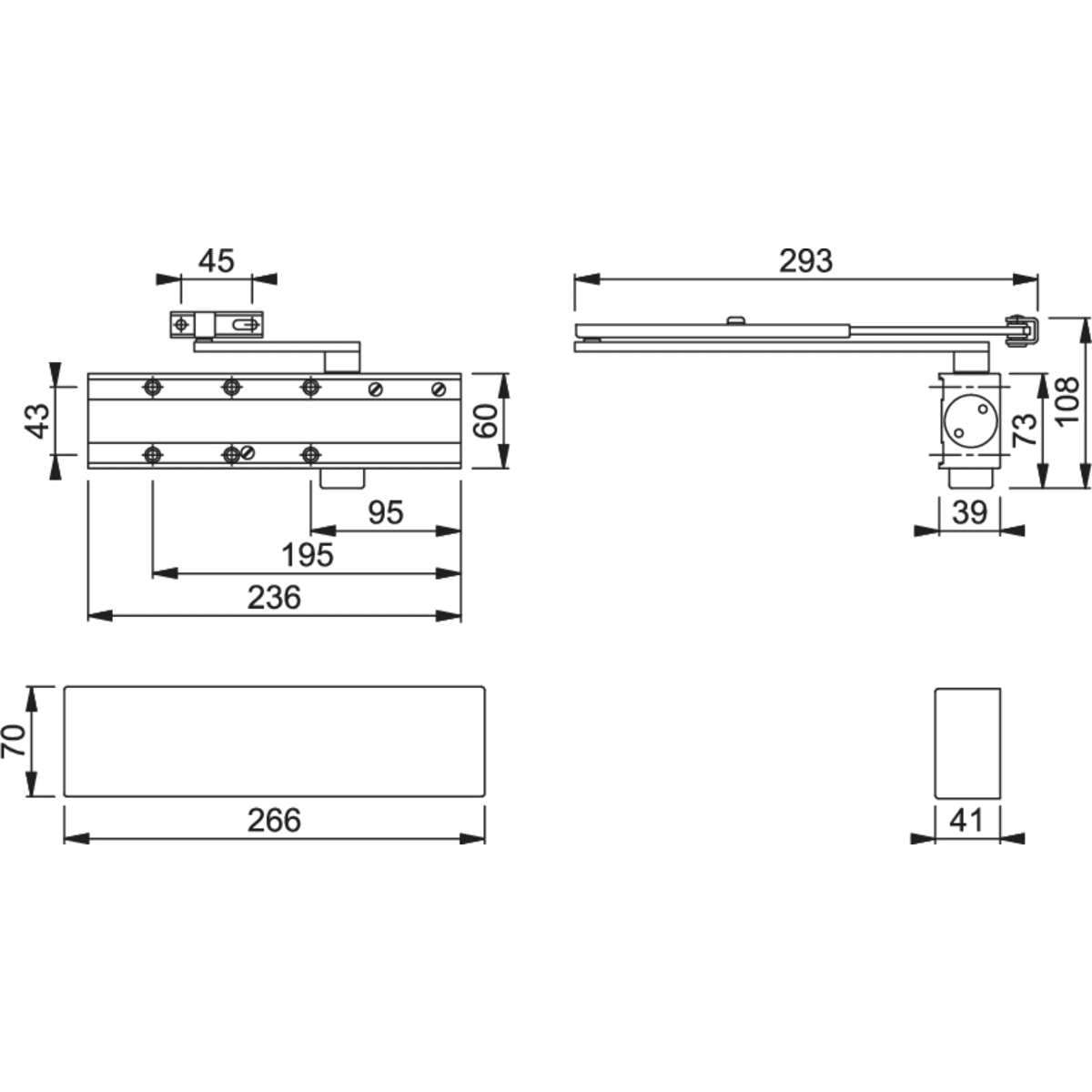

| Product Width | 41 mm |
| Product Weight | 3.02 kg |
| Product Height | 70 mm |
| Product Length | 266 mm |
| Backcheck | Yes |
| Body Base Material | SSS |
| Maximum Door weight | 100 kg |
| Closer Mechanism | rack_and_pinion |
