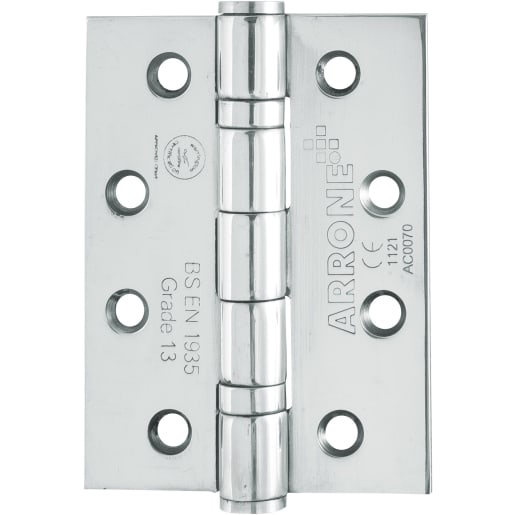

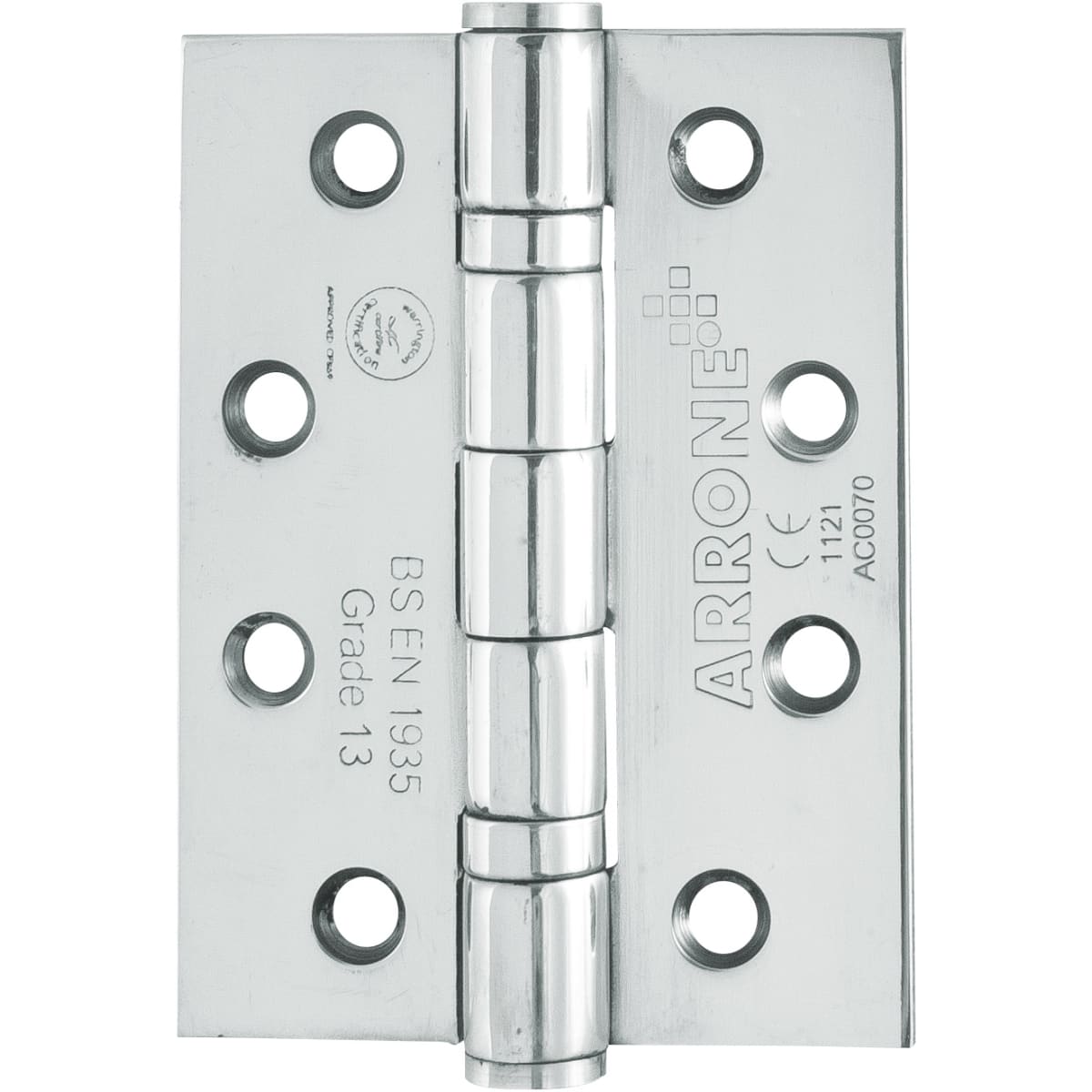

ARRONE Ball Bearing Butt Hinge 102 x 75 x 3mm Stainless Steel AR9290-PSS
SKU: H8567844
ARRONE Ball Bearing Hinges 102 x 75 x 3mm (L x W x T) Polished Chrome made of stainless steel material is used to fix doors. It is lubricated to ensure smooth operation of hinge leaves when fitted to doors. The standard size of the product provides dimensional accuracy. It conforms to BS EN 1935: 2002 and its fire safety is accredited with BS EN 1634-1. The hinges are lightweight and user-friendly. Arrone offers a comprehensive range of products designed for use within the commercial and residential door market. The brand is recognised for offering affordable quality hardware products.
Features & benefits
- CE Marked
- Stainless steel material prevents rusting
- Hinge Grade: Grade 14
- Door weight: Suitable for doors weighing up to 120 kg
- Fixing: 16 x stainless steel pozidrive countersunk wood screws
- Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 );
- BS EN 1634 Part 1. Assessed for use on 30, 60, 90 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
- CE Marked: AC0070, UKCA Marked: AC7679
- Certifire approved: CF369, CE DOP: HUK0016, UKCA DOP: HUK0016-UK
IDH8567844
Hinges, Seals & Intumescent > Hinges > Butt Hinges > ARRONE Ball Bearing Butt Hinge 102 x 75 x 3mm Stainless Steel AR9290-PSS
https://www.george-boyd.co.uk/p/arrone-ball-bearing-butt-hinge-102-x-75-x-3mm-stainless-steel-H8567844
ARRONE Ball Bearing Hinges 102 x 75 x 3mm (L x W x T) Polished Chrome made of stainless steel material is used to fix doors. It is lubricated to ensure smooth operation of hinge leaves when fitted to doors. The standard size of the product provides dimensional accuracy. It conforms to BS EN 1935: 2002 and its fire safety is accredited with BS EN 1634-1. The hinges are lightweight and user-friendly. Arrone offers a comprehensive range of products designed for use within the commercial and residential door market. The brand is recognised for offering affordable quality hardware products.
Features & benefits
- CE Marked
- Stainless steel material prevents rusting
- Hinge Grade: Grade 14
- Door weight: Suitable for doors weighing up to 120 kg
- Fixing: 16 x stainless steel pozidrive countersunk wood screws
- Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 );
- BS EN 1634 Part 1. Assessed for use on 30, 60, 90 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
- CE Marked: AC0070, UKCA Marked: AC7679
- Certifire approved: CF369, CE DOP: HUK0016, UKCA DOP: HUK0016-UK

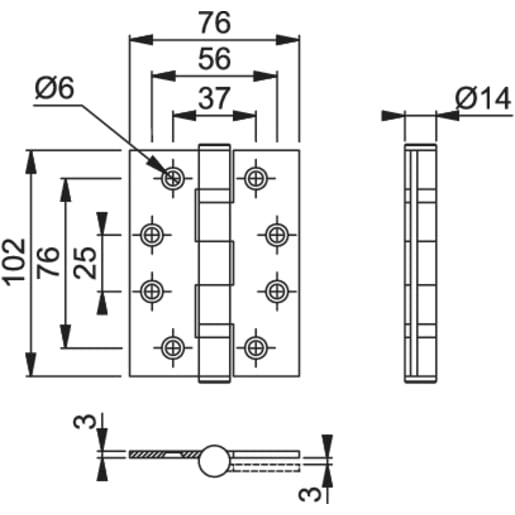

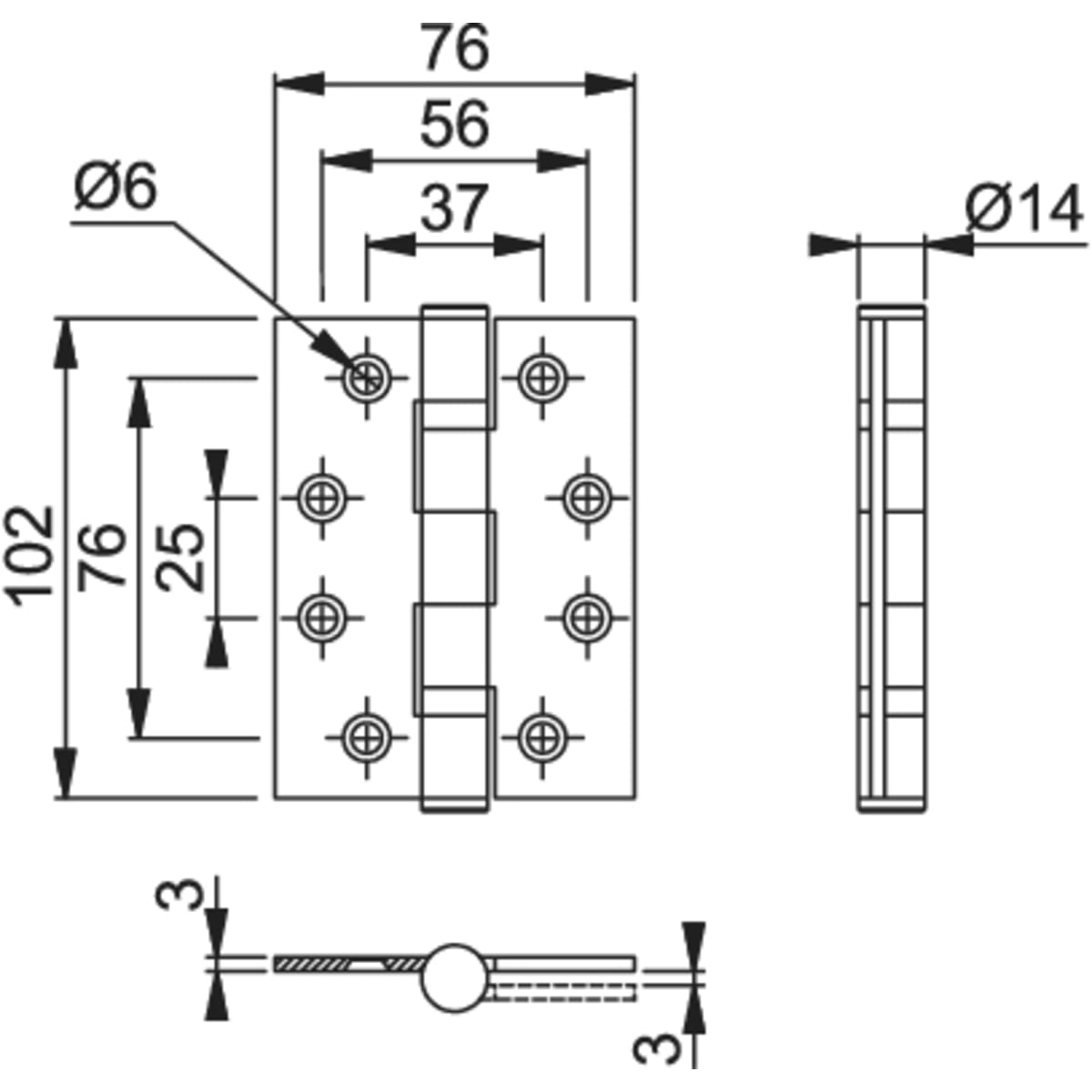

Specifications
| Product Name | ARRONE Ball Bearing Butt Hinge 102 x 75 x 3mm Stainless Steel AR9290-PSS |
| Brand | ARRONE |
| Product Type | Door Hardware |
| Manufacturer Name | Hoppe UK Ltd |
| Manufacturer Part Number | 8567844 |
| EAN | 5051358036932 |
| Compliance Approvals | ISO 14001 |
| Materials | Polished Stainless Steel |
| Commercial Or Domestic Use | Both |
| Model Number | AR9290-PSS |
| Colour | Silver |
| Application | Interior/External |
| BS EN Fire rating/performance classifications | BS EN 1634 |
| Pack Quantity | 1 |
| Country Of Origin | China |
| Finish | Polished Stainless Steel |
| Product Width | 75 mm |
| Product Weight | 0.58 kg |
| Product Length | 102 mm |
| Thickness | 3 mm |
| Body Base Material | Polished Stainless Steel |
