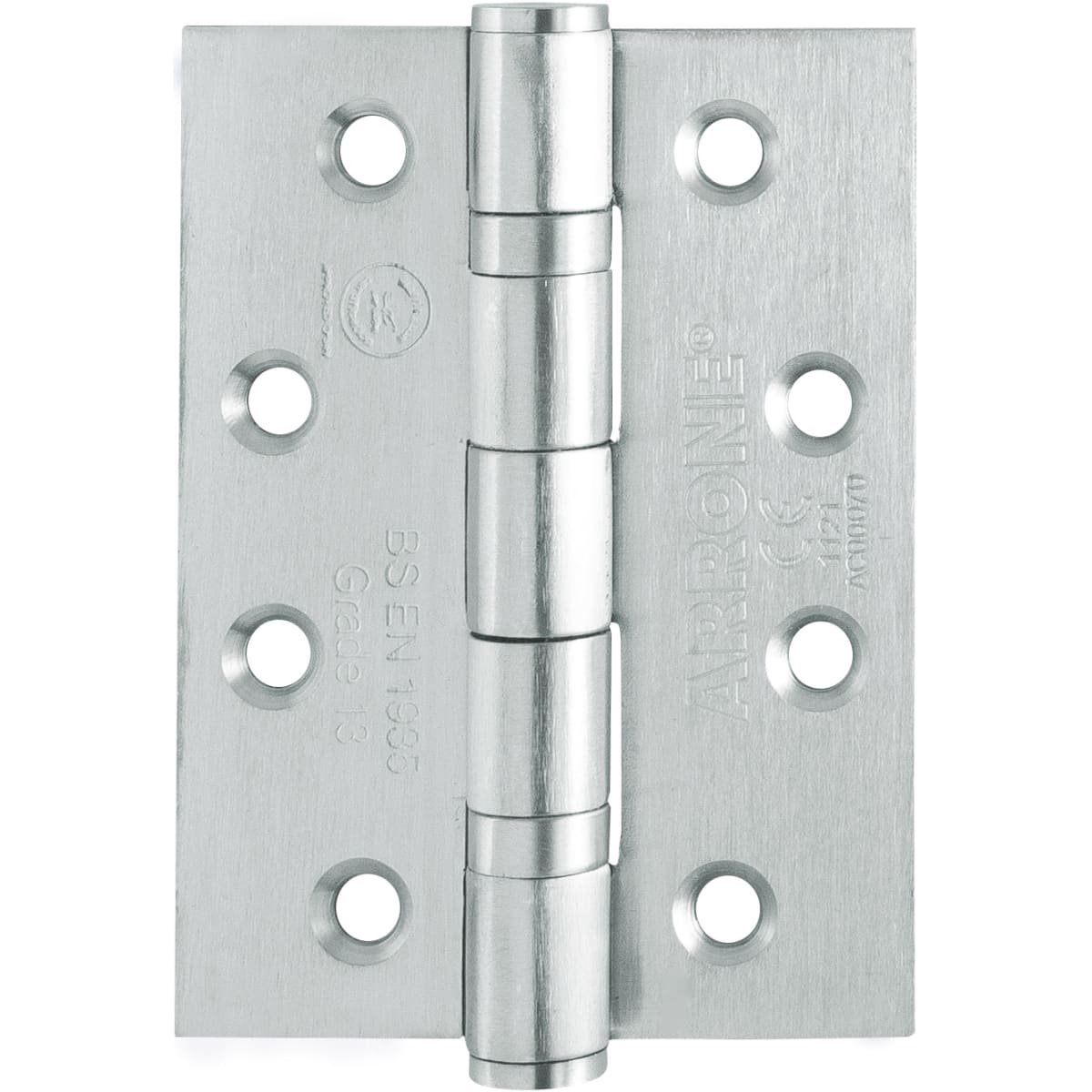

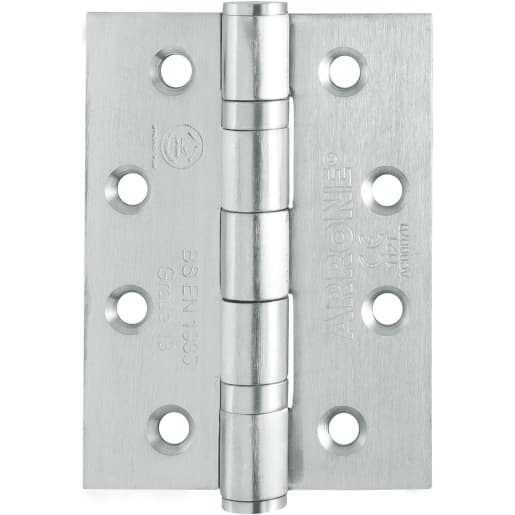

ARRONE Ball Bearing Butt Hinge Grade 13, 1.5 Pair 102 x 75 x 3mm Stainless Steel AR8187-SSS
SKU: HWAR8187
ARRONE Ball Bearing Hinges 102 x 75 x 3mm (L x W x T) made of stainless steel They are lubricated to ensure smooth operation of hinge leaves when fitted to doors. The standard size of the product provides dimensional accuracy. It conforms to BS EN 1935: 2002 and its fire safety is accredited with BS EN 1634-1. The hinges are lightweight and user-friendly. Arrone offers a comprehensive range of products designed for use within the commercial and residential door market. The brand is recognised for offering affordable quality hardware products.
Features & benefits
- Material: Stainless Steel
- Hinge Grade: Grade 13
- Shape: Square
- Unit of measure (pack size): Sold as 1.5 pairs
- Door weight: Suitable for doors weighing up to 120 kg
- Fixing: 16 x stainless steel pozidrive countersunk wood screws
- Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 ); BS EN 1634 Part 1. Assessed for use on 30, 60, 90 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
- CE Marked:
IDHWAR8187
Hinges, Seals & Intumescent > Hinges > Butt Hinges > ARRONE Ball Bearing Butt Hinge Grade 13, 1.5 Pair 102 x 75 x 3mm Stainless Steel AR8187-SSS
https://www.george-boyd.co.uk/p/arrone-ball-bearing-butt-hinge-grade-13-1-5-pair-102-x-75-x-3mm-stainless-steel-HWAR8187
ARRONE Ball Bearing Hinges 102 x 75 x 3mm (L x W x T) made of stainless steel They are lubricated to ensure smooth operation of hinge leaves when fitted to doors. The standard size of the product provides dimensional accuracy. It conforms to BS EN 1935: 2002 and its fire safety is accredited with BS EN 1634-1. The hinges are lightweight and user-friendly. Arrone offers a comprehensive range of products designed for use within the commercial and residential door market. The brand is recognised for offering affordable quality hardware products.
Features & benefits
- Material: Stainless Steel
- Hinge Grade: Grade 13
- Shape: Square
- Unit of measure (pack size): Sold as 1.5 pairs
- Door weight: Suitable for doors weighing up to 120 kg
- Fixing: 16 x stainless steel pozidrive countersunk wood screws
- Testing: BS EN 1935:2002 (Classification: 4 | 7 | 6 | 1* | 1 | 4 | 0 | 13 ); BS EN 1634 Part 1. Assessed for use on 30, 60, 90 and 120 minutes timber fire doors and 240 minutes on steel fire doors.
- CE Marked:
Specifications

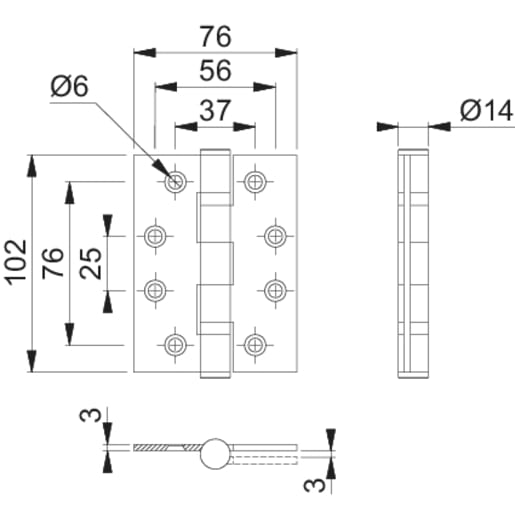

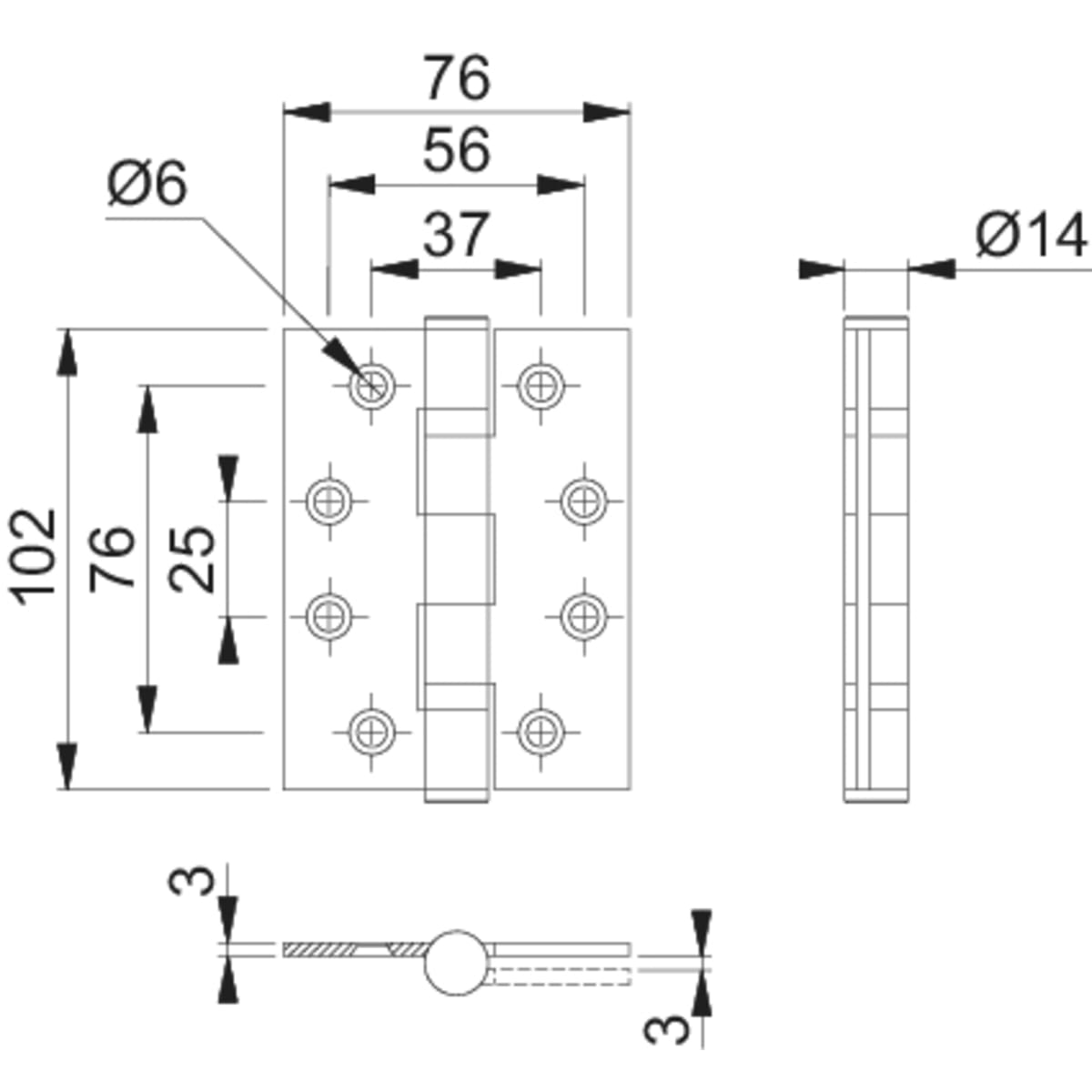

| Product Name | ARRONE Ball Bearing Butt Hinge Grade 13, 1.5 Pair 102 x 75 x 3mm Stainless Steel AR8187-SSS |
| Brand | AARONE |
| Product Type | Door Hardware |
| Manufacturer Name | Hoppe UK Ltd |
| Manufacturer Part Number | 87109450 |
| EAN | 5051358048362 |
| Compliance Approvals | ISO 14001 |
| Materials | Stainless Steel |
| Commercial Or Domestic Use | Both |
| Model Number | AR8187-SSS |
| Colour | Silver |
| Application | Interior |
| BS EN Fire rating/performance classifications | BS EN 1634 |
| Pack Quantity | 1 |
| Country Of Origin | China |
| Finish | Stainless Steel |
| Product Width | 75 mm |
| Product Weight | 0.58 kg |
| Product Length | 102 mm |
| Thickness | 3 mm |
| Body Base Material | Stainless Steel |
| Maximum Door weight | 120 kg |
