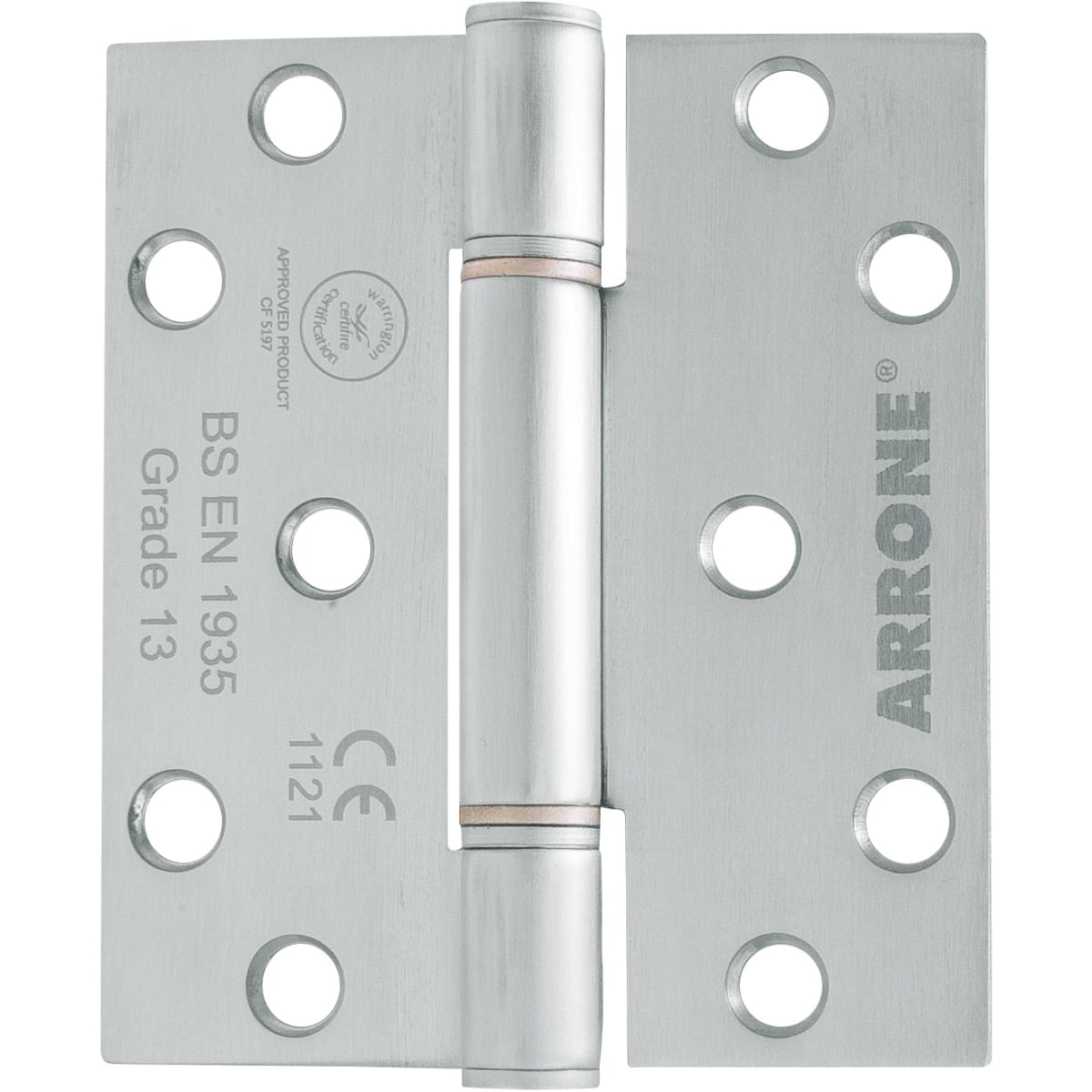

ARRONE Ball Bearing Hinges 100 x 88 x 3mm AR8380-SSS
SKU: H8739242
The ARRONE Ball Bearing Hinges 100 x 88 x 3mm is built to meet high standards of durability and performance. Crafted from stainless steel, it carries a Grade 13 hinge grade, signifying its robustness. This hinge is suitable for doors weighing up to 120 kg. Installation is made easy with 10 stainless steel pozidrive countersunk wood screws. This hinge has been rigorously tested and conforms to BS EN 1935:2002. It is also assessed for use on 30 and 60-minute timber fire doors; however, it's important to note that the use of an intumescent pack is required for fire door applications. This hinge bears the CE Marking (AC5027), Certifire approval (CF5197), and holds a Declaration of Performance (DOP: HUK0049), underscoring its compliance with industry standards. Designed for wooden doors, this hinge comes with 5 holes ANSI template drilled and countersunk for secure and convenient installation. The included 10 A1 grade stainless steel wood screws pozidrive further ensure its reliability. With dimensions measuring 100 x 88 x 3mm, this hinge is engineered to provide dependable performance in various door applications.
Features & benefits
- Grade 13 Stainless Steel
- Suitable for doors weiging up to 120 kg
- 1.5 pair
- Fixings included
IDH8739242
Hinges, Seals & Intumescent > Hinges > Ball Bearing Hinges > ARRONE Ball Bearing Hinges 100 x 88 x 3mm AR8380-SSS
https://www.george-boyd.co.uk/p/arrone-ball-bearing-hinges-100-x-88-x-3mm-H8739242
The ARRONE Ball Bearing Hinges 100 x 88 x 3mm is built to meet high standards of durability and performance. Crafted from stainless steel, it carries a Grade 13 hinge grade, signifying its robustness. This hinge is suitable for doors weighing up to 120 kg. Installation is made easy with 10 stainless steel pozidrive countersunk wood screws. This hinge has been rigorously tested and conforms to BS EN 1935:2002. It is also assessed for use on 30 and 60-minute timber fire doors; however, it's important to note that the use of an intumescent pack is required for fire door applications. This hinge bears the CE Marking (AC5027), Certifire approval (CF5197), and holds a Declaration of Performance (DOP: HUK0049), underscoring its compliance with industry standards. Designed for wooden doors, this hinge comes with 5 holes ANSI template drilled and countersunk for secure and convenient installation. The included 10 A1 grade stainless steel wood screws pozidrive further ensure its reliability. With dimensions measuring 100 x 88 x 3mm, this hinge is engineered to provide dependable performance in various door applications.
Features & benefits
- Grade 13 Stainless Steel
- Suitable for doors weiging up to 120 kg
- 1.5 pair
- Fixings included
Specifications
Product Name | ARRONE Ball Bearing Hinges 100 x 88 x 3mm AR8380-SSS |
Brand | Arrone |
Manufacturer Name | Hoppe UK Ltd |
Manufacturer Part Number | 87139242 |
EAN | 5051358069114 |
Materials | Stainless Steel |
Commercial Or Domestic Use | Both |
Pack Quantity | 1 |
Country Of Origin | China |
Finish | Stainless Steel |
Product Width | 88 mm |
Product Height | 100 mm |
