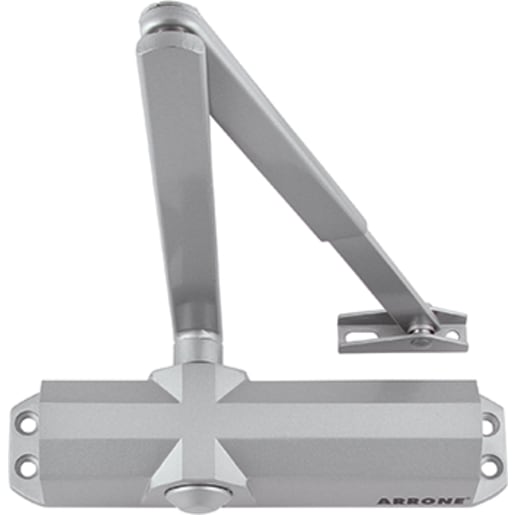

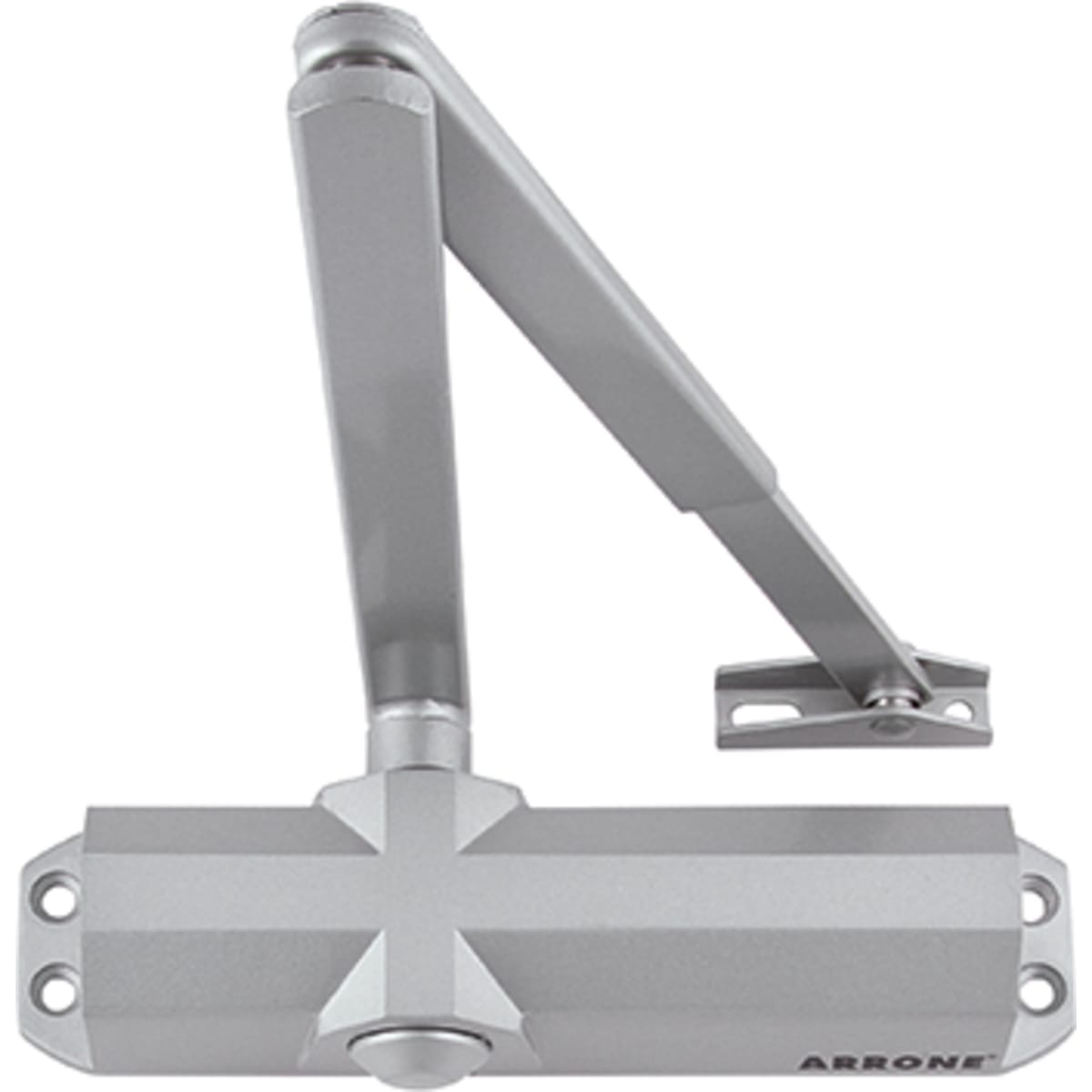

ARRONE Door Closing Device Power Size 2 to 4 Silver Finish AR6800-SE
SKU: HWAR68SE
The ARRONE AR6800-SE Size 2-4 Door Closer, an exceptional overhead closing device suitable for various door applications. With a power size of 2 to 4, adjustable by template, it provides reliable closing and latching functionality. This silver-finished closer is designed for wooden doors, with a maximum width of 1100mm and a weight capacity of 80kg. It has been successfully type tested and conforms to the requirements of BS EN1154:1997, and is CE Marked (Certificate 1121-CPD-AD0095), Certifire Approved (Certificate CF603), and comes with a CPR Declaration of Performance Certificate (HUK0025). The scissor arm, fixed joint, flat form, adjustable design ensures optimal performance. Fixings are included for timber doors.
Features & benefits
- Power size: 2 to 4 adjustable by template
- Function: Closing, latching
- Cover: no cover
- Maximum door width: 1,100 mm (Fig 1), 950 mm (Fig 6 and Fig 61)
- Maximum door weight: 80 kg (Fig 1), 60 kg (Fig 6 and Fig 61)
- Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
- Successfully type tested for conformity to all the requirements of BS EN 1154:1997 - Door mount pull (Fig 1), transom mount push (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 3 - Door mount push (Fig 6): 3 | 8 | 3 | 1* | 1 | 3
- Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.
- CE Marked: AD0095, UKCA Marked: AD7696
- Certifire approved: CF603, CE DOP: HUK0025, UKCA DOP: HUK0025-UK
IDHWAR68SE
Door Hardware & Closers > Door Closers & Panic Hardware > Overhead Door Closers > ARRONE Door Closing Device Power Size 2 to 4 Silver Finish AR6800-SE
https://www.george-boyd.co.uk/p/arrone-door-closing-device-silver-HWAR68SE
The ARRONE AR6800-SE Size 2-4 Door Closer, an exceptional overhead closing device suitable for various door applications. With a power size of 2 to 4, adjustable by template, it provides reliable closing and latching functionality. This silver-finished closer is designed for wooden doors, with a maximum width of 1100mm and a weight capacity of 80kg. It has been successfully type tested and conforms to the requirements of BS EN1154:1997, and is CE Marked (Certificate 1121-CPD-AD0095), Certifire Approved (Certificate CF603), and comes with a CPR Declaration of Performance Certificate (HUK0025). The scissor arm, fixed joint, flat form, adjustable design ensures optimal performance. Fixings are included for timber doors.
Features & benefits
- Power size: 2 to 4 adjustable by template
- Function: Closing, latching
- Cover: no cover
- Maximum door width: 1,100 mm (Fig 1), 950 mm (Fig 6 and Fig 61)
- Maximum door weight: 80 kg (Fig 1), 60 kg (Fig 6 and Fig 61)
- Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
- Successfully type tested for conformity to all the requirements of BS EN 1154:1997 - Door mount pull (Fig 1), transom mount push (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 3 - Door mount push (Fig 6): 3 | 8 | 3 | 1* | 1 | 3
- Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.
- CE Marked: AD0095, UKCA Marked: AD7696
- Certifire approved: CF603, CE DOP: HUK0025, UKCA DOP: HUK0025-UK
Specifications
| Product Name | ARRONE Door Closing Device Power Size 2 to 4 Silver Finish AR6800-SE |
| Brand | ARRONE |
| Product Type | Door Hardware |
| Manufacturer Name | Hoppe (UK) Ltd |
| Manufacturer Part Number | 87105960 |
| EAN | 5051358027213 |
| Compliance Approvals | CE Marked |
| Materials | Aluminium |
| Commercial Or Domestic Use | Commercial |
| Model Number | AR6800-SE |
| Colour | Silver |
| Application | Interior |
| BS EN Fire rating/performance classifications | BS EN 1634 |
| Pack Quantity | 1 |
| Country Of Origin | Taiwan |
| Applicable Standards | BS EN 1154:1997 |
| Finish | Silver Enamel |

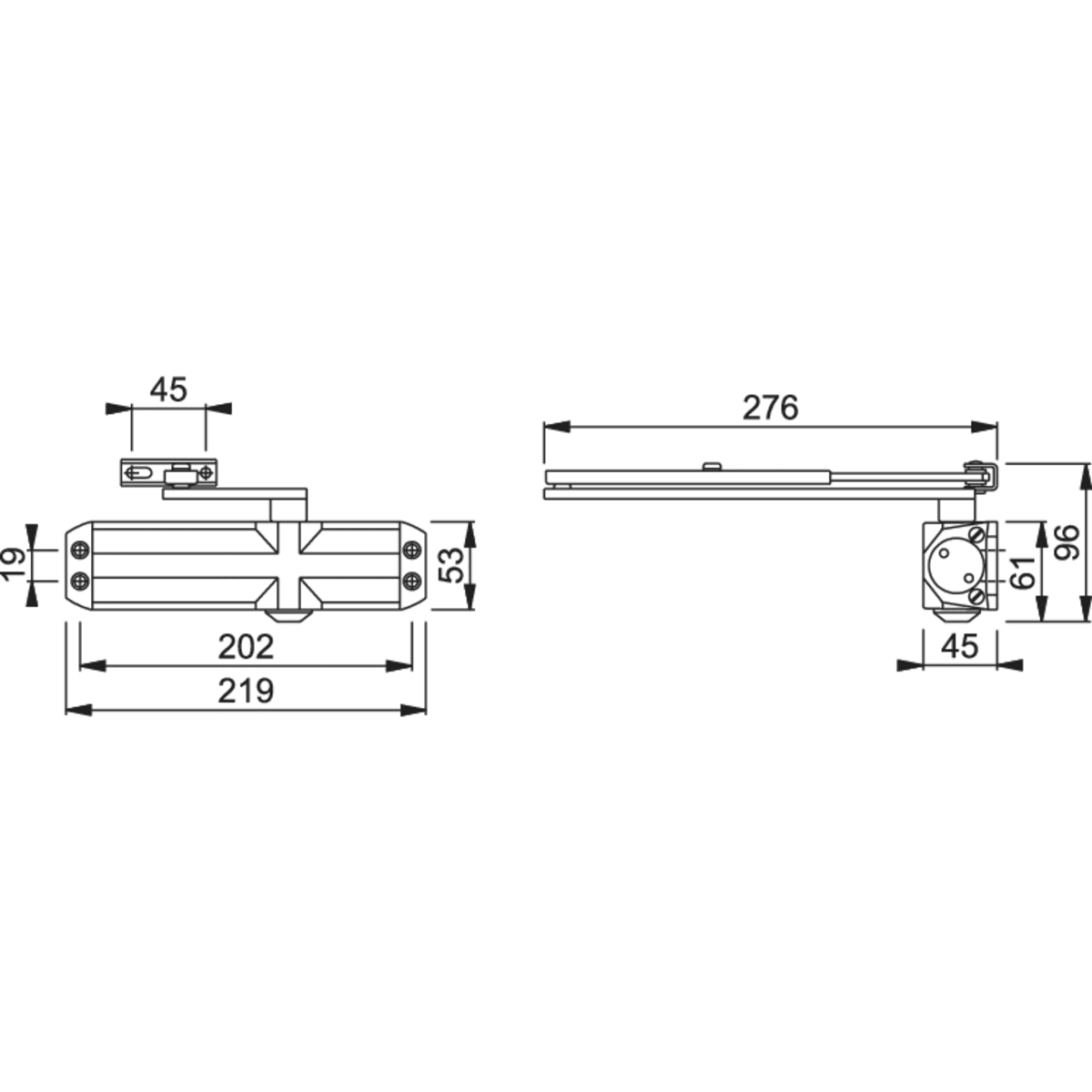

| Product Width | 45 mm |
| Product Weight | 1.852 kg |
| Product Height | 96 mm |
| Product Length | 219 mm |
| Hold Open | No |
| Backcheck | No |
| Arm Finish | Silver |
| Arm Colour | Silver |
| Maximum Door width | 1100 mm |
| Maximum Door weight | 80 kg |
| Power Size | size2-4 |
| Closer Mechanism | rack_and_pinion |
