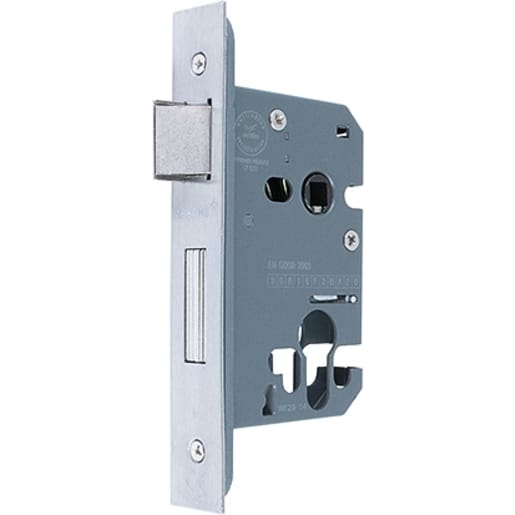

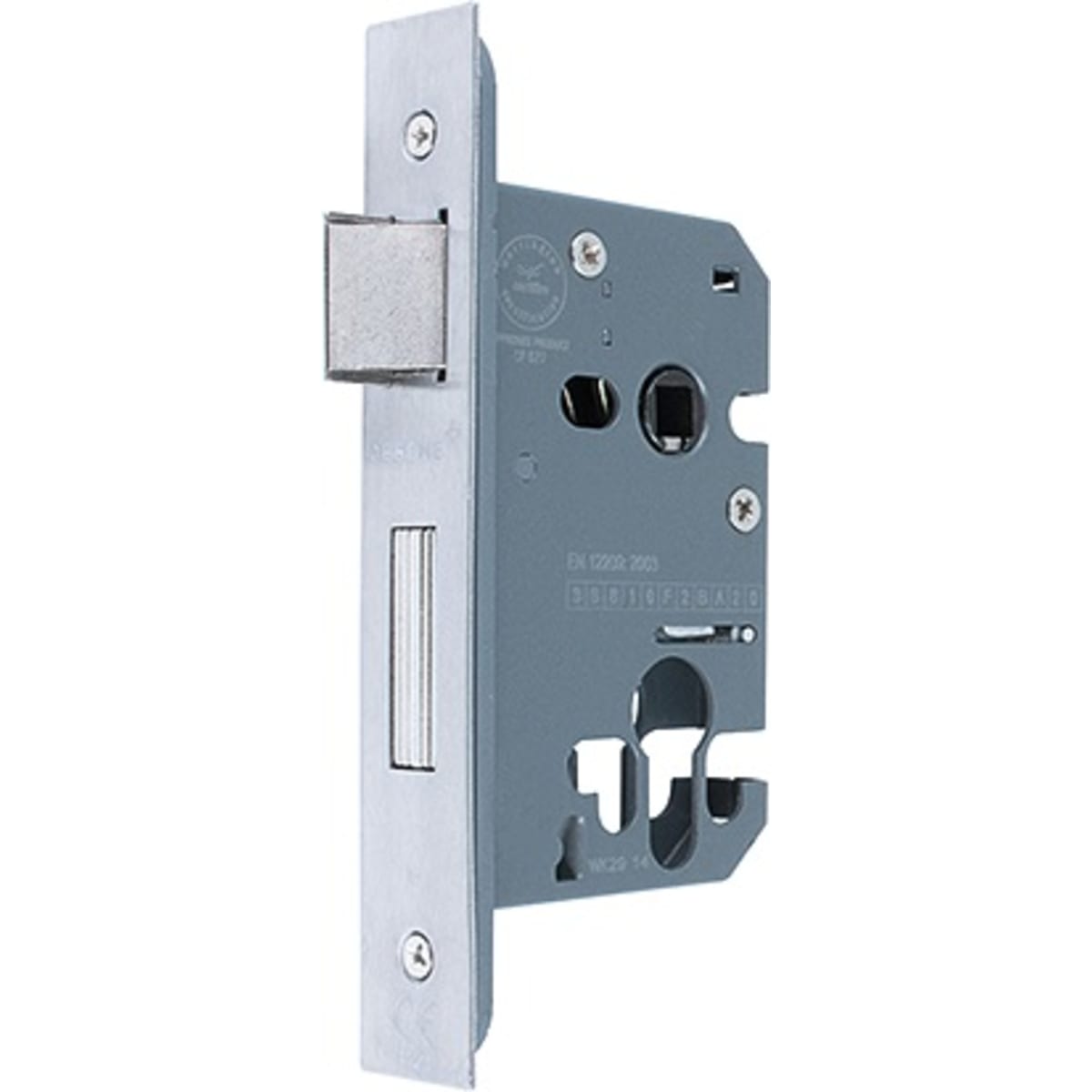

Arrone Euro Profile Mortice Sashlock Case 156 x 67 x 25mm Satin Chrome AR8004-63-SC
SKU: HWHOPA11
Arrone Euro Profile Mortice Sashlock Case 156 x 67 x 25mm (H x W x D) Satin Chrome is manufactured from steel. Suitable for sprung and some light unsprung lever furniture. It comes with 20mm laminated deadbolt projection for additional strength and security. Case pierced to accept bolt through and escutcheons at 38mm horizontal centres.
Features & benefits
- Forend/strike material: Stainless steel Finish prevents tarnishing
- Corrosion resistant
- Function: Latch bolt and deadbolt operation
- Certifire approved: CF577; DOP: HUK0040 - BS EN 12209
- Testing: BS EN 1634-1. Assessed for use on 60 minute timber fire doors.
- The AR8003, AR8004 series lock case has been successfully fire tested with the use of an intumescent kit.

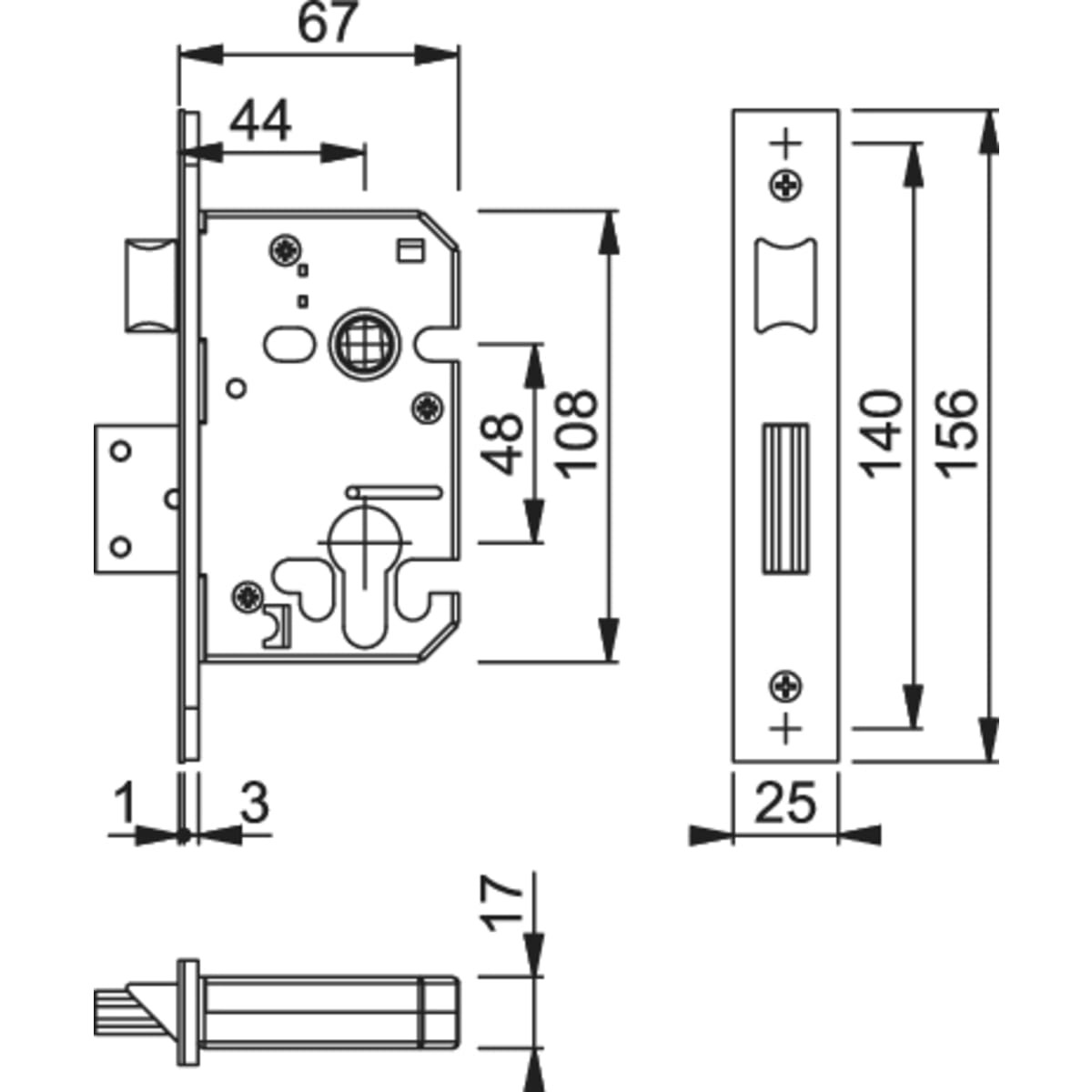

- Backset 44 mm, pierced for furniture and escutcheons at 38 mm centres
IDHWHOPA11
Locks & Security > Locks, Latches & Cylinders > Rim Locks & Latches > Arrone Euro Profile Mortice Sashlock Case 156 x 67 x 25mm Satin Chrome AR8004-63-SC
https://www.george-boyd.co.uk/p/arrone-euro-profile-mortice-sashlock-case-156-x-67-x-25mm-HWHOPA11
Arrone Euro Profile Mortice Sashlock Case 156 x 67 x 25mm (H x W x D) Satin Chrome is manufactured from steel. Suitable for sprung and some light unsprung lever furniture. It comes with 20mm laminated deadbolt projection for additional strength and security. Case pierced to accept bolt through and escutcheons at 38mm horizontal centres.
Features & benefits
- Forend/strike material: Stainless steel Finish prevents tarnishing
- Corrosion resistant
- Function: Latch bolt and deadbolt operation
- Certifire approved: CF577; DOP: HUK0040 - BS EN 12209
- Testing: BS EN 1634-1. Assessed for use on 60 minute timber fire doors.
- The AR8003, AR8004 series lock case has been successfully fire tested with the use of an intumescent kit.
- Backset 44 mm, pierced for furniture and escutcheons at 38 mm centres
Specifications
| Product Name | Arrone Euro Profile Mortice Sashlock Case 156 x 67 x 25mm Satin Chrome AR8004-63-SC |
| Brand | Arrone |
| Product Type | Door Hardware |
| Manufacturer Name | Hoppe UK Ltd |
| Manufacturer Part Number | 87142770 |
| EAN | 5051358075238 |
| Compliance Approvals | CE Marked |
| Materials | Steel |
| Commercial Or Domestic Use | Both |
| Model Number | AR8004-63-SC |
| Application | Interior/External |
| BS EN Fire rating/performance classifications | BS EN 1634 |
| Pack Quantity | 1 |
| Country Of Origin | China |
| Applicable Standards | BS EN 12209: |
| Finish | Satin Chrome |
| Recyclable | Yes |
| Product Width | 17 mm |
| Product Weight | 0.57 kg |
| Product Length | 108 mm |
| Product Depth | 67 mm |
| Forend Colour | Silver |
| Centres | 47.6 mm |
