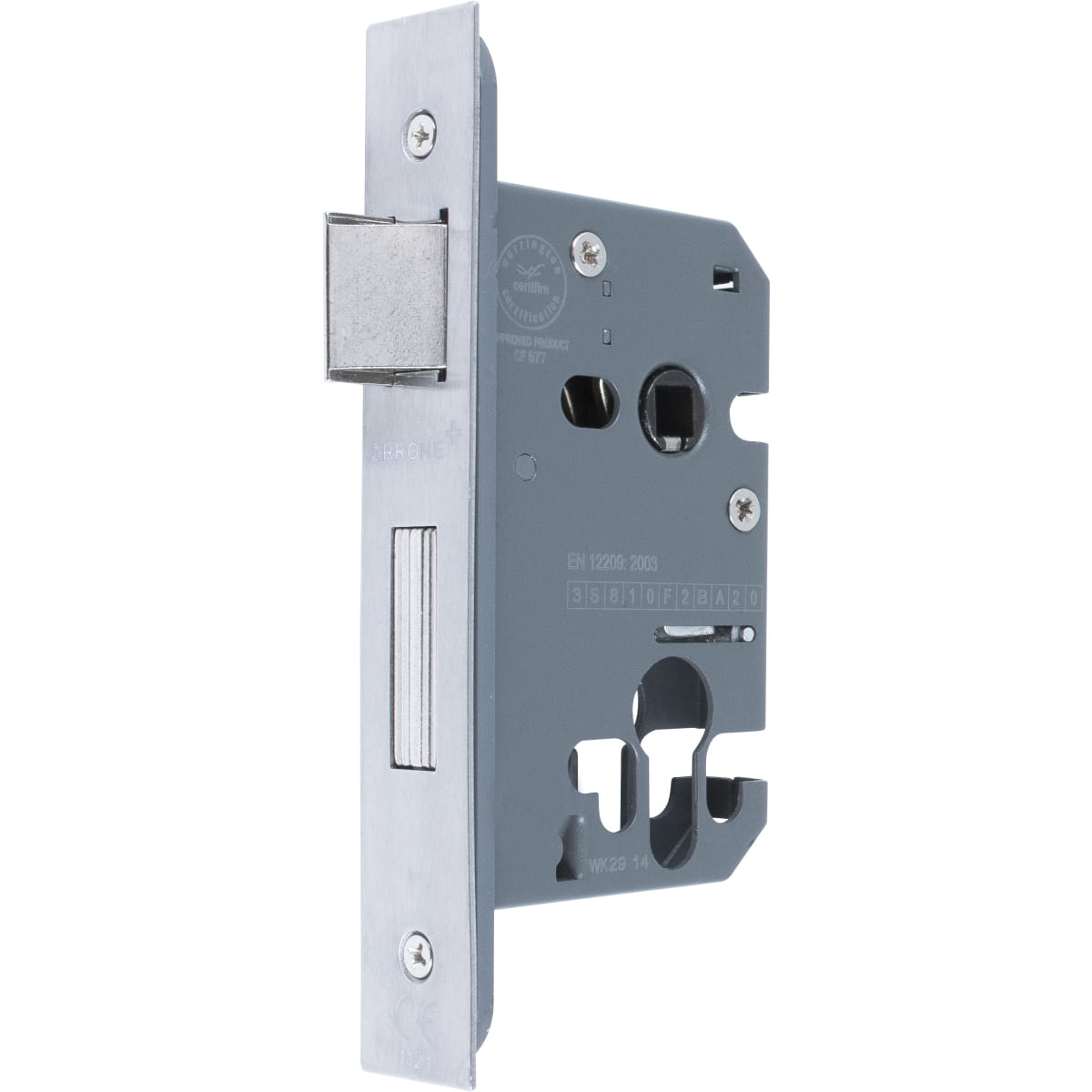

Arrone Mortice Sashlock Case Stainless Steel 63mm AR8004-63-SC
SKU: H8742770

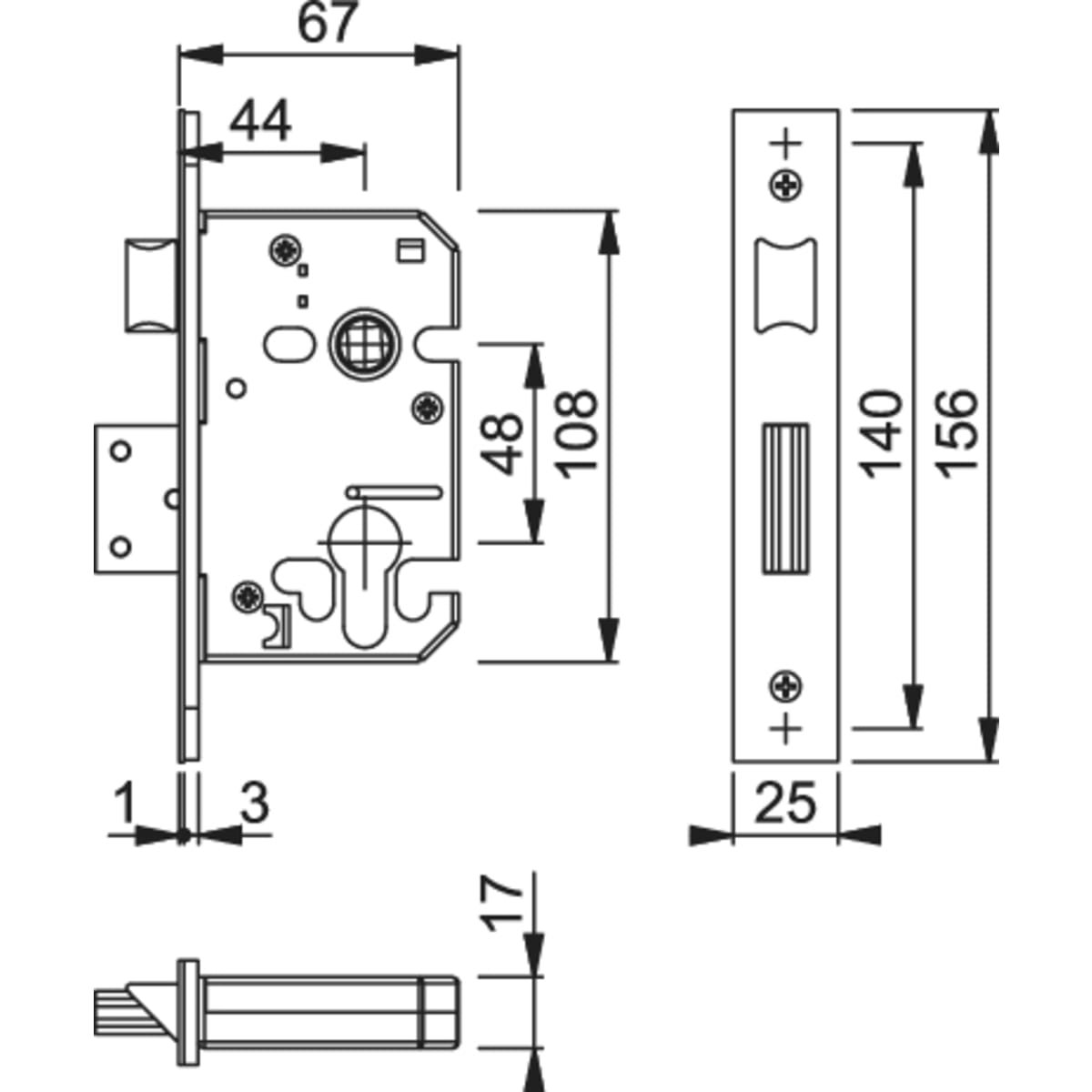

The Arrone Mortice Sashlock Case Stainless Steel 63mm is a sophisticated solution for latchbolt and deadbolt operation. Crafted for strength, this sashlock case features a stainless steel forend/strike material in a double configuration. It's marked with CE (Certificate: 1121-CPR-AG0097) and Certifire approval (CF577) with a DOP (HUK0040), in compliance with BS EN 12209 standards. Tested to BS EN 1634-1, it's suitable for use on 60-minute timber fire doors. Note the requirement of an intumescent kit for fire test compliance and CE marking evidence. The case is pierced for furniture and escutcheons at 38mm centres, with a 44mm backset. The case size is 67mm depth, 108mm length, and 17mm width, ensuring both safety and aesthetics for your door.
Features & benefits
- CE Marked
- Pierced to accept bolt through furniture
- Stainless steel forend/strike material
- Not supplied with cylinder
IDH8742770
Locks & Security > Locks, Latches & Cylinders > Mortice Locks > Arrone Mortice Sashlock Case Stainless Steel 63mm AR8004-63-SC
https://www.george-boyd.co.uk/p/arrone-mortice-sashlock-case-stainless-steel-63mm-H8742770
The Arrone Mortice Sashlock Case Stainless Steel 63mm is a sophisticated solution for latchbolt and deadbolt operation. Crafted for strength, this sashlock case features a stainless steel forend/strike material in a double configuration. It's marked with CE (Certificate: 1121-CPR-AG0097) and Certifire approval (CF577) with a DOP (HUK0040), in compliance with BS EN 12209 standards. Tested to BS EN 1634-1, it's suitable for use on 60-minute timber fire doors. Note the requirement of an intumescent kit for fire test compliance and CE marking evidence. The case is pierced for furniture and escutcheons at 38mm centres, with a 44mm backset. The case size is 67mm depth, 108mm length, and 17mm width, ensuring both safety and aesthetics for your door.
Features & benefits
- CE Marked
- Pierced to accept bolt through furniture
- Stainless steel forend/strike material
- Not supplied with cylinder
Specifications
| Product Name | Arrone Mortice Sashlock Case Stainless Steel 63mm AR8004-63-SC |
| Brand | Arrone |
| Product Type | Lock Case |
| Manufacturer Name | Hoppe UK Ltd |
| Manufacturer Part Number | 87142770 |
| EAN | 5051358075238 |
| Commercial Or Domestic Use | Commercial |
| Pack Quantity | 1 |
| Country Of Origin | China |
| Finish | Stainless Steel |
| Product Width | 67 mm |
| Product Height | 108 mm |
| Thickness | 17 mm |
