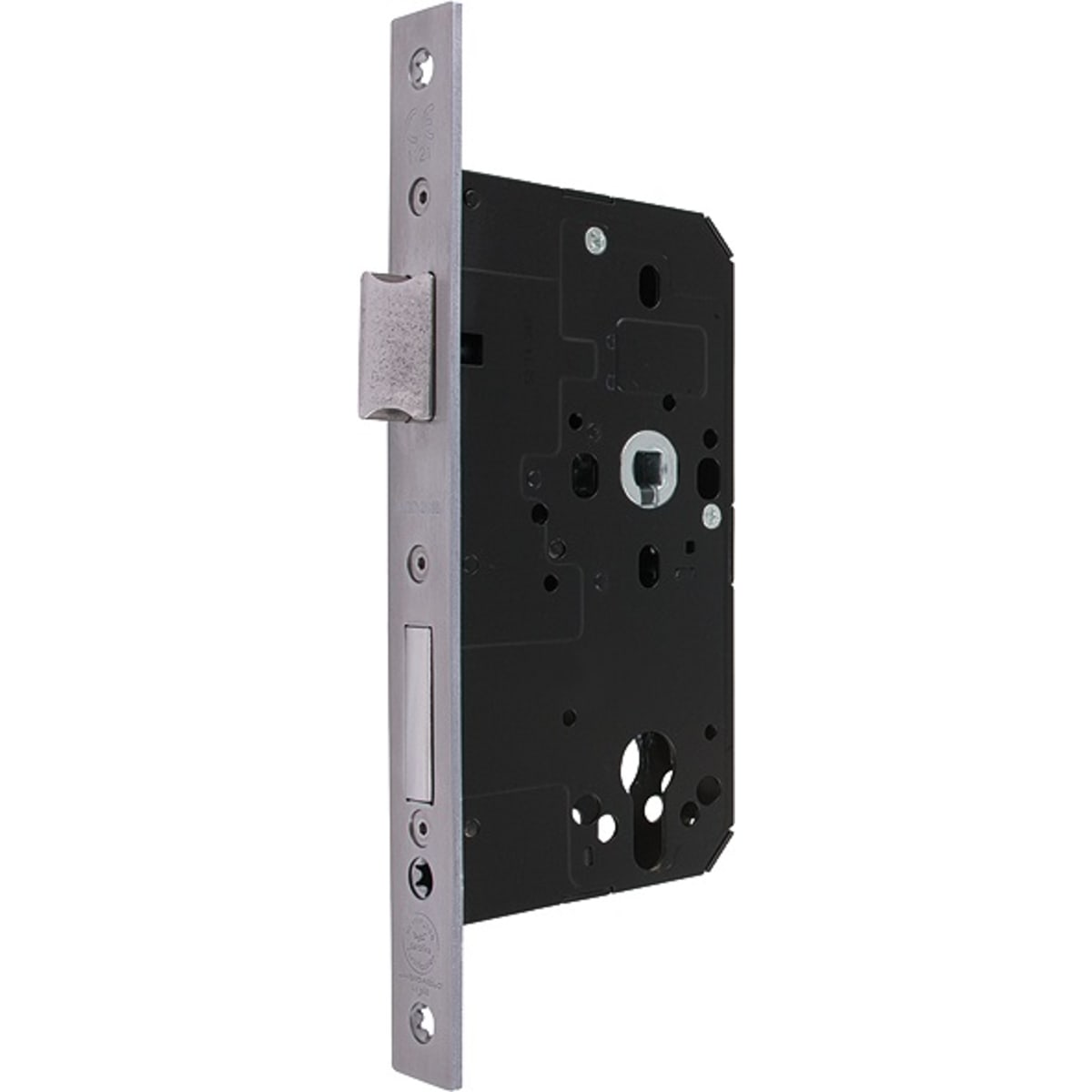

Arrone Standard Euro Profile Mortice Sashlock 165 x 16 x 88mm Satin Stainless Steel
SKU: HWHOPA17
Arrone Standard Euro Profile Mortice Sashlock 165 x 16 x 88mm (L x W x D) Satin Stainless Steel is manufactured from steel. The sashlocks also have an easily reversible radius latch that is operated from either side by a lever handle. It comes with 21mm deadbolt projection for additional strength and security.
Features & benefits
- Function: Latch bolt and deadbolt operation. Not supplied with cylinder
- Deadbolt projection: 21 mm, single throw
- Forend/strike material: Stainless steel
- Forend type: Single
- CE Marked: AG0067, UKCA Marked: AG7668 - BS EN 12209
- Testing: BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minutes steel fire doors.
- Meets dimensional recommendations of BS 8300 and ADM for locks
- The AR910 series lock case has been successfully fire tested with the use of an intumescent kit.
- 60 mm, pierced for furniture and es-cutcheons at 38 mm centres
- Key hole distance 72 mm
IDHWHOPA17
Locks & Security > Locks, Latches & Cylinders > Mortice Locks > Arrone Standard Euro Profile Mortice Sashlock 165 x 16 x 88mm Satin Stainless Steel
https://www.george-boyd.co.uk/p/arrone-standard-euro-profile-mortice-sashlock-165-x-16-x-88mm-HWHOPA17
Arrone Standard Euro Profile Mortice Sashlock 165 x 16 x 88mm (L x W x D) Satin Stainless Steel is manufactured from steel. The sashlocks also have an easily reversible radius latch that is operated from either side by a lever handle. It comes with 21mm deadbolt projection for additional strength and security.
Features & benefits
- Function: Latch bolt and deadbolt operation. Not supplied with cylinder
- Deadbolt projection: 21 mm, single throw
- Forend/strike material: Stainless steel
- Forend type: Single
- CE Marked: AG0067, UKCA Marked: AG7668 - BS EN 12209
- Testing: BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minutes steel fire doors.
- Meets dimensional recommendations of BS 8300 and ADM for locks
- The AR910 series lock case has been successfully fire tested with the use of an intumescent kit.
- 60 mm, pierced for furniture and es-cutcheons at 38 mm centres
- Key hole distance 72 mm
Specifications
| Product Name | Arrone Standard Euro Profile Mortice Sashlock 165 x 16 x 88mm Satin Stainless Steel |
| Brand | Arrone |
| Product Type | Lock Case |
| Manufacturer Name | Hoppe UK Ltd |
| Manufacturer Part Number | 87107853 |
| EAN | 5051358034426 |
| Compliance Approvals | CE Marked |
| Materials | Steel |
| Commercial Or Domestic Use | Both |
| Range | Euro |
| Model Number | AR910-S-60-SSS |
| Application | Interior/External |
| BS EN Fire rating/performance classifications | BS EN 1634 |
| Pack Quantity | 1 |
| Country Of Origin | Portugal |
| Applicable Standards | BS EN 12209: |
| Finish | Satin Stainless Steel |
| Recyclable | Yes |
| Product Width | 24 mm |
| Product Weight | 0.82 kg |
| Product Length | 88 mm |
| Bolt Through Fixing | Yes |
| Forend Colour | Silver |
| Centres | 72 mm |
| Case Size | 88 mm |
| Bolt Throw | 21 mm |
