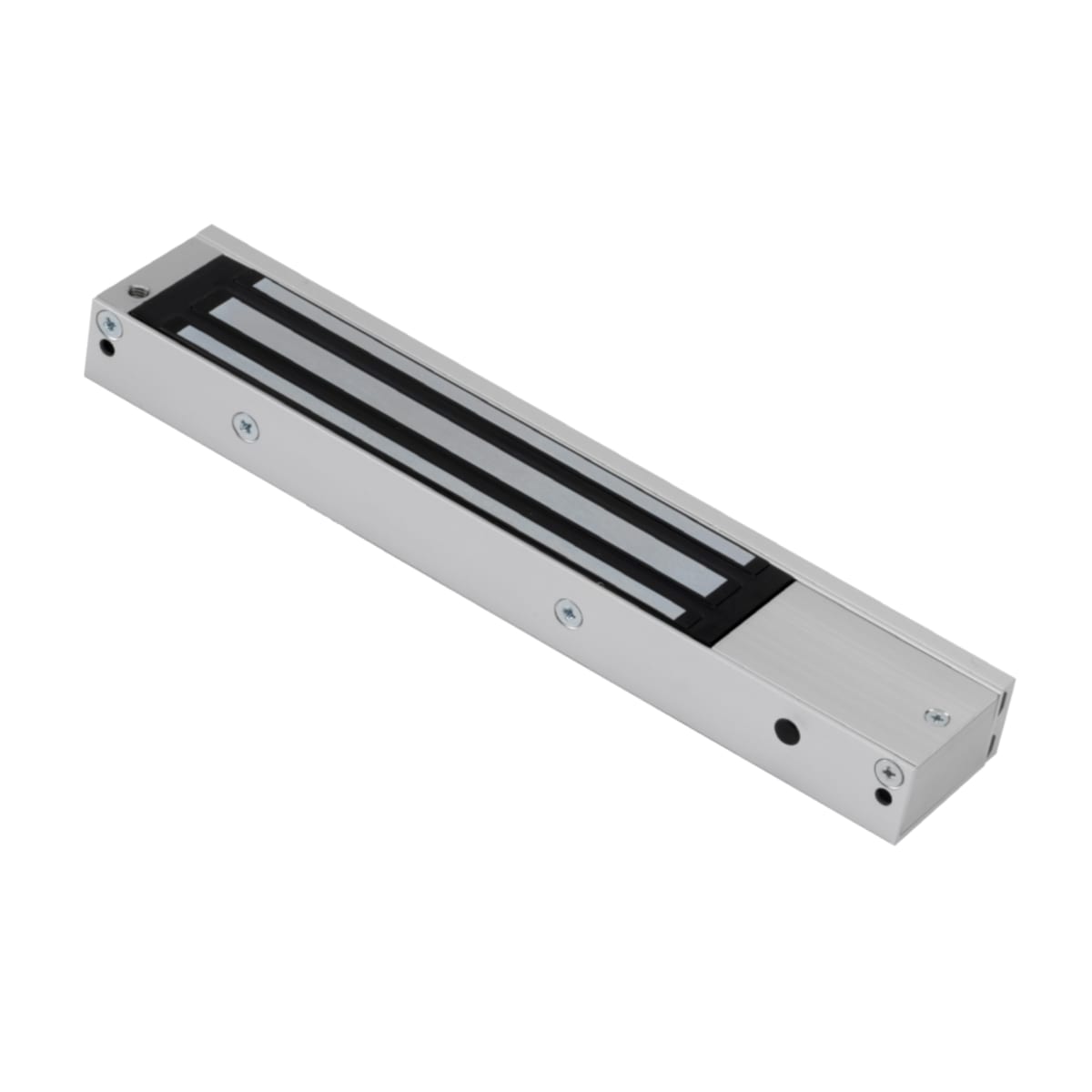

ASEC Slim Line Single Magnet - 12/24VDC Unmonitored
SKU: AS012257
Designed for single door applications, this slim line magnet with alectro-less nickel plated armature and aluminium housing is available both monitored or unmonitored. It has a holding force up to 600lbs (272kg) and the input voltage is switchable between 12V DC or 24V DC.
Features & benefits
- Holding force up to 600lbs (272kg)
- Operating voltage 12/24Vdc (Selectable)
- Electro-less nickel plated armature
- Aluminium housing
- LED Status (Red/Green) - Monitored version
- Monitored version - Magnetic bond sensor monitor output remotely monitors the door lock or unlock status (N.C output - door opened; N.O output - door closed. (SPDT rated 0.25a at 12Vdc)
- Fail Safe - Power to lock
IDAS012257
Locks & Security > Locks, Latches & Cylinders > Access Control > ASEC Slim Line Single Magnet - 12/24VDC Unmonitored
https://www.george-boyd.co.uk/p/asec-slim-line-single-magnet-1224vdc-unmonitored-AS012257
Designed for single door applications, this slim line magnet with alectro-less nickel plated armature and aluminium housing is available both monitored or unmonitored. It has a holding force up to 600lbs (272kg) and the input voltage is switchable between 12V DC or 24V DC.
Features & benefits
- Holding force up to 600lbs (272kg)
- Operating voltage 12/24Vdc (Selectable)
- Electro-less nickel plated armature
- Aluminium housing
- LED Status (Red/Green) - Monitored version
- Monitored version - Magnetic bond sensor monitor output remotely monitors the door lock or unlock status (N.C output - door opened; N.O output - door closed. (SPDT rated 0.25a at 12Vdc)
- Fail Safe - Power to lock
Specifications
| Product Name | ASEC Slim Line Single Magnet - 12/24VDC Unmonitored |
| Brand | Asec |
| Product Type | Electric Locking |
| Manufacturer Part Number | AS12257 |
| EAN | 5056240125039 |
| Pack Quantity | 1 |
| Product Width | 25 cm |
| Product Weight | 1.9 kg |
| Product Height | 26 mm |
| Product Length | 42 mm |
