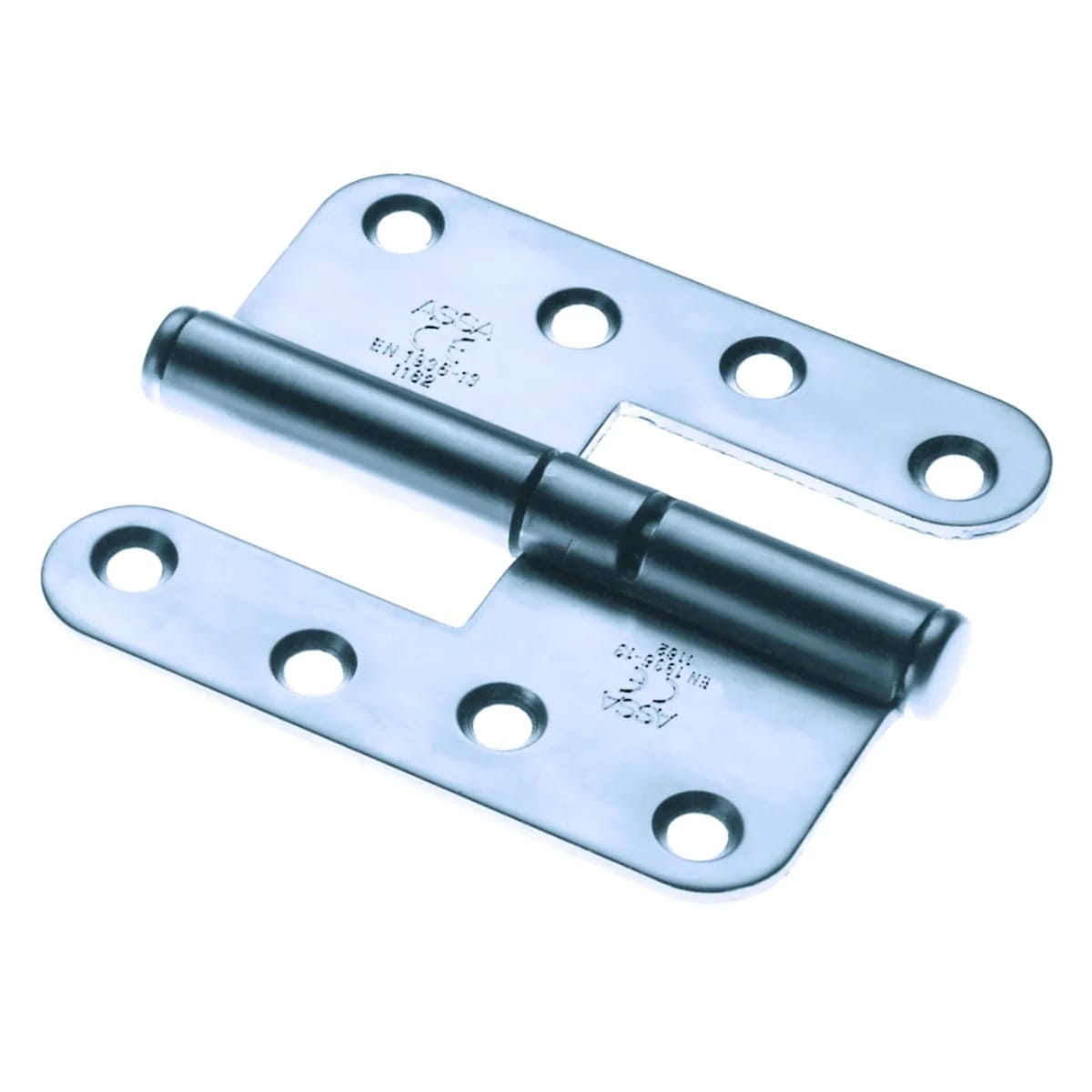

Assa Abloy 3228 Grade-13 Right Hand Hinge 110mm Bright Zinc Plated
SKU: HWAF2740

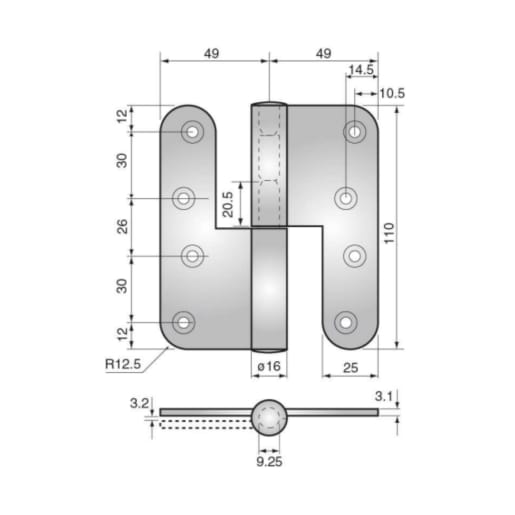

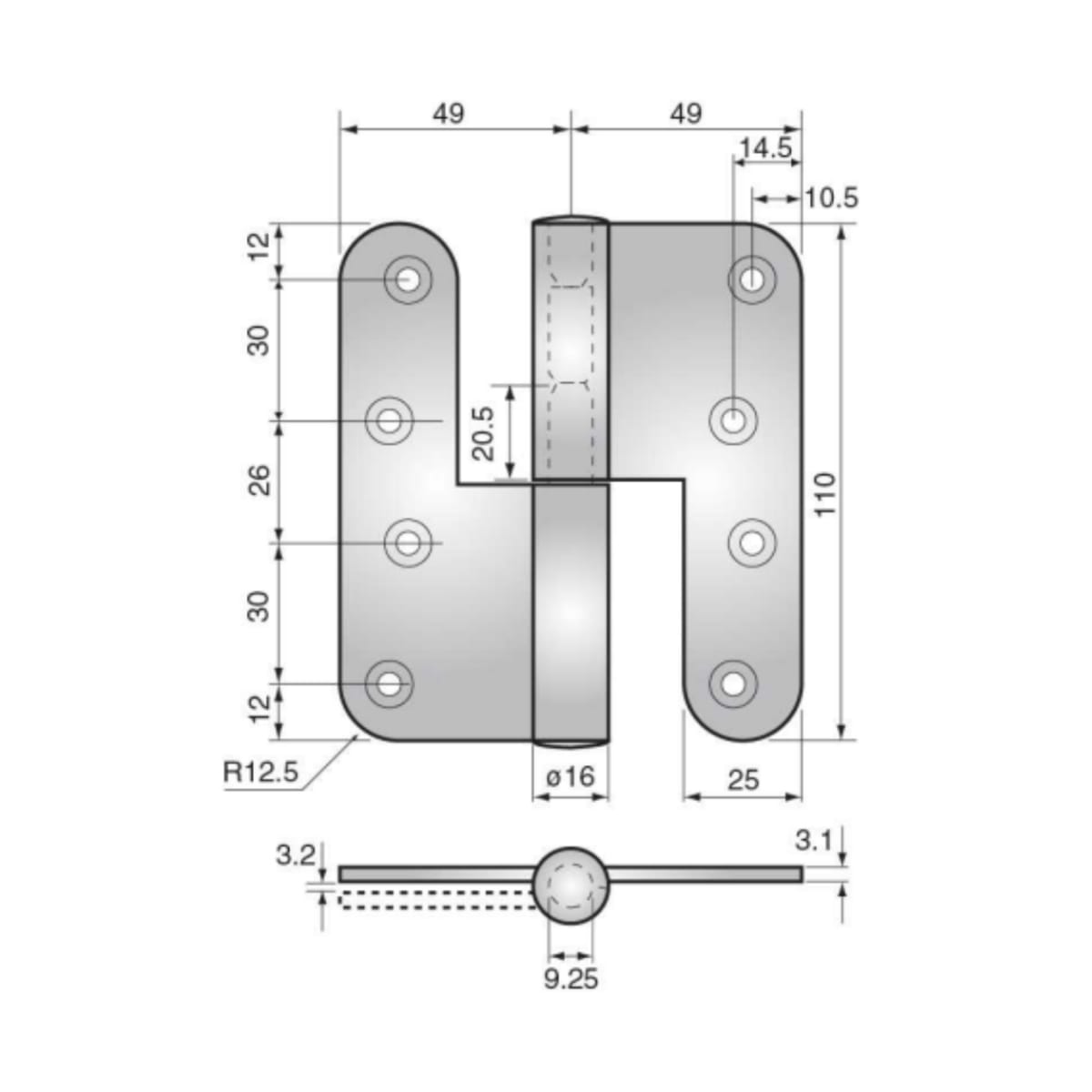

Assa Abloy 3228 Fire Door Hinge Grade 13 110 x 98 x 16mm (H x D x W) Right Hand Bright Zinc Plated is ideal for applications where security and attack resistance is important. A unique design Grade 13 journal supported half leaf lift-off hinge, suitable for doors up to 120kg and 28mm thick. Tested and approved to BS EN 1935, CE Grade 13 (severe duty).
Features & benefits
- Corrosion resistant
- Maximum door weight: 120kg
- Made from CS4 grade rolled mild steel
- Supplied with threaded countersunk wood screws
IDHWAF2740
Hinges, Seals & Intumescent > Hinges > Assa Hinges > Assa Abloy 3228 Grade-13 Right Hand Hinge 110mm Bright Zinc Plated
https://www.george-boyd.co.uk/p/assa-abloy-journal-supported-grade-13-hinge-3-2mm-t-bright-zinc-plated-HWAF2740
Assa Abloy 3228 Fire Door Hinge Grade 13 110 x 98 x 16mm (H x D x W) Right Hand Bright Zinc Plated is ideal for applications where security and attack resistance is important. A unique design Grade 13 journal supported half leaf lift-off hinge, suitable for doors up to 120kg and 28mm thick. Tested and approved to BS EN 1935, CE Grade 13 (severe duty).
Features & benefits
- Corrosion resistant
- Maximum door weight: 120kg
- Made from CS4 grade rolled mild steel
- Supplied with threaded countersunk wood screws
Specifications
| Product Name | Assa Abloy 3228 Grade-13 Right Hand Hinge 110mm Bright Zinc Plated |
| Brand | Assa Abloy |
| Manufacturer Name | Assa Abloy |
| Manufacturer Part Number | 80967710357 |
| Compliance Approvals | ISO 14001 |
| Warranty Period | 10 years |
| Materials | Steel |
| Commercial Or Domestic Use | Both |
| Range | Door Hinges |
| Colour Family | Metals |
| Application | Interior/External |
| Pack Quantity | 1 |
| Country Of Origin | Sweden |
| Applicable Standards | ISO 9001 |
| Finish | Bright Zinc Plated |
| Product Width | 98 mm |
| Product Length | 110 mm |
| Thickness | 3.2 mm |
