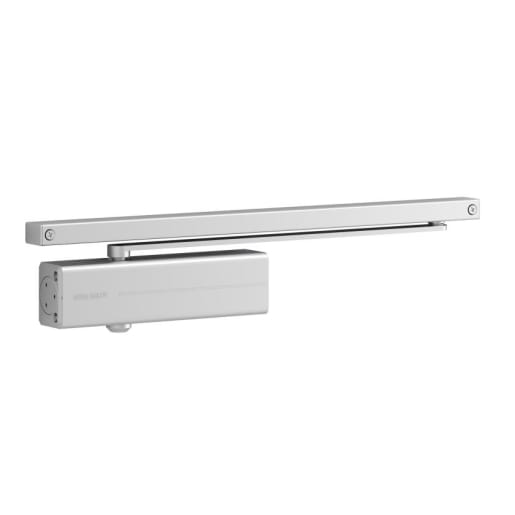

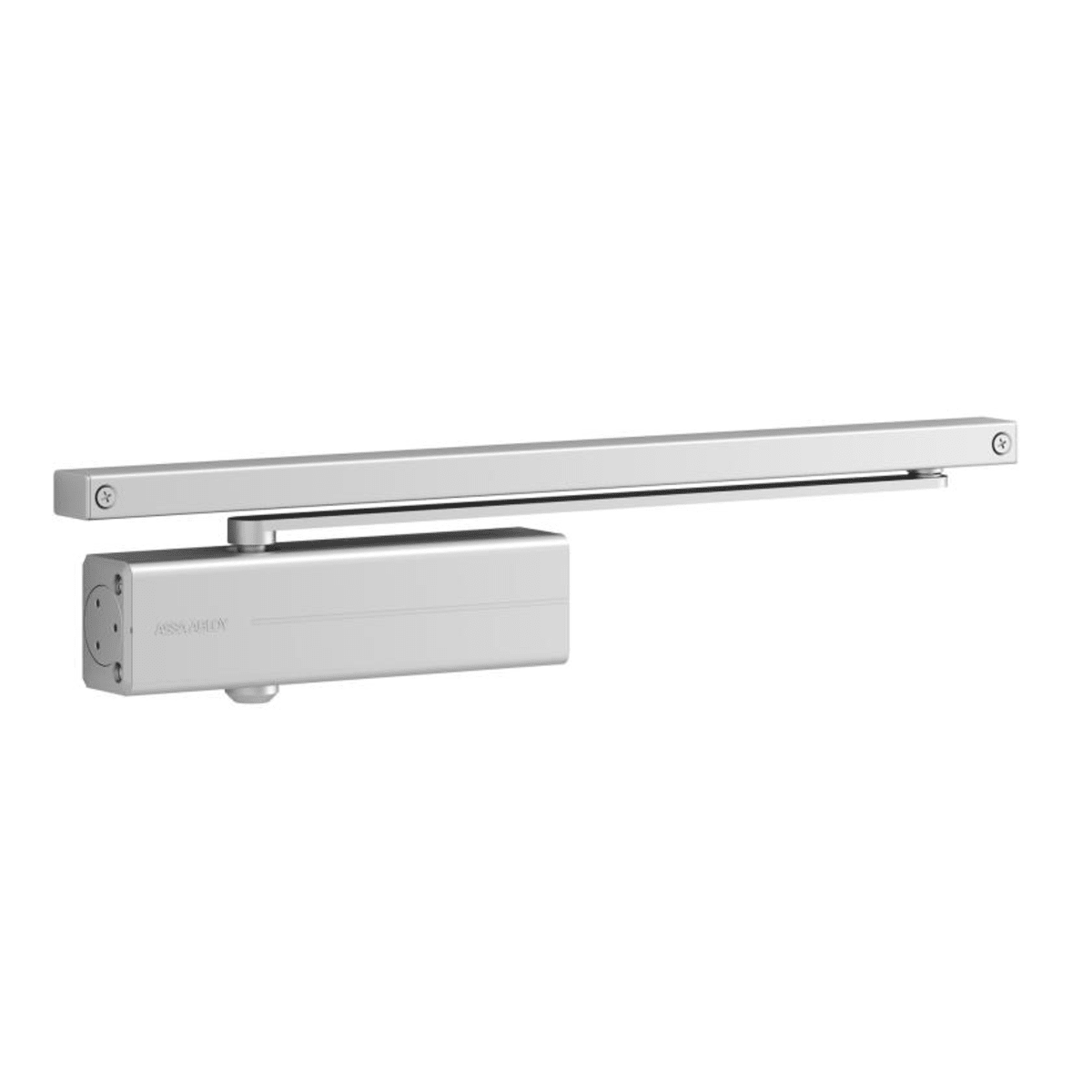

Assa Door Closer Fixed Size 3 with Backcheck and Guide Rail
SKU: ASSA135A
Assa Abloy Door Closer Fixed Size 3 with Backcheck and Guide Rail Silver features three speed control valves: final stroke speed, opening brake and control of closing speed. Ideal for use with left or right handed doors and single action doors up to 950mm. Thermodynamic valves provide consistent performance.
Features & benefits
- Suitable for fire and smoke protection doors
- Ideal for use with medium and high traffic use doors
- Suitable for use with single action doors up to 950mm
- Tested for use up to 500, 000 open and close cycles
- Tested to BS EN1154 and Certifire approved
IDASSA135A
Doors & Windows > Door Closers & Panic Hardware > Overhead Door Closers > Assa Door Closer Fixed Size 3 with Backcheck and Guide Rail
https://www.george-boyd.co.uk/p/assa-abloy-rack-and-pinion-door-closer-with-guide-rail-size-3-silver-ASSA135A
Assa Abloy Door Closer Fixed Size 3 with Backcheck and Guide Rail Silver features three speed control valves: final stroke speed, opening brake and control of closing speed. Ideal for use with left or right handed doors and single action doors up to 950mm. Thermodynamic valves provide consistent performance.
Features & benefits
- Suitable for fire and smoke protection doors
- Ideal for use with medium and high traffic use doors
- Suitable for use with single action doors up to 950mm
- Tested for use up to 500, 000 open and close cycles
- Tested to BS EN1154 and Certifire approved
Specifications
| Product Name | Assa Door Closer Fixed Size 3 with Backcheck and Guide Rail |
| Brand | Assa Abloy |
| Manufacturer Name | Assa Abloy |
| Manufacturer Part Number | DC135A |
| EAN | 3037231502000 |
| Compliance Approvals | ISO 9001 |
| Materials | Aluminium |
| Commercial Or Domestic Use | Both |
| Range | Door Closers |
| Model Number | DC135A |
| Colour Family | Metals |
| Application | Interior/External |
| Fire Resistance Rating | FD60 |
| Pack Quantity | 1 |
| Country Of Origin | Sweden |
| Applicable Standards | BS EN 1154 |
| Finish | Silver |
| Product Weight | 2.4 kg |
| Product Height | 60 mm |
| Product Length | 233 mm |
| Product Depth | 44 mm |
