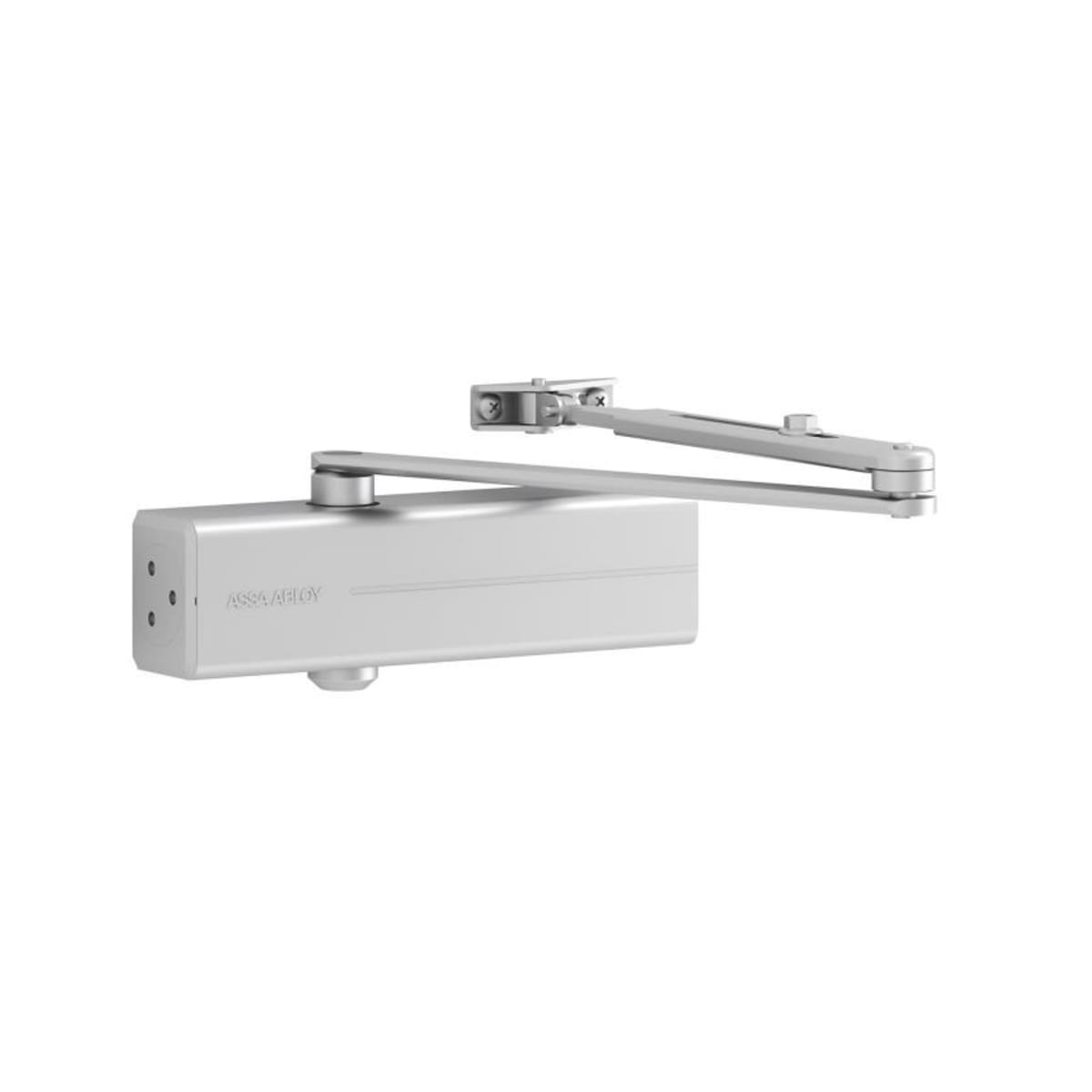

Assa Abloy DC140 EN 2-5 Door Closer With Link Arm
SKU: ASSA140A
Assa Abloy Door Closer Template Size 2-5 with Backcheck Silver features a hinged arm with a force regulation mechanism and is suitable for doors up to 1250mm wide. Three speed control valves. The closing speed can be controlled, as can the speed of the final stroke and brake at the opening. Thermodynamic valves provide consistent performance.
Features & benefits
- Assists the overall doorset in meeting the requirements of BS 8300
- Backcheck feature offers optimum protection for doors and walls
- Ideal for the half leaf door of leaf and a half doorsets
- Favourably priced, reliable closer model for standard door applications
- Suitable for fire and smoke protection doors
- Ideal for use with medium and high traffic use doors
- Suitable for use with single action doors up to 1250mm
- Tested for use up to 500, 000 open and close cycles
- Tested to BS EN1154 and Certifire approved
IDASSA140A
Door Hardware & Closers > Door Closers & Panic Hardware > Overhead Door Closers > Assa Abloy DC140 EN 2-5 Door Closer With Link Arm
https://www.george-boyd.co.uk/p/assa-abloy-rack-and-pinion-door-closer-with-link-arm-233-x-55-x-40mm-ASSA140A
£94.07
inc VAT, Each
78.39
http://schema.org/InStock
| Quantity | Price per item |
|---|---|
| 1 | £94.07 |
| 2-5 | £89.36 |
| 6+ | £84.66 |
Please log in/register to save items.
Assa Abloy Door Closer Template Size 2-5 with Backcheck Silver features a hinged arm with a force regulation mechanism and is suitable for doors up to 1250mm wide. Three speed control valves. The closing speed can be controlled, as can the speed of the final stroke and brake at the opening. Thermodynamic valves provide consistent performance.
Features & benefits
- Assists the overall doorset in meeting the requirements of BS 8300
- Backcheck feature offers optimum protection for doors and walls
- Ideal for the half leaf door of leaf and a half doorsets
- Favourably priced, reliable closer model for standard door applications
- Suitable for fire and smoke protection doors
- Ideal for use with medium and high traffic use doors
- Suitable for use with single action doors up to 1250mm
- Tested for use up to 500, 000 open and close cycles
- Tested to BS EN1154 and Certifire approved
Specifications
| Product Name | Assa Abloy DC140 EN 2-5 Door Closer With Link Arm |
| Brand | Assa Abloy |
| Manufacturer Name | Assa Abloy |
| Manufacturer Part Number | DC140A-1 |
| EAN | 5011802195363 |
| Compliance Approvals | CE Marked |
| Warranty Period | 1 years |
| Materials | Aluminium |
| Commercial Or Domestic Use | Both |
| Range | Door Closers |
| Model Number | DC140A-1 |
| Colour Family | Metals |
| Colour | Silver |
| Application | Interior/External |
| BS EN Fire rating/performance classifications | FD240T, FD240M |
| Pack Quantity | 1 |
| Country Of Origin | Sweden |
| Applicable Standards | en 1154, certifire |
| Finish | Silver |
| Product Weight | 1 kg |
| Product Height | 55 mm |
| Product Length | 206 mm |
| Product Depth | 43 mm |
