Astro Strip Intumescent Single Blade Seal 10mm x 4mm x 2100mm Brown
SKU: ISAD110B

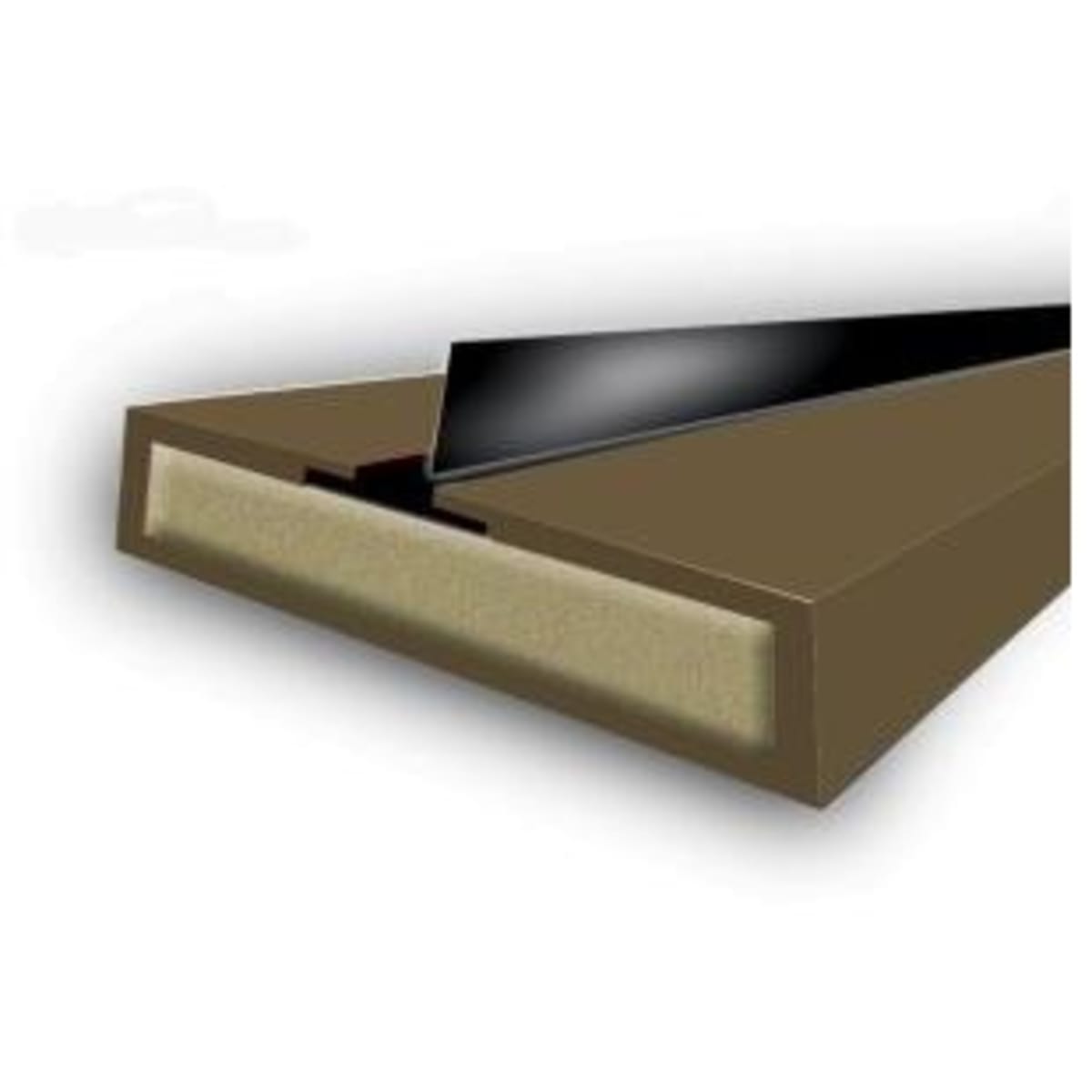

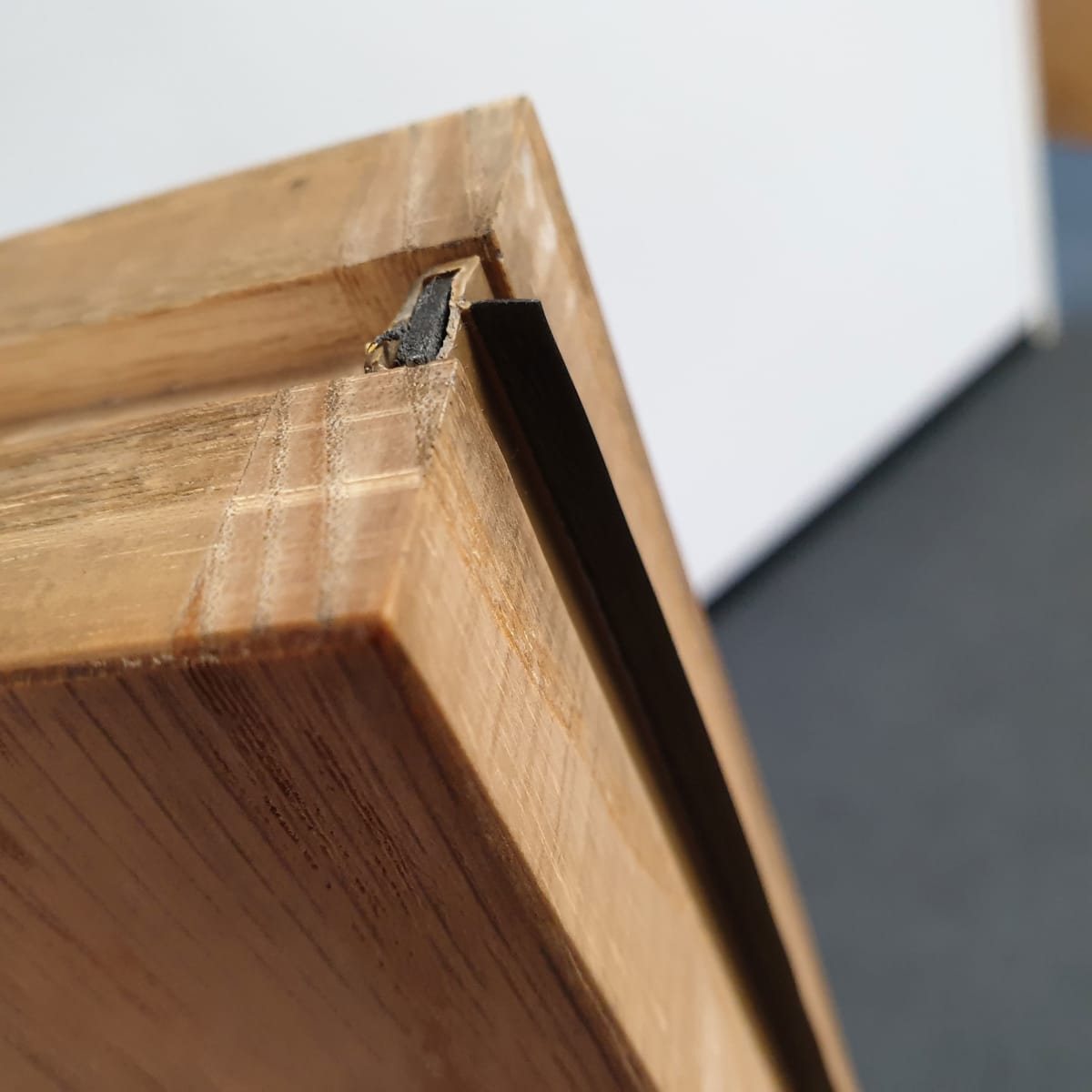

An intumescent graphite based fireseal contained within a PVC sleeve for fitting into a rebate to either the leaves or the frame of a door. Astroflame's Intumescent fire seals with black neoprene rubber are available as a single or double blade. Please Note: Seals of 10 and 15mm are suitable to be used with CERTIFIRE approved FD30 SL, SAL, or unlatched timber doors of max leaf size 2040 x 926mm and a minimum thickness of 42mm. Each fire door will have its own test evidence from the door manufacturer. It is the responsibility of the purchaser to ensure that the seals are fully compliant with the relevant test evidence.
Features & benefits

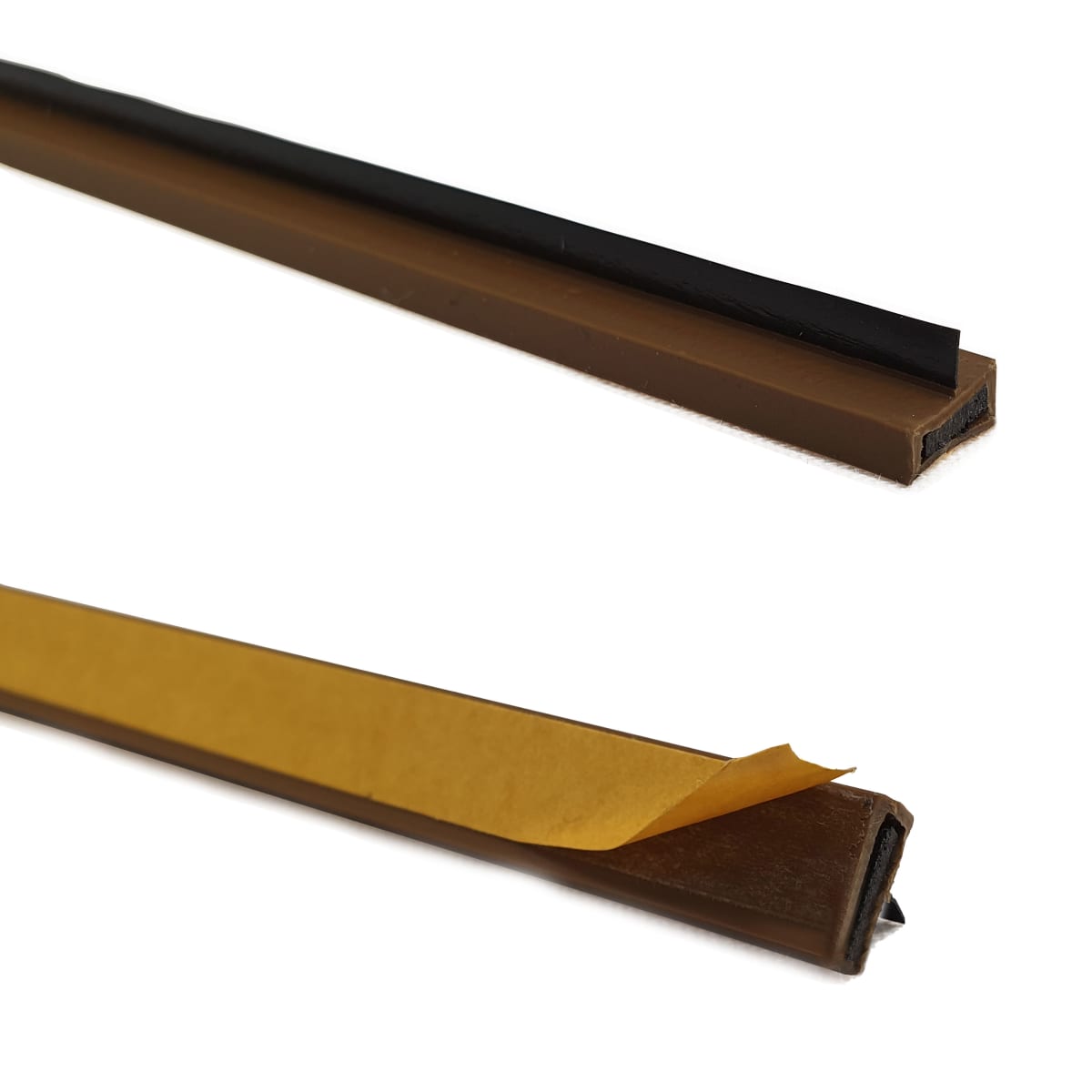

- Supplied with a self-adhesive backing tape for quick and easy fitting
- Tested for 30 minutes (10mm and 15mm widths)
- Smoke seals tested to EN1634-3
- Tested in accordance with BS476 Part 22 : 1987
IDISAD110B
Hinges, Seals & Intumescent > Intumescent Fire Control > Intumescent Strips > Astro Strip Intumescent Single Blade Seal 10mm x 4mm x 2100mm Brown
https://www.george-boyd.co.uk/p/astroflame-intumescent-fire-strip-and-one-rubber-seal-10-x-4mm-brown-ISAD110B
An intumescent graphite based fireseal contained within a PVC sleeve for fitting into a rebate to either the leaves or the frame of a door. Astroflame's Intumescent fire seals with black neoprene rubber are available as a single or double blade. Please Note: Seals of 10 and 15mm are suitable to be used with CERTIFIRE approved FD30 SL, SAL, or unlatched timber doors of max leaf size 2040 x 926mm and a minimum thickness of 42mm. Each fire door will have its own test evidence from the door manufacturer. It is the responsibility of the purchaser to ensure that the seals are fully compliant with the relevant test evidence.
Features & benefits
- Supplied with a self-adhesive backing tape for quick and easy fitting
- Tested for 30 minutes (10mm and 15mm widths)
- Smoke seals tested to EN1634-3
- Tested in accordance with BS476 Part 22 : 1987
Specifications
| Product Name | Astro Strip Intumescent Single Blade Seal 10mm x 4mm x 2100mm Brown |
| Brand | Astroflame |
| Manufacturer Name | Astroflame |
| Manufacturer Part Number | AFFSB1042SB |
| Range | Fire Door Strips & Seals |
| Colour | Brown |
| Application | Interior/External |
| Pack Quantity | 1 |
| Product Width | 10 mm |
| Product Length | 2100 mm |
| Thickness | 4 mm |
