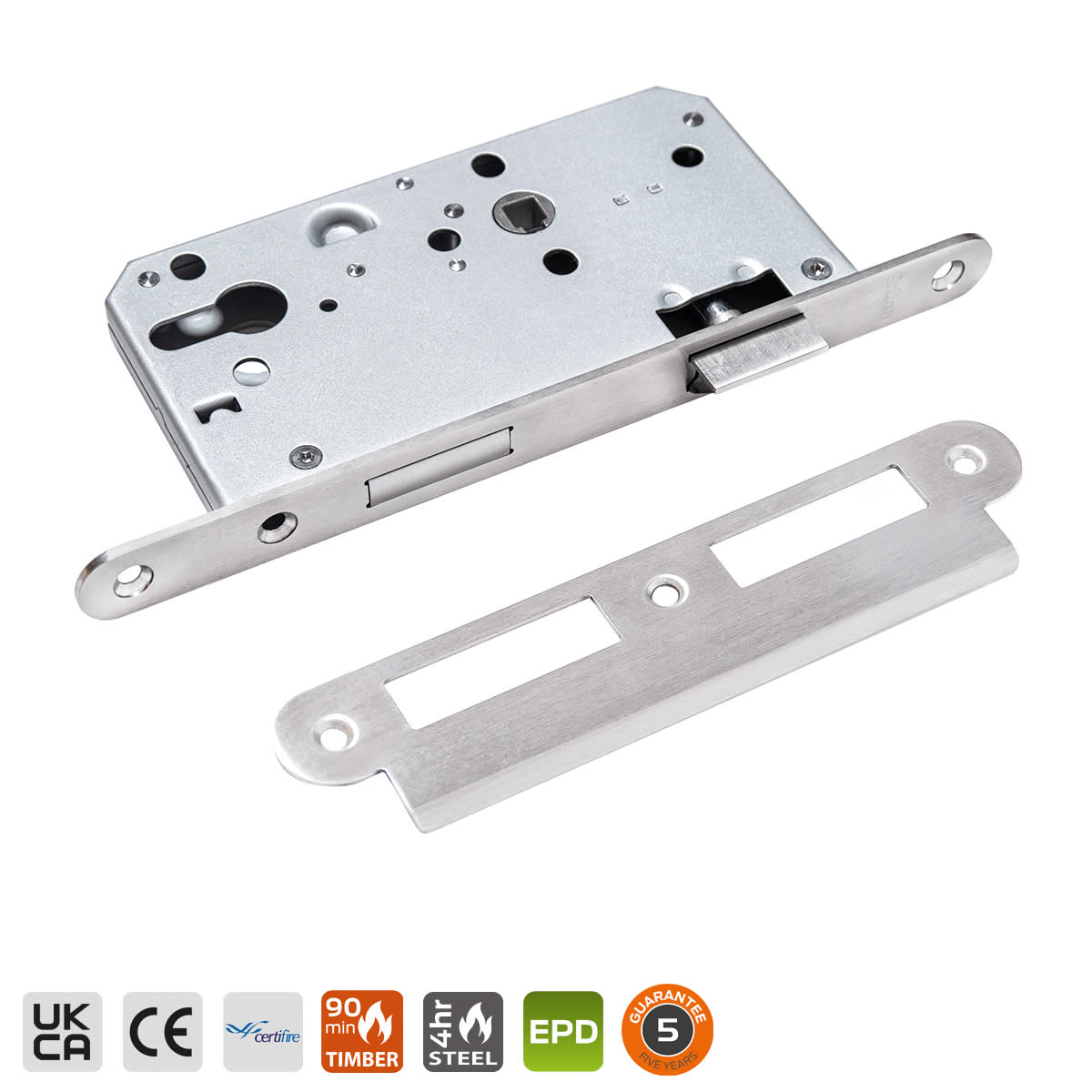

Briton 5420.60.R.SS Euro Profile Cylinder Sashlock - Radius Forend Satin Stainless Steel
SKU: IRB542RS
A euro profile cylinder sashlock suitable for lockable doors with lever furniture to withdraw the latchbolt.
Features & benefits
- Cylinder latch function enables the cylinder to withdraw the deadbolt on the first turn and the latch on the second turn of the cylinder
- Drill resistant heavy duty hardened deadbolt with 22mm throw on a double turn of the cylinder
- Quick reversible latch without the need to dismantle the lockcase
- 60mm backset and 72mm centre in line with guidance of BS 8300
- Radiused forend
- Fire tested to EN 1634 on timber doors to achieve a 90 minute fire rating, and 4 hours for metal doors
IDIRB542RS
Locks & Security > Locks, Latches & Cylinders > Rim Locks & Latches > Briton 5420.60.R.SS Euro Profile Cylinder Sashlock - Radius Forend Satin Stainless Steel
https://www.george-boyd.co.uk/p/briton-radius-forend-sashlock-cylinder-235-x-20-x-3mm-IRB542RS
A euro profile cylinder sashlock suitable for lockable doors with lever furniture to withdraw the latchbolt.
Features & benefits
- Cylinder latch function enables the cylinder to withdraw the deadbolt on the first turn and the latch on the second turn of the cylinder
- Drill resistant heavy duty hardened deadbolt with 22mm throw on a double turn of the cylinder
- Quick reversible latch without the need to dismantle the lockcase
- 60mm backset and 72mm centre in line with guidance of BS 8300
- Radiused forend
- Fire tested to EN 1634 on timber doors to achieve a 90 minute fire rating, and 4 hours for metal doors
Specifications
Product Name | Briton 5420.60.R.SS Euro Profile Cylinder Sashlock - Radius Forend Satin Stainless Steel |
Brand | Briton |
Product Type | Cylinder Lockcases |
Manufacturer Name | Allegion (UK) Ltd |
Manufacturer Part Number | 5420.60.R.SS |
Compliance Approvals | UKCA Marked to EN 12209 (2812-CPR-AG7625);CE Marked to EN 12209 (2812-CPR-AG0017);Environmental Product Declaration in accordance with ISO 14025 and EN 15804240 hour corrosion resistance |
Warranty Period | 5 years |
Materials | Steel |
Commercial Or Domestic Use | Both |
Application | Internal |
BS EN Fire rating/performance classifications | Certifire Approved (CF741) |
Pack Quantity | 1 |
Country Of Origin | China |
Finish | Satin Stainless Steel |
Product Width | 25 mm |
Product Weight | 0.79 kg |
Product Height | 235 mm |
Product Length | 120 mm |
Backset | 60 mm |
