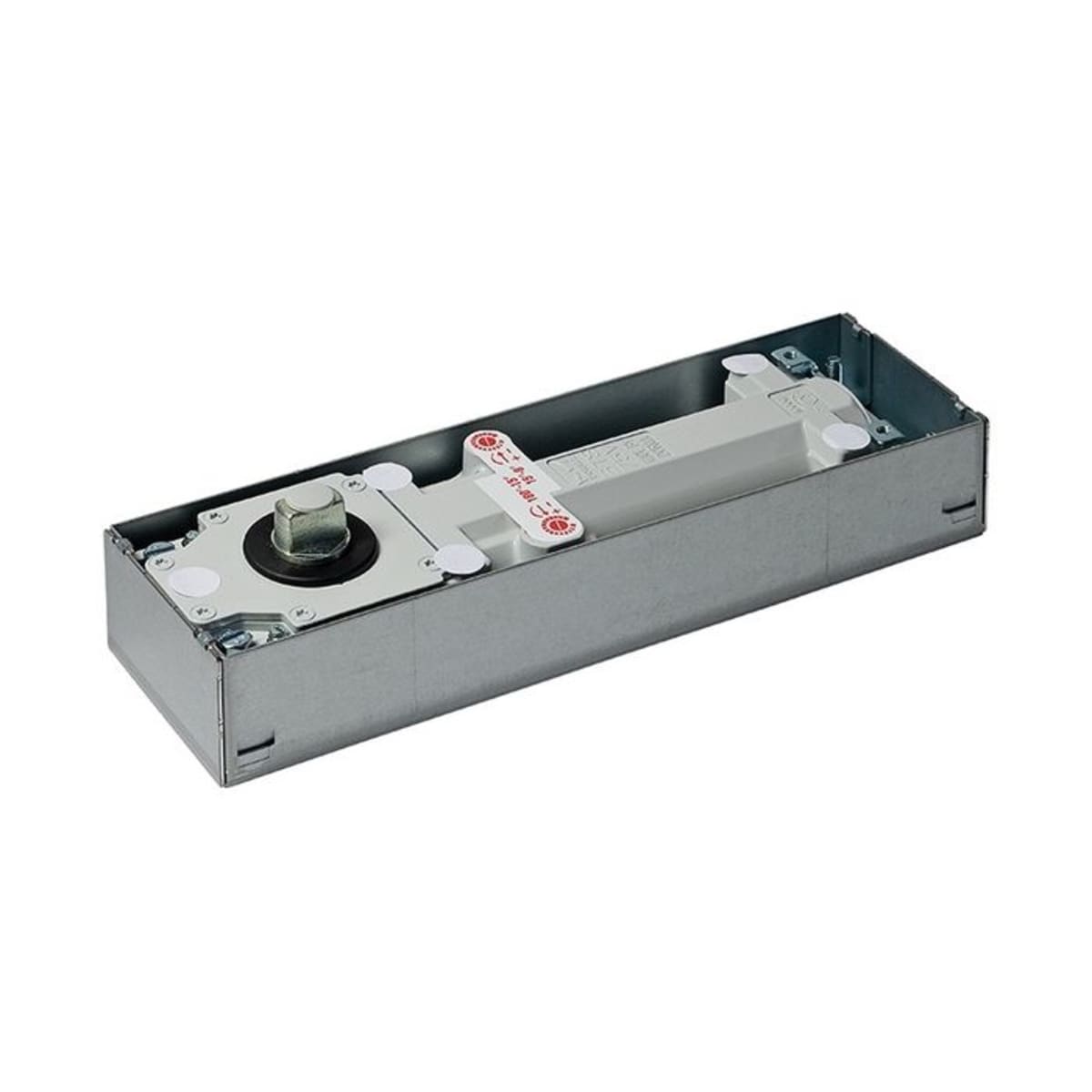

Dorma BTS80 Floor Spring with Adjustable Hold Open 341 x 78 x 60mm
SKU: HWDMA736
Dorma BTS80 Floor Spring with Adjustable Hold Open 341 x 78 x 60mm (L x W x H) is a non-handed floor spring with a size of EN4. It is suitable for both single and double action doors with door weight of 300kg and maximum width of 1100mm. The spring has a adjustable hold open range from 75 to 175 degrees and mechanical check back from 80 degrees. Supplied with cement box and cover plate.
Features & benefits
- Back check prevents damage from vigorous opening
- Delayed action gives more time to enter
- CE Marked
- Meets the requirement of BS EN 1154 showing highest standards of quality
IDHWDMA736
Door Hardware & Closers > Door Closers & Panic Hardware > Floor Springs & Accessories > Dorma BTS80 Floor Spring with Adjustable Hold Open 341 x 78 x 60mm
https://www.george-boyd.co.uk/p/dormakaba-bts80-floor-spring-with-adjustable-hold-open-341-x-78-x-60mm-HWDMA736
Dorma BTS80 Floor Spring with Adjustable Hold Open 341 x 78 x 60mm (L x W x H) is a non-handed floor spring with a size of EN4. It is suitable for both single and double action doors with door weight of 300kg and maximum width of 1100mm. The spring has a adjustable hold open range from 75 to 175 degrees and mechanical check back from 80 degrees. Supplied with cement box and cover plate.
Features & benefits
- Back check prevents damage from vigorous opening
- Delayed action gives more time to enter
- CE Marked
- Meets the requirement of BS EN 1154 showing highest standards of quality
Specifications
| Product Name | Dorma BTS80 Floor Spring with Adjustable Hold Open 341 x 78 x 60mm |
| Brand | Dorma |
| Manufacturer Name | Dormakaba UK Ltd |
| Manufacturer Part Number | 80110000 |
| EAN | 4021226016398 |
| Compliance Approvals | BS EN 1154 |
| Warranty Period | 2 years |
| Commercial Or Domestic Use | Both |
| Range | Floor Springs |
| Application | Interior/External |
| Pack Quantity | 1 |
| Country Of Origin | Switzerland |
| Applicable Standards | ISO 14001 |
| Product Width | 78 mm |
| Product Weight | 7.1 kg |
| Product Height | 60 mm |
| Product Length | 341 mm |
