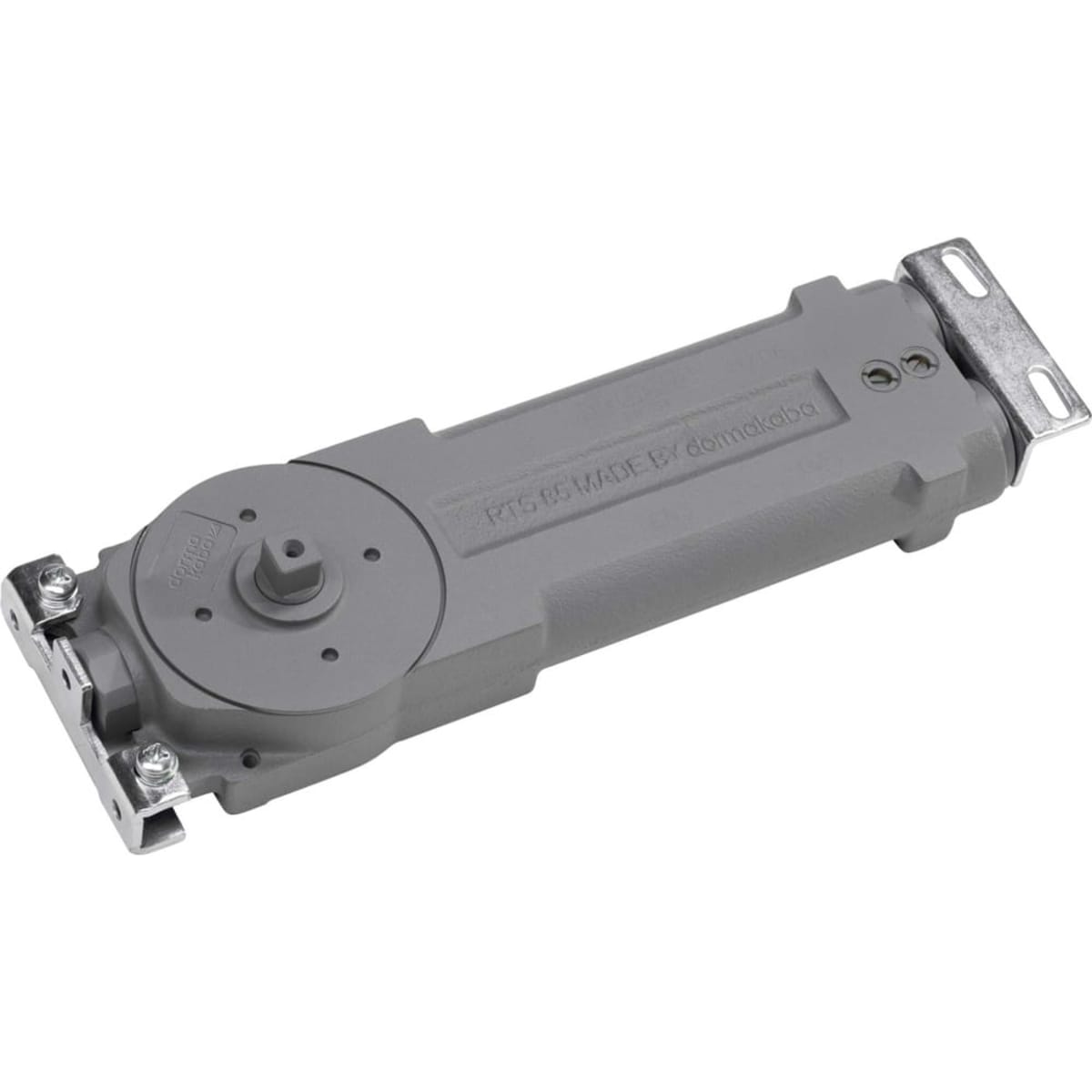

Dorma RTS85 Universal Side Load Floor Pivot 297 x 90 x 37mm
SKU: HWDMA073
Dorma RTS85 Universal Side Load Floor Pivot 297 x 90 x 37mm (L x H x D), is fixed at the bottom of the door. The side floor pivot holds the weight of the entire door at the bottom in a closed position. The product can be adjusted in height and is fitted in the upper road rail of the door. The floor pivot is then connected to the spindle and secured with a clamping piece. The product can be used with heavy duty doors.
Features & benefits
- Ensures safety installation
- Abrasion resistant
- Pre-drilled fixing holes for quick installation
- Bottom rail channel min 18-20mm
IDHWDMA073
Door Hardware & Closers > Door Closers & Panic Hardware > Concealed Door Closers > Dorma RTS85 Universal Side Load Floor Pivot 297 x 90 x 37mm
https://www.george-boyd.co.uk/p/dormakaba-rts85-universal-side-load-floor-pivot-297-x-90-x-37mm-HWDMA073
Dorma RTS85 Universal Side Load Floor Pivot 297 x 90 x 37mm (L x H x D), is fixed at the bottom of the door. The side floor pivot holds the weight of the entire door at the bottom in a closed position. The product can be adjusted in height and is fitted in the upper road rail of the door. The floor pivot is then connected to the spindle and secured with a clamping piece. The product can be used with heavy duty doors.
Features & benefits
- Ensures safety installation
- Abrasion resistant
- Pre-drilled fixing holes for quick installation
- Bottom rail channel min 18-20mm
Specifications
| Product Name | Dorma RTS85 Universal Side Load Floor Pivot 297 x 90 x 37mm |
| Brand | Dorma |
| Manufacturer Name | Dormakaba UK Ltd |
| Manufacturer Part Number | 85210022 |
| EAN | 4021226018613 |
| Compliance Approvals | CE Marked |
| Warranty Period | 2 years |
| Commercial Or Domestic Use | Both |
| Application | Interior/External |
| Pack Quantity | 1 |
| Country Of Origin | Switzerland |
| Product Height | 90 mm |
| Product Length | 297 mm |
| Product Depth | 37 mm |
