P C Henderson S3 Marathon Sliding Door Gear Set
P C Henderson S3 Marathon Sliding Door Gear Set
P C Henderson S3 Marathon Sliding Door Gear Set
P C Henderson S3 Marathon Sliding Door Gear Set

P C Henderson S3 Marathon Sliding Door Gear Set

SKU: HWHDN246

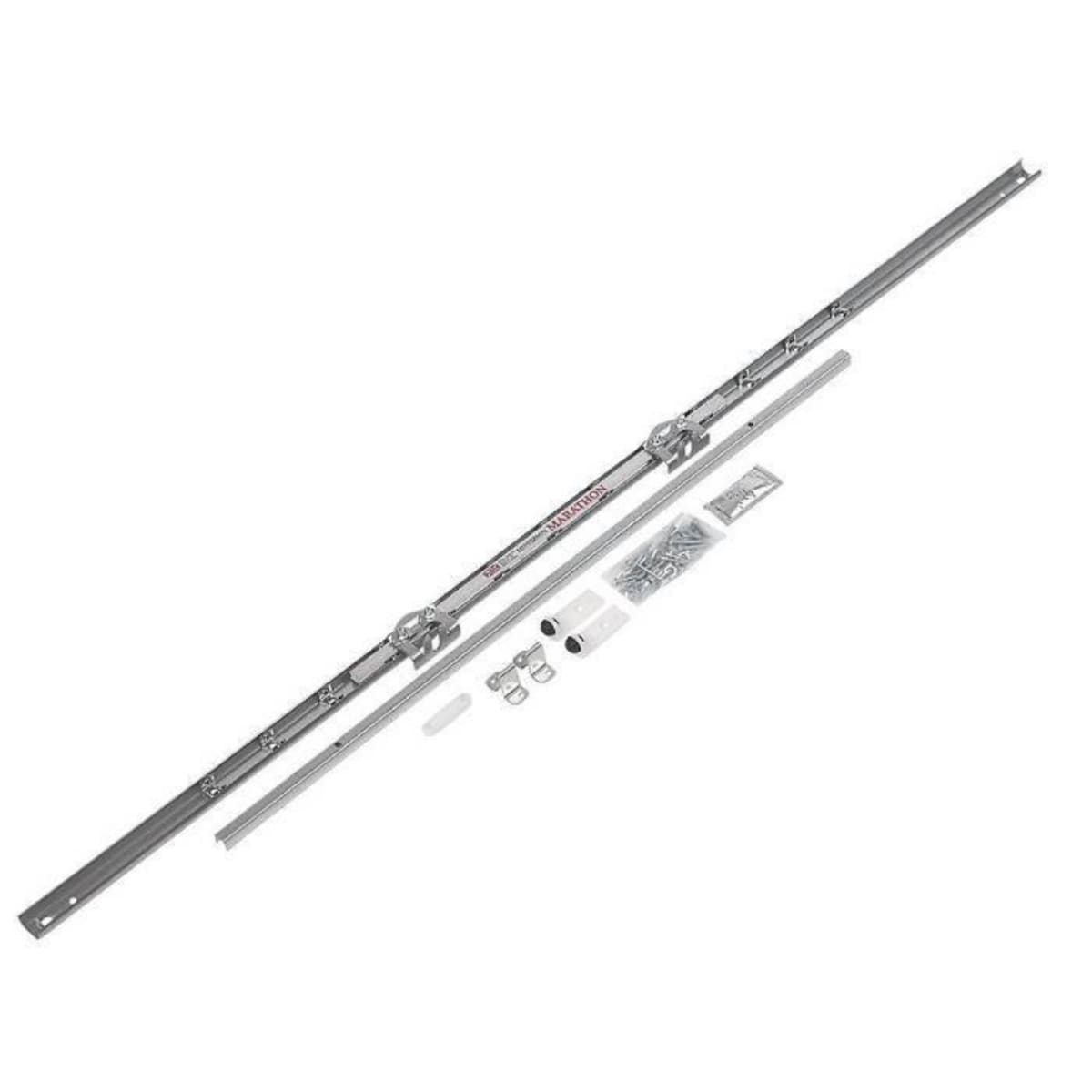

The Marathon kit manufactured from aluminium, offers a unique system that operates on a solid alloy roller bar with a one piece ball cage design sliding mechanism for entrance doors, and room dividing wooden doors. Designed for timber, timber framed or composite doors, the door gear is suitable for doors with a width range of 750-900mm with a track length of 1473mm. The kit supports doors that weigh up to 90kg, and the self-closing door kit can also be added to further complement the system.
Features & benefits
  • Ensures a smooth glide operation
  • Virtually no maintenance required
  • Two kits required for double doors
  • Optional self close kit available
  • Easy and rapid installation
  • Can be combined with Marathon Fire rated to create an FD30 fire door assembly (S3, S4, S5 and S6 kits only)
  • Track Length: 1473mm
  • Optional self close kit available
IDHWHDN246 Door Hardware & Closers > Sliding Door Hardware > Sliding Gears > P C Henderson S3 Marathon Sliding Door Gear Set

Next day delivery

Collect today

Please log in/register  to save items.

The Marathon kit manufactured from aluminium, offers a unique system that operates on a solid alloy roller bar with a one piece ball cage design sliding mechanism for entrance doors, and room dividing wooden doors. Designed for timber, timber framed or composite doors, the door gear is suitable for doors with a width range of 750-900mm with a track length of 1473mm. The kit supports doors that weigh up to 90kg, and the self-closing door kit can also be added to further complement the system.
Features & benefits
  • Ensures a smooth glide operation
  • Virtually no maintenance required
  • Two kits required for double doors
  • Optional self close kit available
  • Easy and rapid installation
  • Can be combined with Marathon Fire rated to create an FD30 fire door assembly (S3, S4, S5 and S6 kits only)
  • Track Length: 1473mm
  • Optional self close kit available
Specifications
Product Name P C Henderson S3 Marathon Sliding Door Gear Set
Brand Henderson
Manufacturer Name P C Henderson Ltd
Manufacturer Part Number 789558
EAN 5019879003437
Compliance Approvals ISO 14001
Materials Aluminium
Nylon
Commercial Or Domestic Use Both
Range Sliding Door Gear
Model Number S3
Application Interior
Pack Quantity 1
Country Of Origin United Kingdom
Product Weight 90  kg
Product Length 1473  mm
