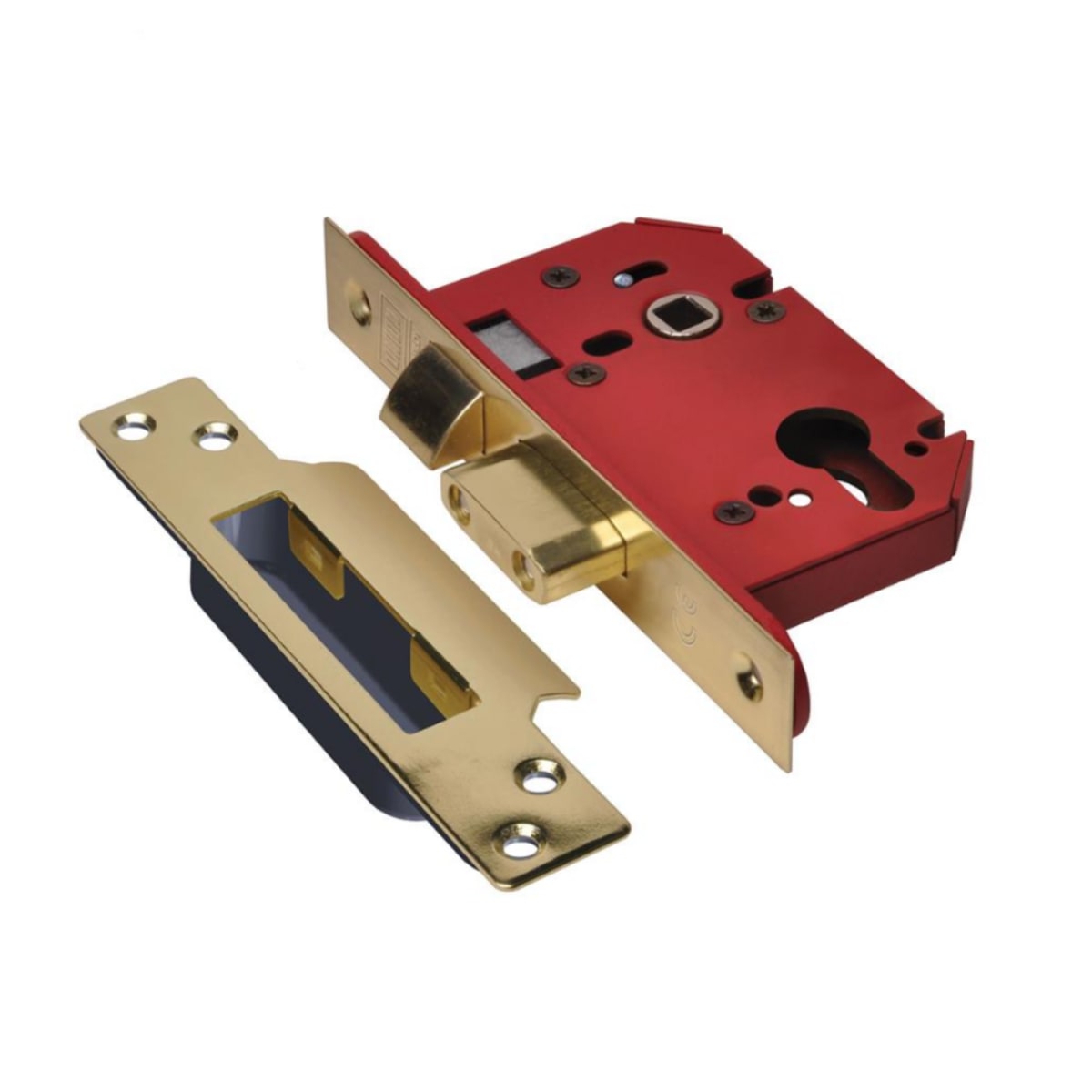

Union 22EU StrongBOLT Euro Profile Sashlock 68mm Polished Brass
Union 22EU StrongBOLT Euro Profile Sashlock 68mm Polished Brass

Union 22EU StrongBOLT Euro Profile Sashlock 68mm Polished Brass

SKU: YL22PB25
The Union 22EU StrongBOLT Euro Profile Sashlock in polished brass is a high-security lock designed for timber doors up to 54mm thick. The chamfered bolt design enhances the lock's performance under side load testing, making drilling attacks more difficult. The sashlock is anti-pick, anti-saw, and anti-drill for added peace of mind. The deadbolt is 14mm, ensuring secure positive deadlocking, and the hardened steel pins provide resistance to sawing attacks. The sashlock can be installed into many UK mortices without additional carpentry and is suitable for left or right-hinged doors. The lock is supplied with 2 steel nickel-plated keys and tested to BS EN 12209:2003 standards. It comes with a radius plastic splinter guard and anti-rattle strike, making on-site fine-tuning easier.
Features & benefits
  • Chamfered bolt design increases the performance of the lock under side load testing
  • Anti-saw and anti pick feature, for ultimate peace of mind and security
  • 14mm deadbolt for secure positive deadlocking
  • Hardened steel pins provide resistance to attack from sawing
  • Suitable for doors up to 54mm thick
  • Rebate Kit: 2200REB 13mm.
  • Supplied with 2 steel nickel plated keys. Not supplied with cylinder

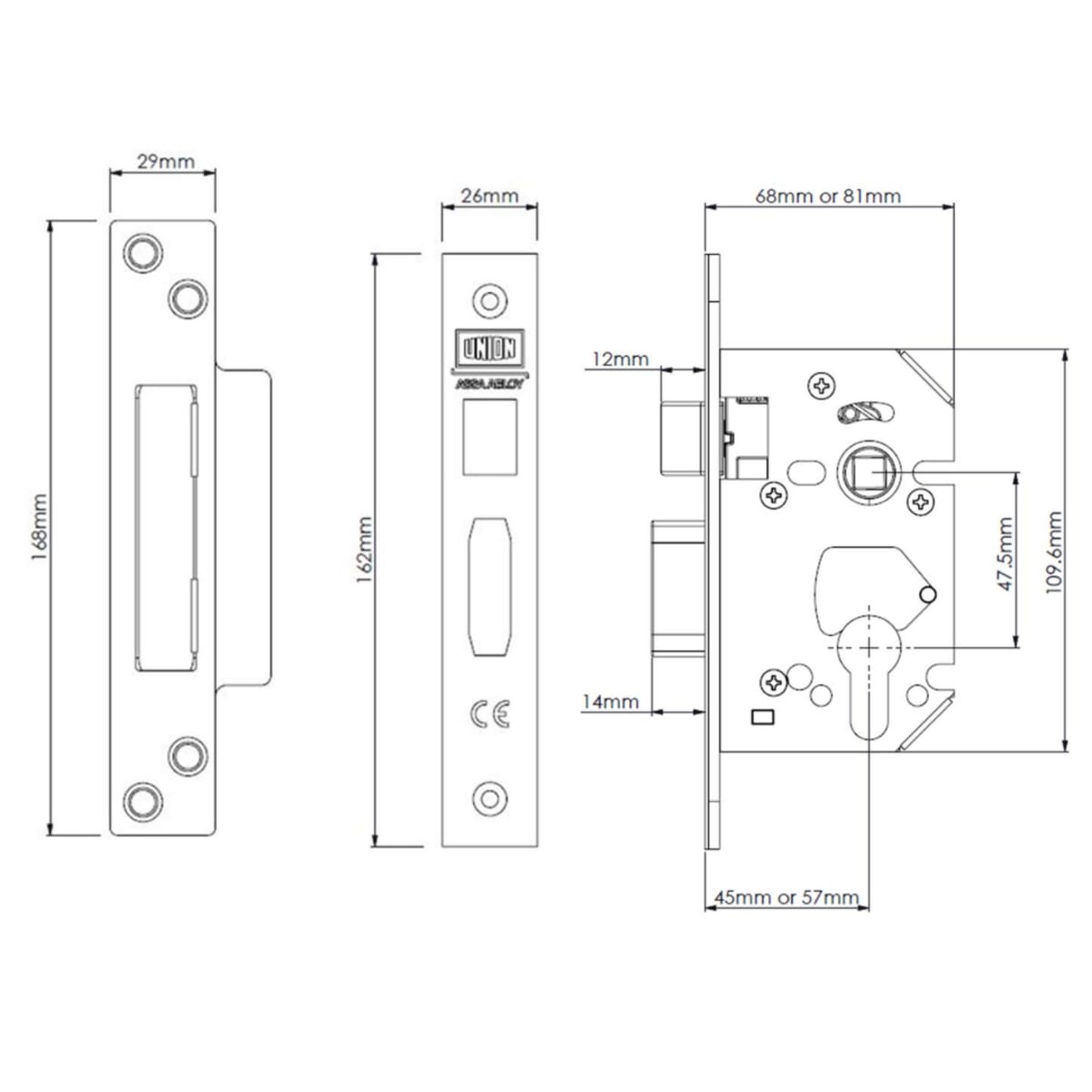

  • Case Size: 68mm x 110mm (2.5in).
  • Backset: 45mm. This is the measurement from the edge of the door to the centre of the keyhole.
  • Centre: 47.5mm. This is the measurement from the centre of the follower, which operates the handles, to the centre of the keyhole.
IDYL22PB25 Locks & Security > Locks, Latches & Cylinders > Mortice Locks > Union 22EU StrongBOLT Euro Profile Sashlock 68mm Polished Brass
Trade Sign in or apply for trade prices
£15.76 inc VAT, Each
13.13 http://schema.org/InStock
View delivery information

Sorry, we are currently unable to take orders through our website. Please call your local branch for more info.

Please log in/register  to save items.

The Union 22EU StrongBOLT Euro Profile Sashlock in polished brass is a high-security lock designed for timber doors up to 54mm thick. The chamfered bolt design enhances the lock's performance under side load testing, making drilling attacks more difficult. The sashlock is anti-pick, anti-saw, and anti-drill for added peace of mind. The deadbolt is 14mm, ensuring secure positive deadlocking, and the hardened steel pins provide resistance to sawing attacks. The sashlock can be installed into many UK mortices without additional carpentry and is suitable for left or right-hinged doors. The lock is supplied with 2 steel nickel-plated keys and tested to BS EN 12209:2003 standards. It comes with a radius plastic splinter guard and anti-rattle strike, making on-site fine-tuning easier.
Features & benefits
  • Chamfered bolt design increases the performance of the lock under side load testing
  • Anti-saw and anti pick feature, for ultimate peace of mind and security
  • 14mm deadbolt for secure positive deadlocking
  • Hardened steel pins provide resistance to attack from sawing
  • Suitable for doors up to 54mm thick
  • Rebate Kit: 2200REB 13mm.
  • Supplied with 2 steel nickel plated keys. Not supplied with cylinder
  • Case Size: 68mm x 110mm (2.5in).
  • Backset: 45mm. This is the measurement from the edge of the door to the centre of the keyhole.
  • Centre: 47.5mm. This is the measurement from the centre of the follower, which operates the handles, to the centre of the keyhole.
Specifications
Product Name Union 22EU StrongBOLT Euro Profile Sashlock 68mm Polished Brass
Brand Union
Product Type Lock Case
Manufacturer Name Assa Abloy Ltd
Manufacturer Part Number YL22EUS-PB-2.5
EAN 5011802190429
Compliance Approvals CE Marked
Warranty Period 10  years
Range Euro
Pack Quantity 1
Country Of Origin Romania
Applicable Standards certifire,en 12209,en 1634 1,ukca
Finish Polished Brass
Case Size 63.5  mm
Bolt Throw 14  mm
Backset 45  mm
