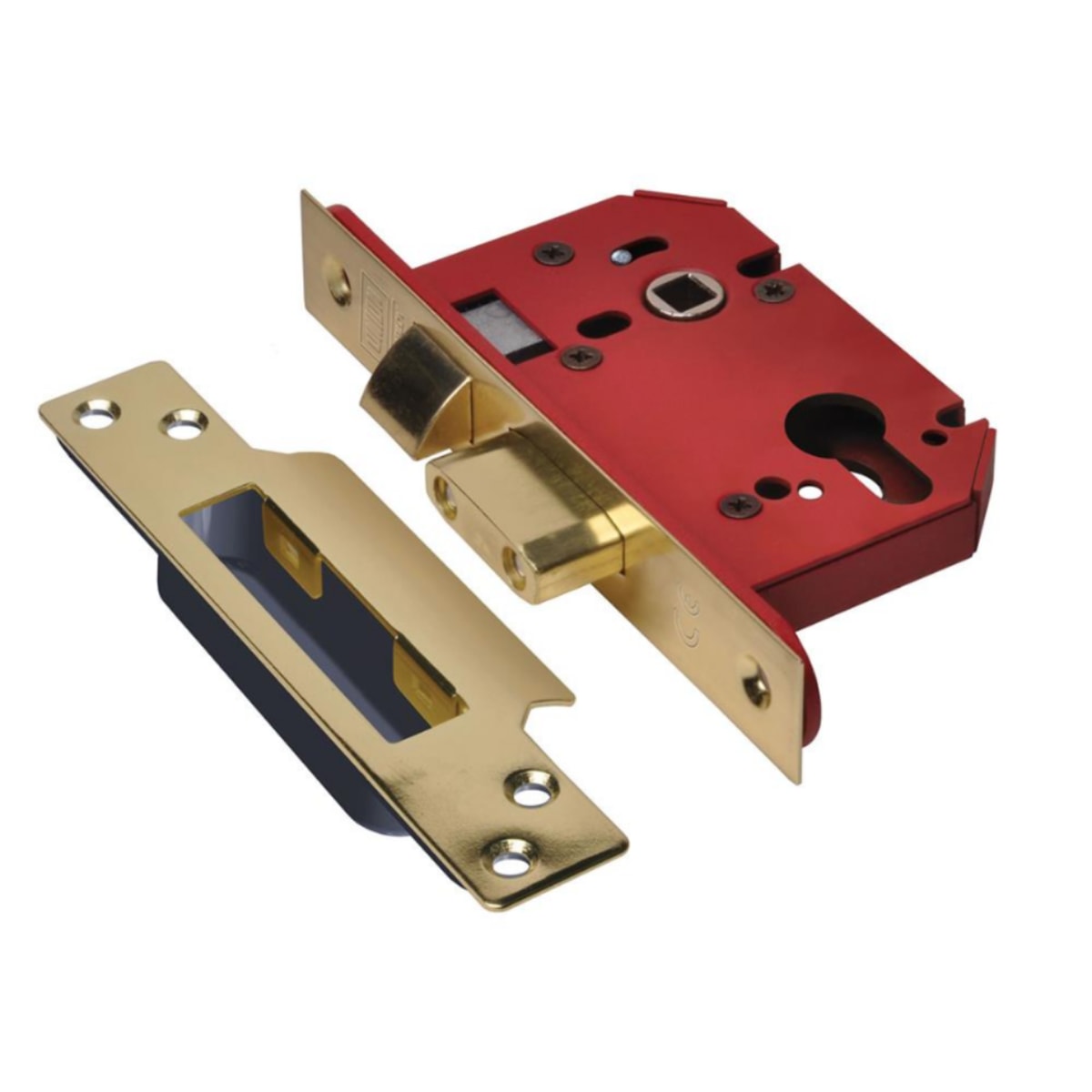

Union CE StrongBOLT Euro Profile Cylinder Sashlock 79mm Polished Brass
SKU: YL22PB30
The Union StrongBOLT Euro Profile Sashlock is a highly secure lock designed for timber doors up to 54mm thick. Its chamfered bolt design enhances performance under side load and makes drilling attacks more difficult. The sashlock is also anti-pick, anti-saw, and anti-drill for added peace of mind. It features radius inner forends for easy installation and retrofit replacement without spoiling the edge of the door. The lock can be hinged on either side and is supplied with a radius plastic splinter guard and anti-rattle strike. It has a 14mm deadbolt for secure positive deadlocking and hardened steel pins for added resistance to sawing. Tested to EN 1634-1 for use on 60-minute timber fire doors, it is ideal for use with unsprung lever handles.
Features & benefits
- Chamfered bolt design increases the performance under side load testing
- Anti-saw and anti pick feature, for ultimate peace of mind and security
- 14mm deadbolt for secure positive deadlocking
- Hardened steel pins provide resistance to attack fromsawing
- Suitable for doors up to 54mm thick

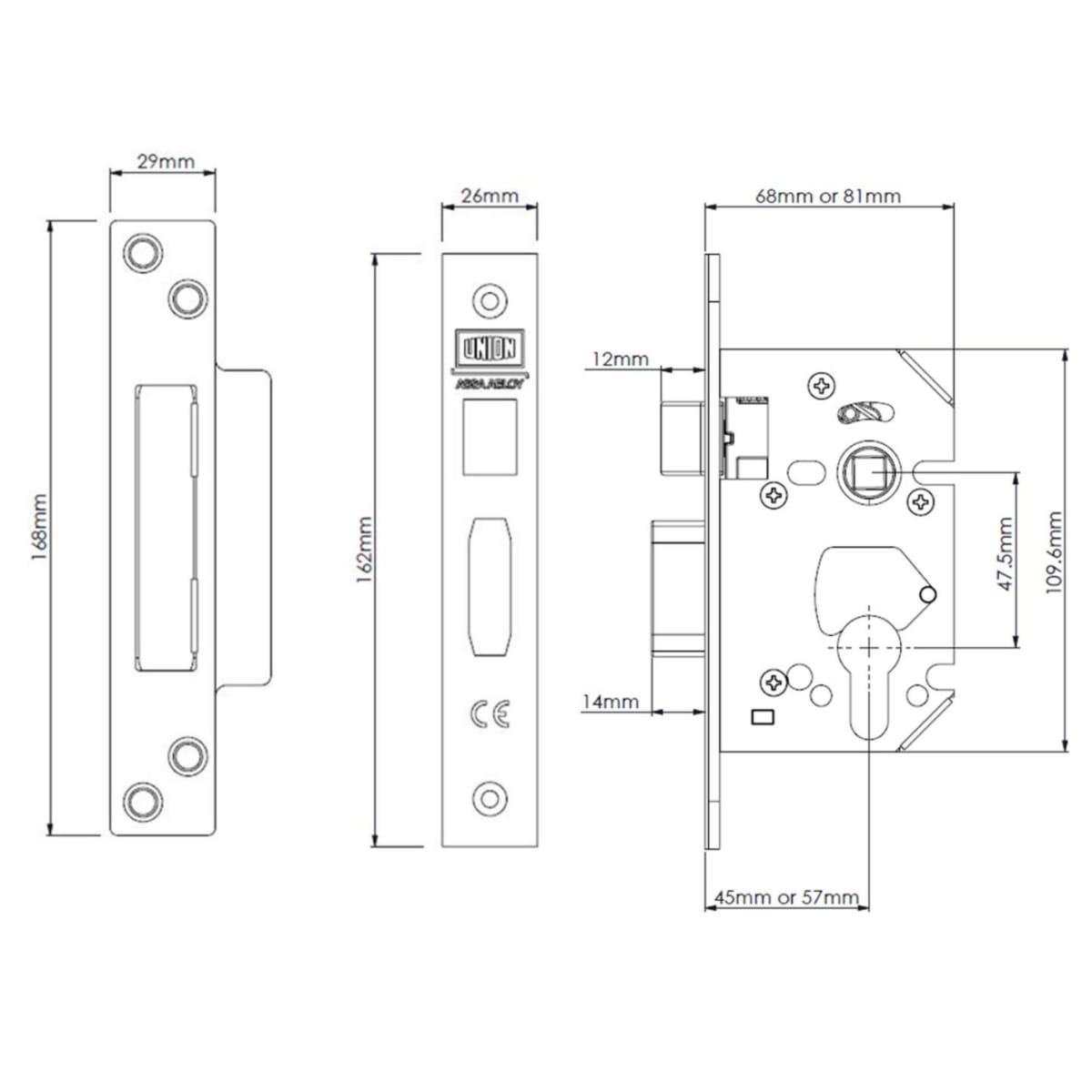

- Case Size: 81mm x 110mm (3.0in)
- Backset: 57mm
- Centre: 47.5mm
- Supplied with 2 steel nickel plated keys, instructions & fittings. Not supplied with cylinder
- Tested to BS EN 12209:2003.
IDYL22PB30
Locks & Security > Locks, Latches & Cylinders > Mortice Locks > Union CE StrongBOLT Euro Profile Cylinder Sashlock 79mm Polished Brass
https://www.george-boyd.co.uk/p/strongbolt-ce-euro-profile-sashlock-57mm-backset-visi-polished-brass-YL22PB30
The Union StrongBOLT Euro Profile Sashlock is a highly secure lock designed for timber doors up to 54mm thick. Its chamfered bolt design enhances performance under side load and makes drilling attacks more difficult. The sashlock is also anti-pick, anti-saw, and anti-drill for added peace of mind. It features radius inner forends for easy installation and retrofit replacement without spoiling the edge of the door. The lock can be hinged on either side and is supplied with a radius plastic splinter guard and anti-rattle strike. It has a 14mm deadbolt for secure positive deadlocking and hardened steel pins for added resistance to sawing. Tested to EN 1634-1 for use on 60-minute timber fire doors, it is ideal for use with unsprung lever handles.
Features & benefits
- Chamfered bolt design increases the performance under side load testing
- Anti-saw and anti pick feature, for ultimate peace of mind and security
- 14mm deadbolt for secure positive deadlocking
- Hardened steel pins provide resistance to attack fromsawing
- Suitable for doors up to 54mm thick
- Case Size: 81mm x 110mm (3.0in)
- Backset: 57mm
- Centre: 47.5mm
- Supplied with 2 steel nickel plated keys, instructions & fittings. Not supplied with cylinder
- Tested to BS EN 12209:2003.
Specifications
| Product Name | Union CE StrongBOLT Euro Profile Cylinder Sashlock 79mm Polished Brass |
| Brand | Union |
| Product Type | Lock Case |
| Manufacturer Name | Assa Abloy Ltd |
| Manufacturer Part Number | YL22EUS-PB-3.0 |
| EAN | 5011802190436 |
| Compliance Approvals | CE Marked |
| Warranty Period | 10 years |
| Range | Euro |
| Pack Quantity | 1 |
| Country Of Origin | Romania |
| Applicable Standards | certifire,en 12209,en 1634 1,ukca |
| Finish | Polished Brass |
| Case Size | 76 mm |
| Bolt Throw | 14 mm |
| Backset | 57 mm |
