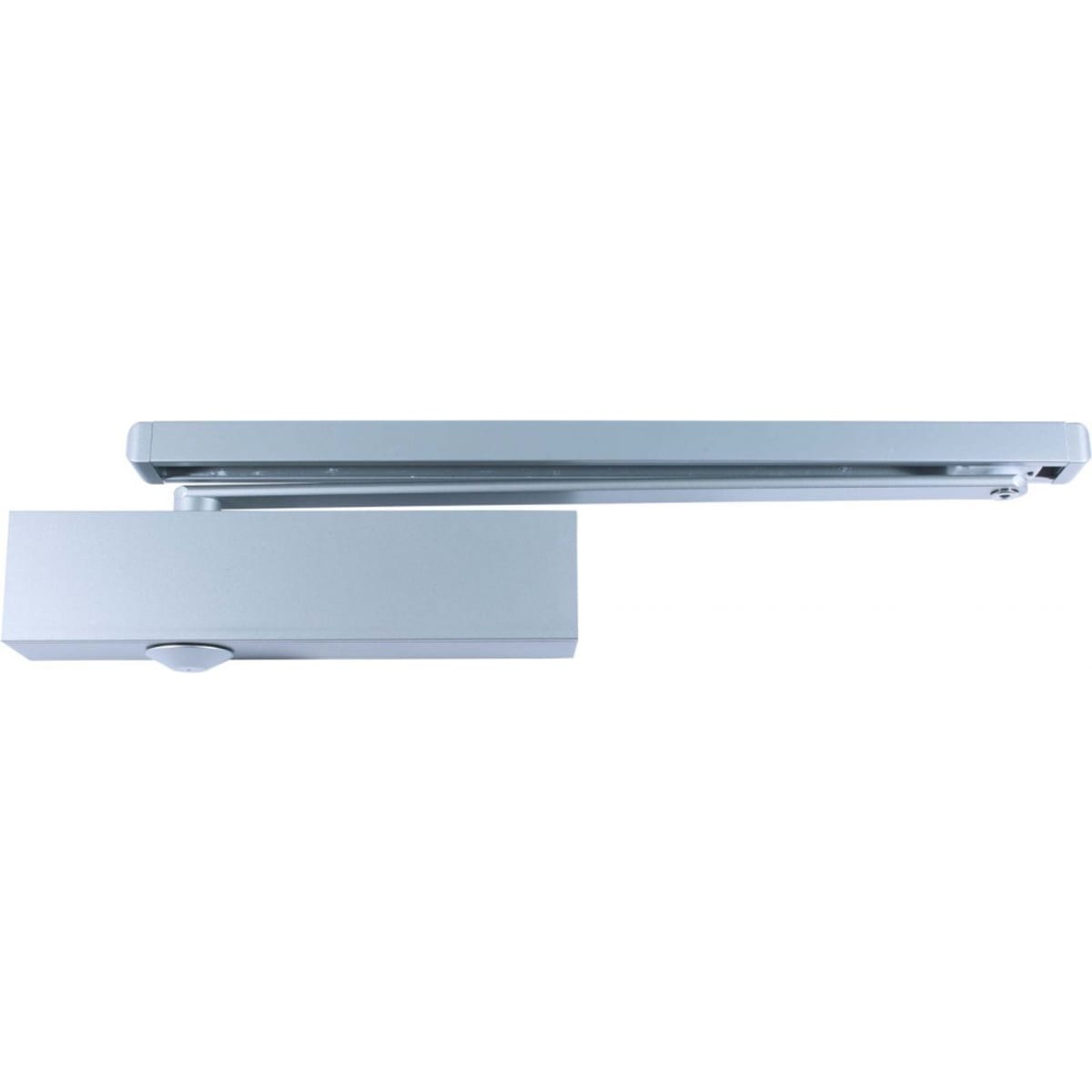

Synergy S3400 Silver Trimplate Cam Action 2-4 Door Closer
SKU: HWSY1105
Intended for internal use, this Cam Action Door Closer has a power adjustable size between 2-4 by spring with a high level of efficancy. Suitable for doors up to 1100mm wide and 80kg weigh on door mount and transom mount pull and push, with easy installation and high corrosion protection. It has been fully tested to the requirements of BS EN 1154 with a certifire approved 180 degree-controlled opening and closing door mount, as well as a transom pull side and 105 degree door mount and transom mount push side.
Features & benefits
- Angle bracket available for deep reveal exceeding 21 mm push side door mount
- Independent door speed and door latching valves
- Cam action technology providing low opening force for ease of opening
- Certificated for use on latched and unlatched fire doors with a fully adjustable backcheck in all applications
- CE marked certificate 2812-CPR-AD5198 and certifire approved product certificate CF5312
- Architectural radius edge cover
- Fire tested to BS EN 1634 (Part 1)
- Assessed for use on 30, 60, and 120 minutes on timber fire doors
IDHWSY1105
Door Hardware & Closers > Door Closers & Panic Hardware > Overhead Door Closers > Synergy S3400 Silver Trimplate Cam Action 2-4 Door Closer
https://www.george-boyd.co.uk/p/synergy-cam-action-door-closer-en2-4-spring-adj-trimplate-silver-HWSY1105
Intended for internal use, this Cam Action Door Closer has a power adjustable size between 2-4 by spring with a high level of efficancy. Suitable for doors up to 1100mm wide and 80kg weigh on door mount and transom mount pull and push, with easy installation and high corrosion protection. It has been fully tested to the requirements of BS EN 1154 with a certifire approved 180 degree-controlled opening and closing door mount, as well as a transom pull side and 105 degree door mount and transom mount push side.
Features & benefits
- Angle bracket available for deep reveal exceeding 21 mm push side door mount
- Independent door speed and door latching valves
- Cam action technology providing low opening force for ease of opening
- Certificated for use on latched and unlatched fire doors with a fully adjustable backcheck in all applications
- CE marked certificate 2812-CPR-AD5198 and certifire approved product certificate CF5312
- Architectural radius edge cover
- Fire tested to BS EN 1634 (Part 1)
- Assessed for use on 30, 60, and 120 minutes on timber fire doors

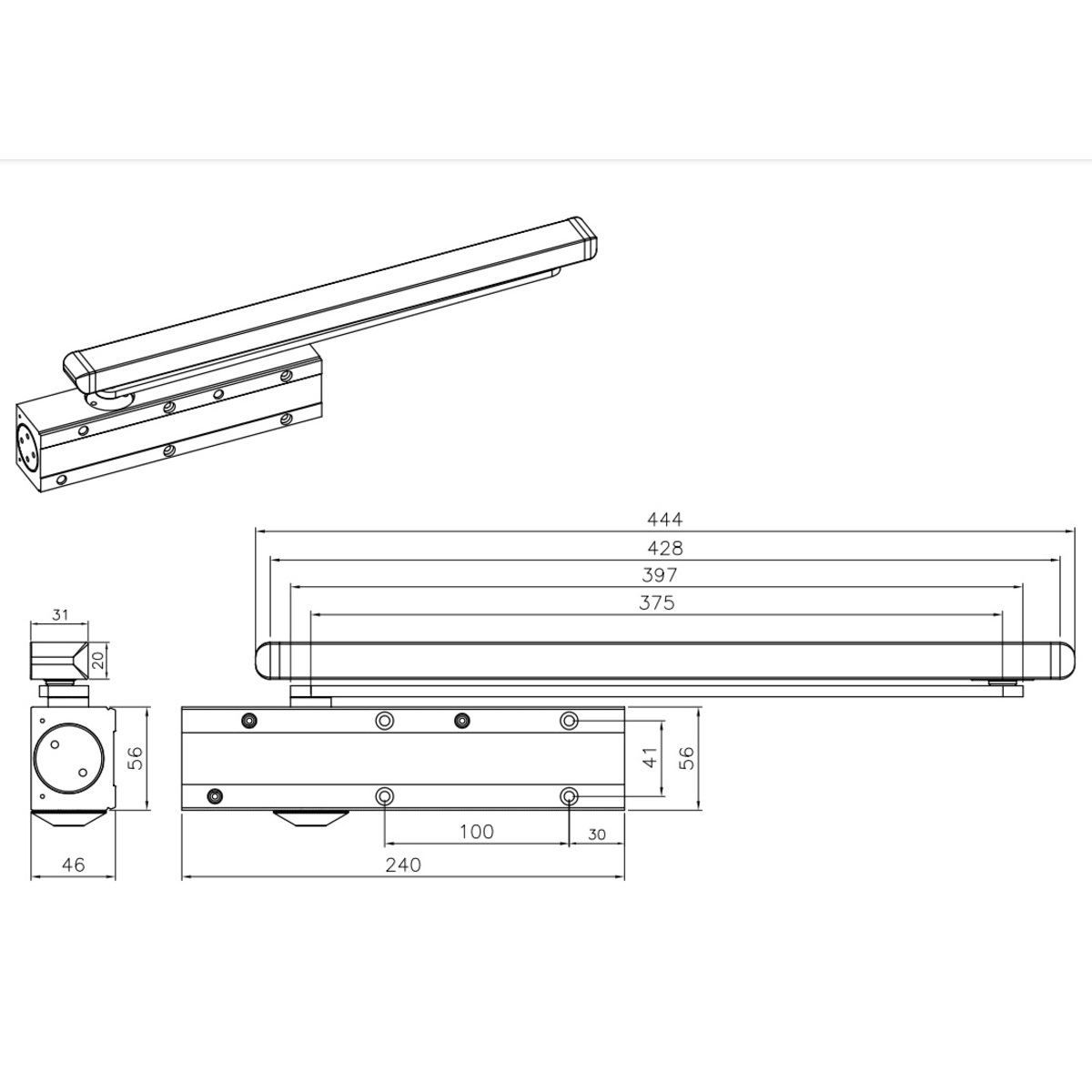

Specifications
Product Name | Synergy S3400 Silver Trimplate Cam Action 2-4 Door Closer |
Brand | Synergy Hardware |
Manufacturer Name | Synergy Hardware Ltd |
Manufacturer Part Number | S3401.SES.MEC |
Commercial Or Domestic Use | Both |
Range | Door Closers |
Application | Interior |
Pack Quantity | 1 |
Finish | Silver |
Product Width | 46 mm |
Product Length | 240 mm |
Product Depth | 56 mm |
