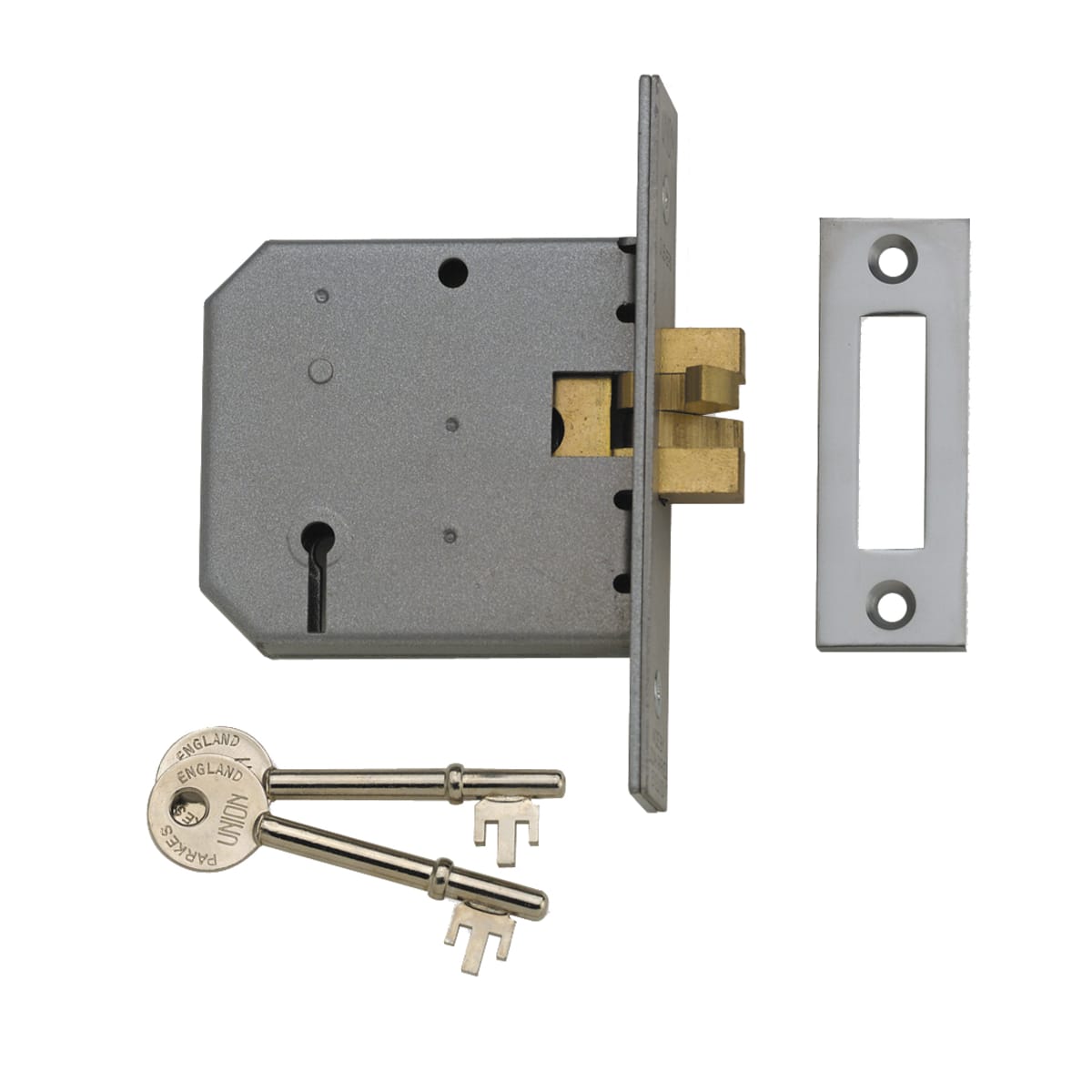

Union 2477 3 Lever Sliding Door Lock 77mm Satin Chrome

SKU: HWUN0800

Union 2477 3 Lever Sliding Door Lock 77mm (D) Satin Chrome Union 3 Lever Sliding Door Lock Satin Chrome is suitable for use on doors up to thickness of 54mm. It has a cylinder or lock body where the key is inserted. The deadbolt is locked or unlocked by key from either side and is suitable for doors that require a medium level of security. The satin chrome plated finish prevents it from wear and tear. It also increases the hardness of the product, and makes cleaning easy.

Features & benefits
  • For timber doors sliding from the left or right and requiring key operation only
  • Suitable for use on doors up to 54mm thick
  • Expanding claw deadbolt
  • Claw deadbolt locked or unlocked by separate turn from inside
  • Claw deadbolt unlocked by separate emergency release from outside
  • Available with square forend and locking plate

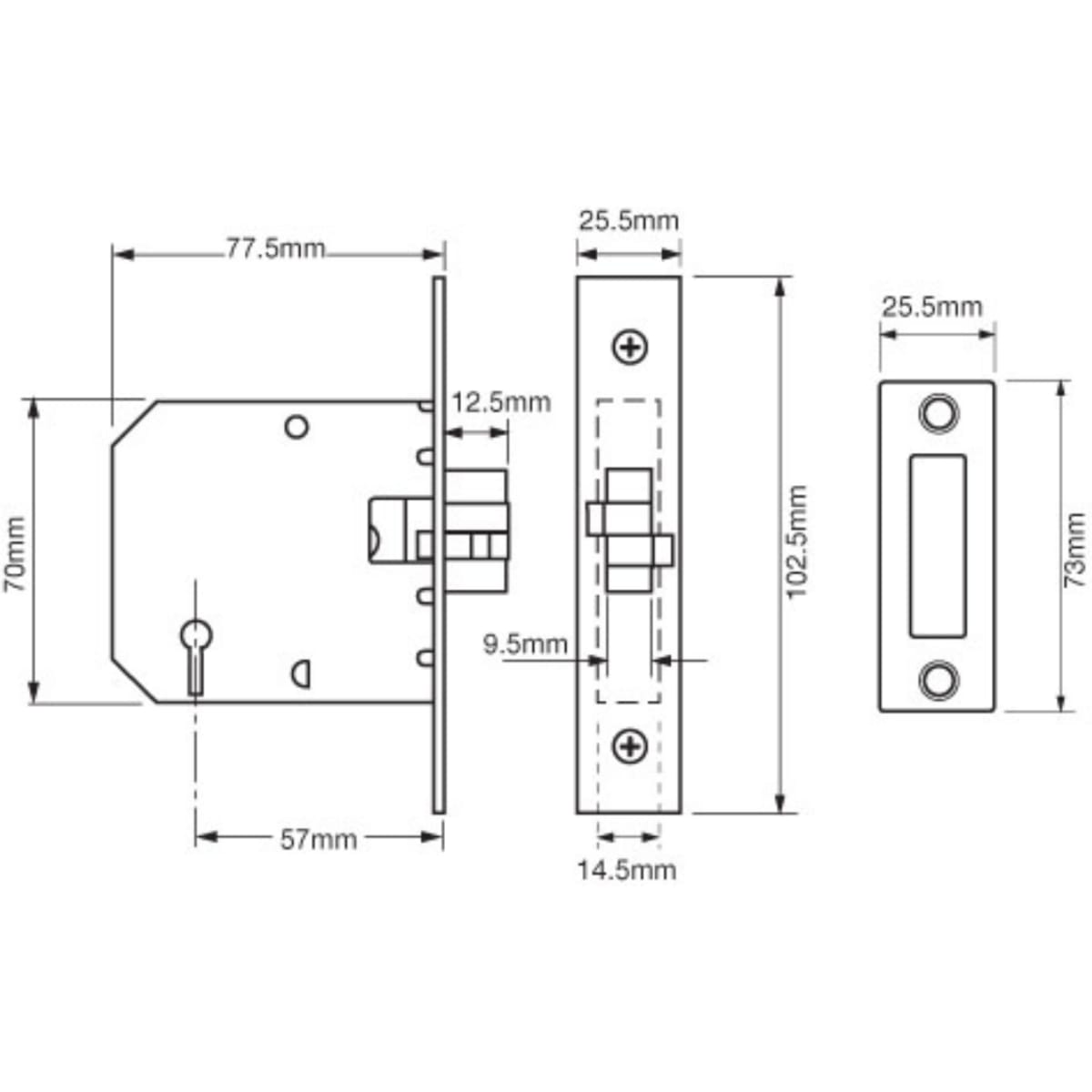

  • Case Size: 77.5mm (3")
  • Backset: 57mm
IDHWUN0800 Security & Safety > Locks, Latches & Cylinders > Mortice Locks > Union 2477 3 Lever Sliding Door Lock 77mm Satin Chrome
Trade Sign in or apply for trade prices
£36.31 inc VAT, Each
30.26 http://schema.org/InStock


Please log in/register  to save items.

Union 2477 3 Lever Sliding Door Lock 77mm (D) Satin Chrome Union 3 Lever Sliding Door Lock Satin Chrome is suitable for use on doors up to thickness of 54mm. It has a cylinder or lock body where the key is inserted. The deadbolt is locked or unlocked by key from either side and is suitable for doors that require a medium level of security. The satin chrome plated finish prevents it from wear and tear. It also increases the hardness of the product, and makes cleaning easy.

Features & benefits
  • For timber doors sliding from the left or right and requiring key operation only
  • Suitable for use on doors up to 54mm thick
  • Expanding claw deadbolt
  • Claw deadbolt locked or unlocked by separate turn from inside
  • Claw deadbolt unlocked by separate emergency release from outside
  • Available with square forend and locking plate
  • Case Size: 77.5mm (3")
  • Backset: 57mm

Specifications
Product Name Union 2477 3 Lever Sliding Door Lock 77mm Satin Chrome
Brand Union
Manufacturer Name Yale Security (Assa Abloy)
Manufacturer Part Number J2477-SC-3.00
EAN 5011802006058
Compliance Approvals Kitemarked to BS 3621 : 2043
Warranty Period 10  years
Materials Steel
Stainless steel
Commercial Or Domestic Use Both
Range Mortice Locks and Latches
Colour Family Metals
Application Interior/External
Pack Quantity 1
Country Of Origin United Kingdom
Finish Satin Chrome
Product Length 77  mm
Product Depth 77  cm
