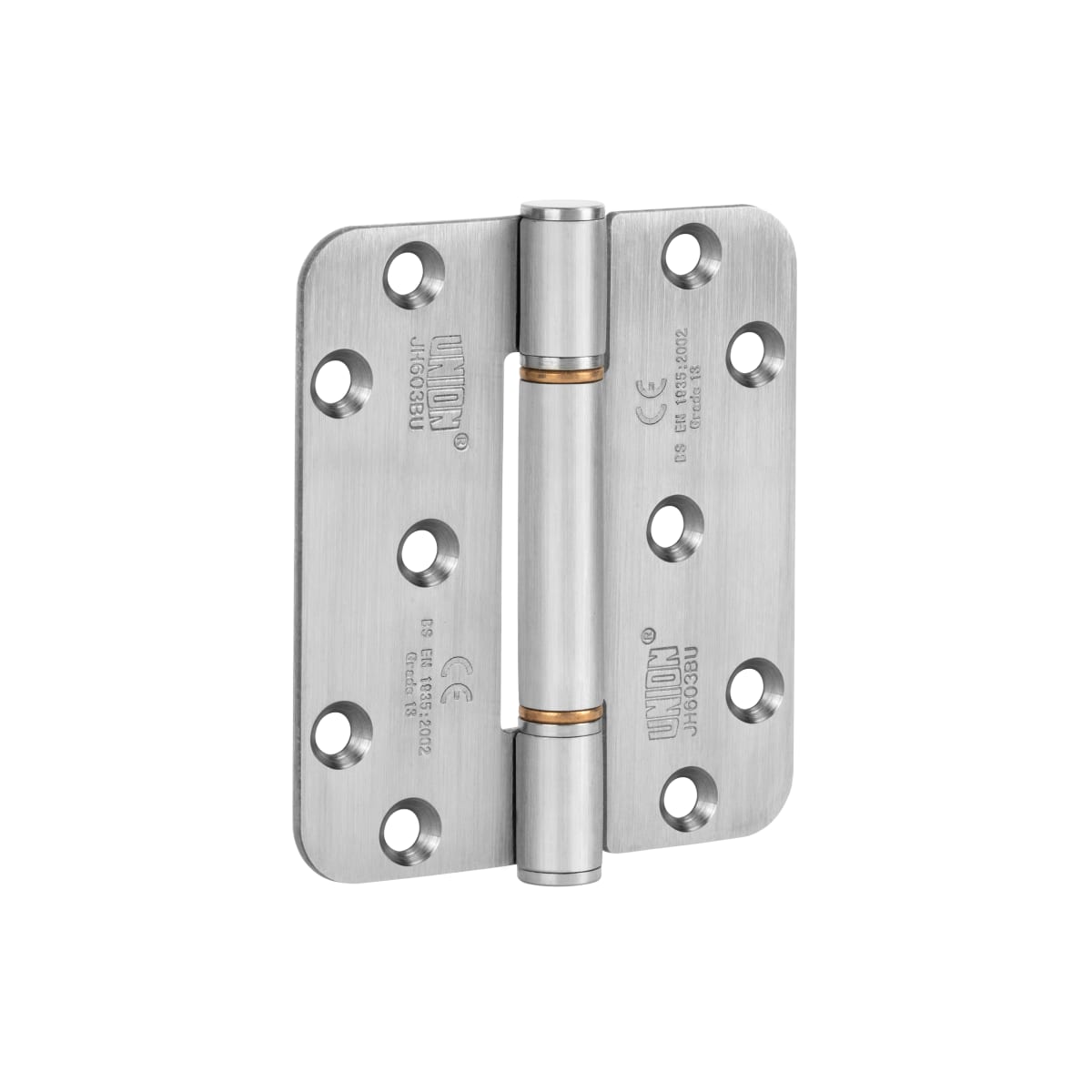

Union 603 Powerload Butt Hinge Radius Corner Satin Stainless Steel 100mm X 88mm X 3mm
SKU: JH63BSSF
A highly durable UNION grade 13 bushed bearing hinge that features carbon steel and phosphorous bronze flanged bushed bearings to provide long life aswell as a fixed pin for improved cycling and durability. The PowerLOAD hinge family are virtually mainteance free and supplied with a 25-year guarantee, and are suitable for timber fire doors FD30 and FD60* making this hinge family ideal for environments where durability and reliability are paramount.
*Intumescent protection must be used
Features & benefits
- Metal to metal wear and regular maintenance is significantly reduced by the carbon steel and phosphorous bronze flanged bearing bushes
- Phosphorous bronze ring offers a great looking finish and increases longevity
- Congruent fixing pattern spreads the load of the door more effectively within the timber
- Radius and square corner variants available
- Radius corner offers speed of fixing with machine tools
- Certified in compliance with CE, UKCA, Certifire and EN1935
- Maximum door mass: 120kg
- Durability tested to 200,000 cycles
IDJH63BSSF
Hinges, Seals & Intumescent > Hinges > Fire Door GR13 Hinges > Union 603 Powerload Butt Hinge Radius Corner Satin Stainless Steel 100mm X 88mm X 3mm
https://www.george-boyd.co.uk/p/union-603-powerload-butt-hinge-radius-corner-satin-stainless-steel-100mm-x-88mm-x-3mm-JH63BSSF
A highly durable UNION grade 13 bushed bearing hinge that features carbon steel and phosphorous bronze flanged bushed bearings to provide long life aswell as a fixed pin for improved cycling and durability. The PowerLOAD hinge family are virtually mainteance free and supplied with a 25-year guarantee, and are suitable for timber fire doors FD30 and FD60* making this hinge family ideal for environments where durability and reliability are paramount.
*Intumescent protection must be used
Features & benefits
- Metal to metal wear and regular maintenance is significantly reduced by the carbon steel and phosphorous bronze flanged bearing bushes
- Phosphorous bronze ring offers a great looking finish and increases longevity
- Congruent fixing pattern spreads the load of the door more effectively within the timber
- Radius and square corner variants available
- Radius corner offers speed of fixing with machine tools
- Certified in compliance with CE, UKCA, Certifire and EN1935
- Maximum door mass: 120kg
- Durability tested to 200,000 cycles
Specifications
| Product Name | Union 603 Powerload Butt Hinge Radius Corner Satin Stainless Steel 100mm X 88mm X 3mm |
| Brand | UNION |
| Product Type | Hinge |
| EAN | 5011802131644 |
| Warranty Period | 25 years |
| Materials | Stainless steel |
| Commercial Or Domestic Use | Commercial |
| Application | Timber doors |
| BS EN Fire rating/performance classifications | Timber FD30 & FD60 - Intumescent protection must be used |
| Pack Quantity | 1 |
| Country Of Origin | CN |
| Applicable Standards | CE, UKCA, EN 1935, Certifire |
| Finish | Satin stainless steel |

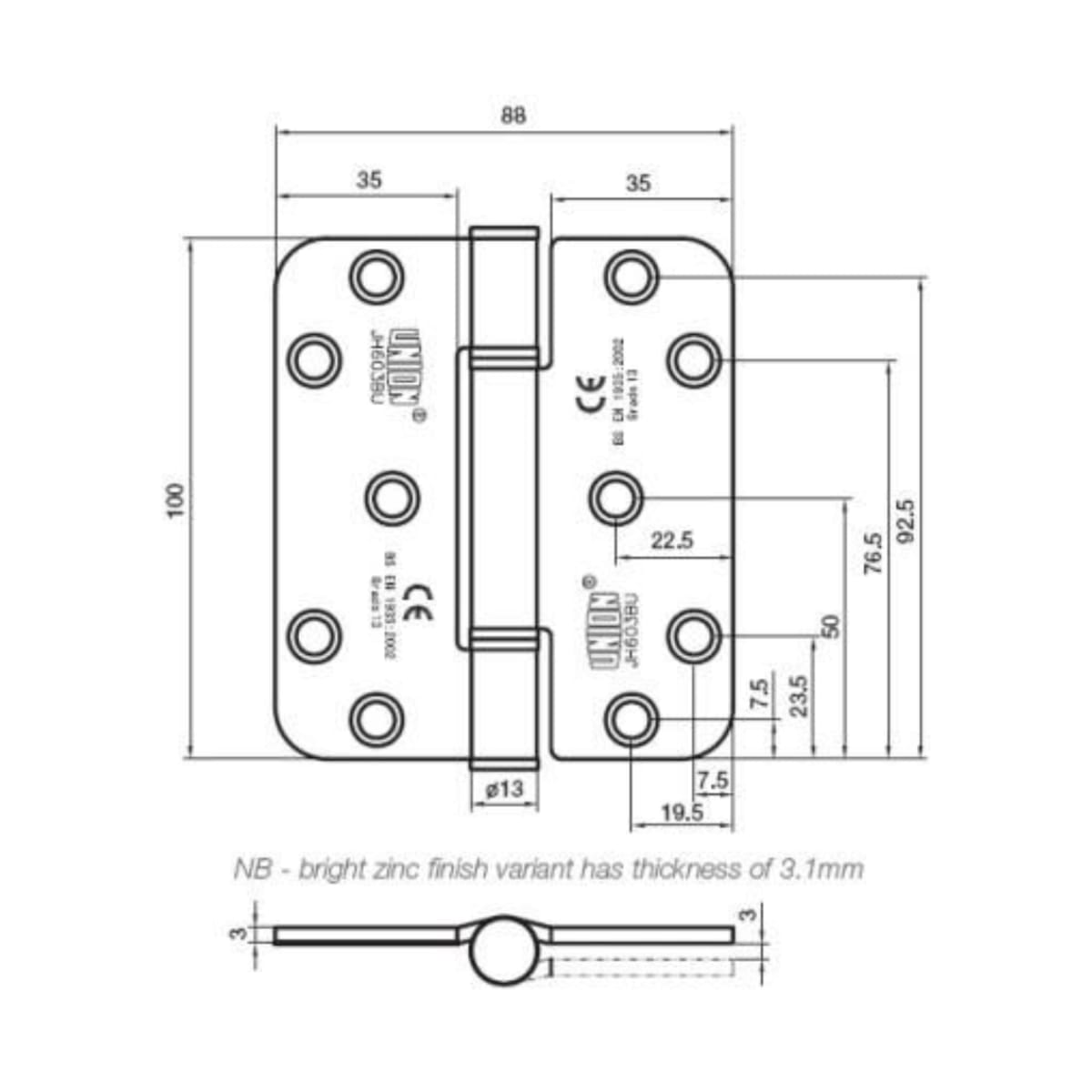

| Product Width | 88 mm |
| Product Height | 100 mm |
| Handing | None |
| Durability | heavy |
