Union 604 Powerload Lift Hinge RH Radius Corner Bright Zinc Plated 98mm X 82mm X 3mm
SKU: JH64RBZP
The high performance PowerLOAD 604 grade 11 lift-off hinges feature a half leaf design to reduce the material removed from doors on installation, as well as carbon steel and phosphorous bronze flanged bearing bushes providing long life. The PowerLOAD hinge family are virtually mainteance free and supplied with a 25-year guarantee, and are suitable for timber fire doors FD30 and FD60* making this hinge family ideal for environments where durability and reliability are paramount.*Intumescent protection must be used
Features & benefits
- Metal to metal wear and regular maintenance is significantly reduced by the carbon steel and phosphorous bronze flanged bearing bushes
- Phosphorous bronze ring offers a great looking finish and increases longevity
- Congruent fixing pattern spreads the load of the door more effectively within the timber
- Radius variants available, radius corner offers speed of fixing with machine tools
- Sold with both leaves together, without screws
- Certified in compliance with CE, UKCA, Certifire and EN1935
- Maximum door mass: 80kg
- Durability tested to 200,000 cycles
IDJH64RBZP
Hinges, Seals & Intumescent > Hinges > Fire Door GR13 Hinges > Union 604 Powerload Lift Hinge RH Radius Corner Bright Zinc Plated 98mm X 82mm X 3mm
https://www.george-boyd.co.uk/p/union-604-powerload-lift-hinge-rh-radius-corner-bright-zinc-plated-98mm-x-82mm-x-3mm-JH64RBZP
The high performance PowerLOAD 604 grade 11 lift-off hinges feature a half leaf design to reduce the material removed from doors on installation, as well as carbon steel and phosphorous bronze flanged bearing bushes providing long life. The PowerLOAD hinge family are virtually mainteance free and supplied with a 25-year guarantee, and are suitable for timber fire doors FD30 and FD60* making this hinge family ideal for environments where durability and reliability are paramount.*Intumescent protection must be used
Features & benefits
- Metal to metal wear and regular maintenance is significantly reduced by the carbon steel and phosphorous bronze flanged bearing bushes
- Phosphorous bronze ring offers a great looking finish and increases longevity
- Congruent fixing pattern spreads the load of the door more effectively within the timber
- Radius variants available, radius corner offers speed of fixing with machine tools
- Sold with both leaves together, without screws
- Certified in compliance with CE, UKCA, Certifire and EN1935
- Maximum door mass: 80kg
- Durability tested to 200,000 cycles
Specifications
| Product Name | Union 604 Powerload Lift Hinge RH Radius Corner Bright Zinc Plated 98mm X 82mm X 3mm |
| Brand | Union |
| Product Type | Hinge |
| Manufacturer Name | Assa Abloy Ltd |
| Manufacturer Part Number | JH604LARR-M-BZP |
| EAN | 5011802131699 |
| Warranty Period | 25 years |
| Materials | Mild steel |
| Commercial Or Domestic Use | Commercial |
| Application | Timber doors |
| BS EN Fire rating/performance classifications | Timber FD30 & FD60 - Intumescent protection must be used |
| Pack Quantity | 1 |
| Country Of Origin | CN |
| Applicable Standards | CE, UKCA, EN 1935, Certifire |
| Finish | Bright Zinc Plated |

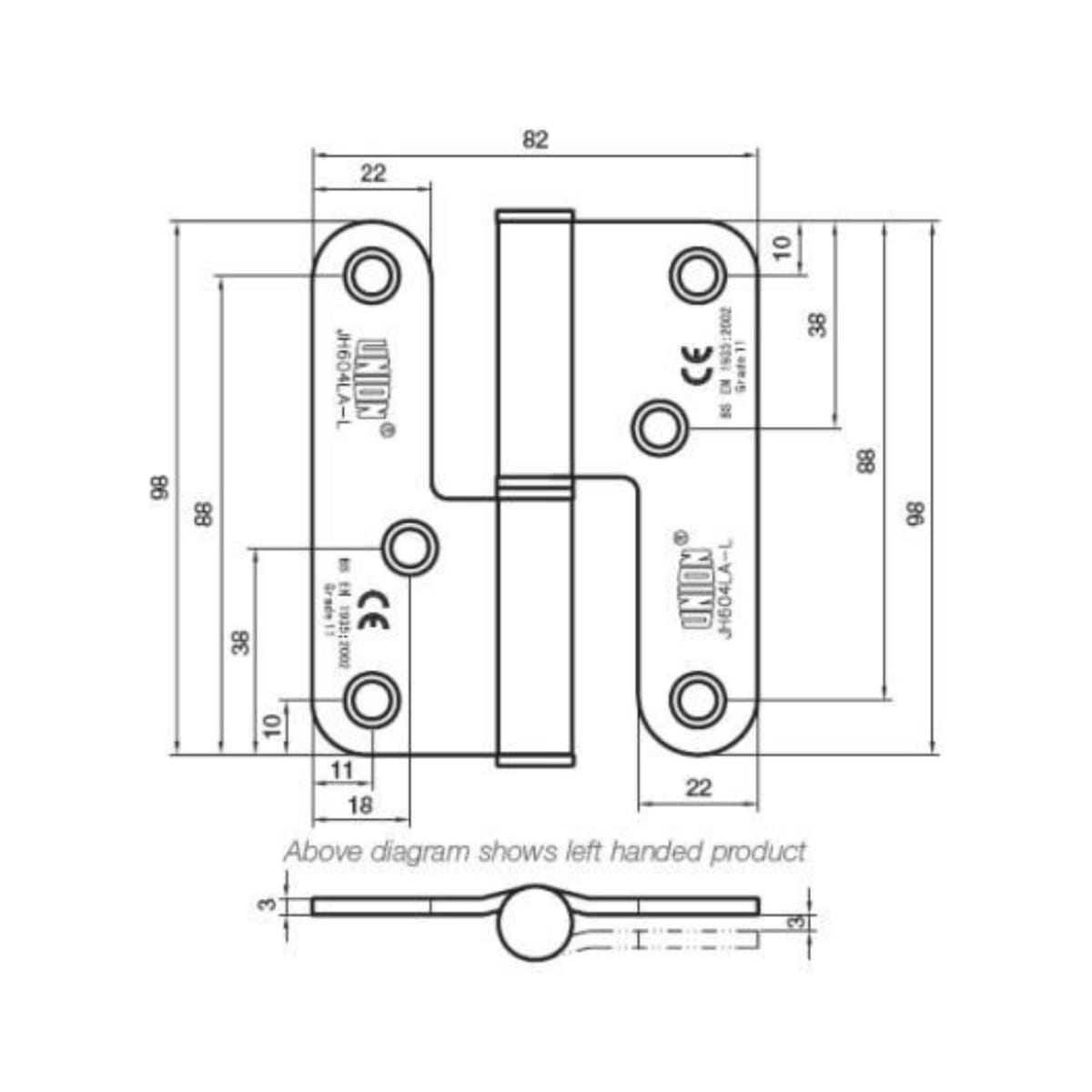

| Product Width | 82 mm |
| Product Height | 98 mm |
| Handing | None |
| Durability | heavy |
