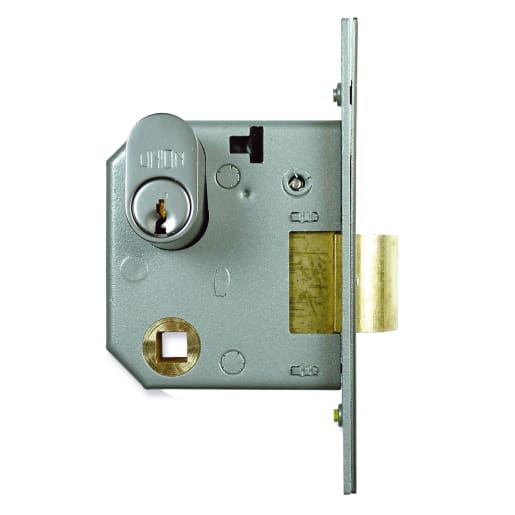

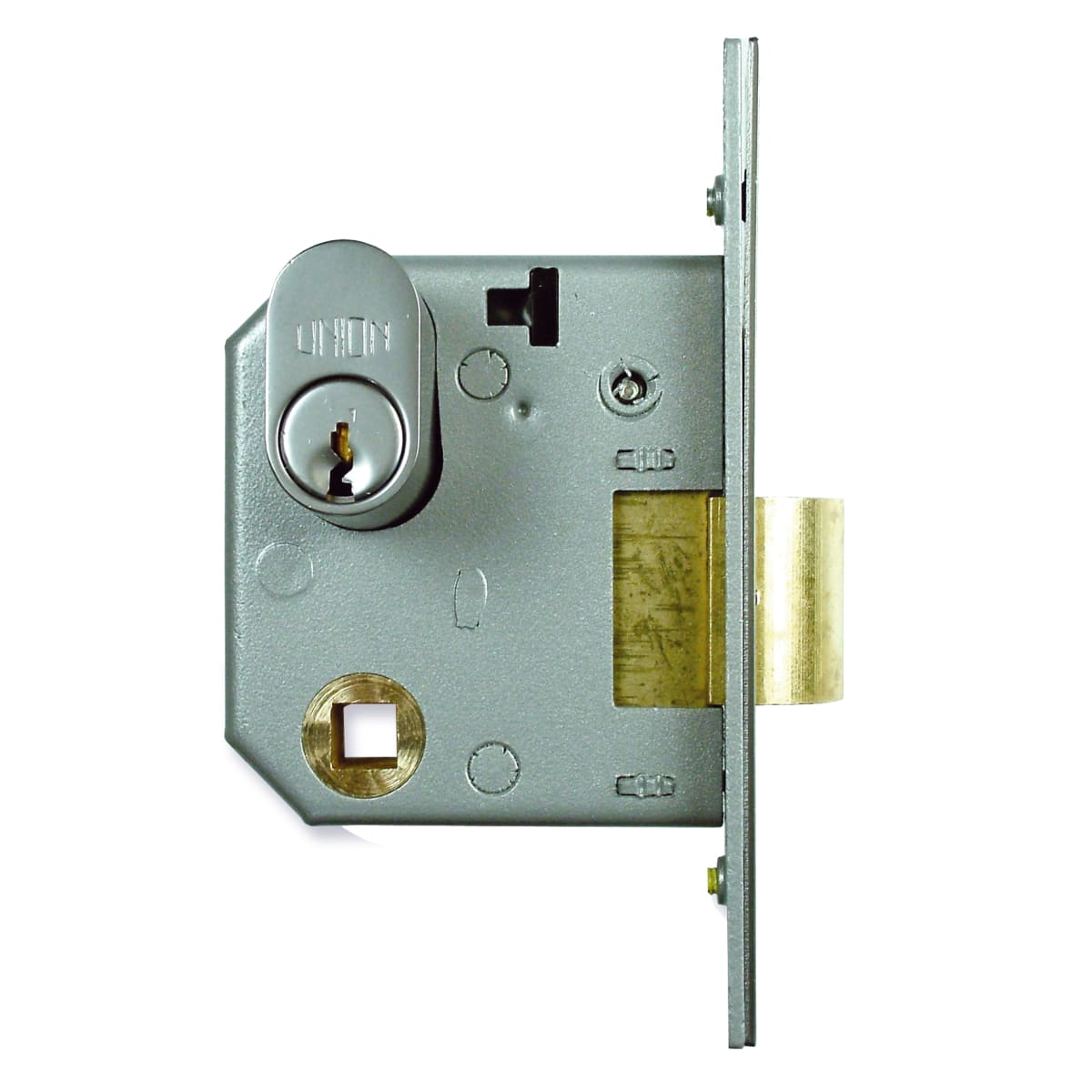

Union 2332 Oval Profile Mortice Nightlatch 77mm Satin Chrome
SKU: HWUN7340
Union Oval Profile Mortice Nightlatch 77mm (D) Case Size Satin Chrome is suitable for internal doors where no locking is required and is designed with a high standard security level, which ensures user safety. The oval latch is an evolution from a mortice lock, downsized so that it can be fitted with much less effort. The anti-bump feature works by having more pins and special keys having shallow pin stacks to prevent them from jumping up. It is easy to install with minimal drilling and cutting to the door. The latch bolt can be withdrawn by sprung lever handle from either side.
Features & benefits
- For timber doors hinged on the left or right
- Also suitable for steel & composite doors - special fixings required
- May be supplied master keyed
- Latch bolt withdrawn by cylinder key from outside or separate turn inside
- Latch bolt can be held in the withdrawn position by use of the snib in the forend (2332 & L2332 variants only)
- Not suitable for use with unsprung lever handles
- Reversible latch bolt
- Case Size: 77.5mm (3")
- Backset: 60mm
IDHWUN7340
Locks & Security > Locks, Latches & Cylinders > Nightlatches > Union 2332 Oval Profile Mortice Nightlatch 77mm Satin Chrome
https://www.george-boyd.co.uk/p/union-oval-mortice-nightlatch-77-5mm-d-satin-chrome-HWUN7340
Union Oval Profile Mortice Nightlatch 77mm (D) Case Size Satin Chrome is suitable for internal doors where no locking is required and is designed with a high standard security level, which ensures user safety. The oval latch is an evolution from a mortice lock, downsized so that it can be fitted with much less effort. The anti-bump feature works by having more pins and special keys having shallow pin stacks to prevent them from jumping up. It is easy to install with minimal drilling and cutting to the door. The latch bolt can be withdrawn by sprung lever handle from either side.
Features & benefits
- For timber doors hinged on the left or right
- Also suitable for steel & composite doors - special fixings required
- May be supplied master keyed
- Latch bolt withdrawn by cylinder key from outside or separate turn inside
- Latch bolt can be held in the withdrawn position by use of the snib in the forend (2332 & L2332 variants only)
- Not suitable for use with unsprung lever handles
- Reversible latch bolt
- Case Size: 77.5mm (3")
- Backset: 60mm
Specifications
Product Name | Union 2332 Oval Profile Mortice Nightlatch 77mm Satin Chrome |
Brand | Union |
Product Type | Nightlatch |
Manufacturer Name | Yale Security (Assa Abloy) |
Manufacturer Part Number | JL2332-SC-3.00 |
EAN | 5011802012172 |
Compliance Approvals | Kitemarked to BS 3621 : 2066 |
Warranty Period | 10 years |
Materials | Steel, Brass |
Commercial Or Domestic Use | Both |
Range | Oval |
Application | Interior/External |
Pack Quantity | 1 |
Country Of Origin | United Kingdom |
Finish | Satin Chrome |
Product Width | 25.5 mm |
Product Length | 120.5 mm |
Product Depth | 77 mm |
