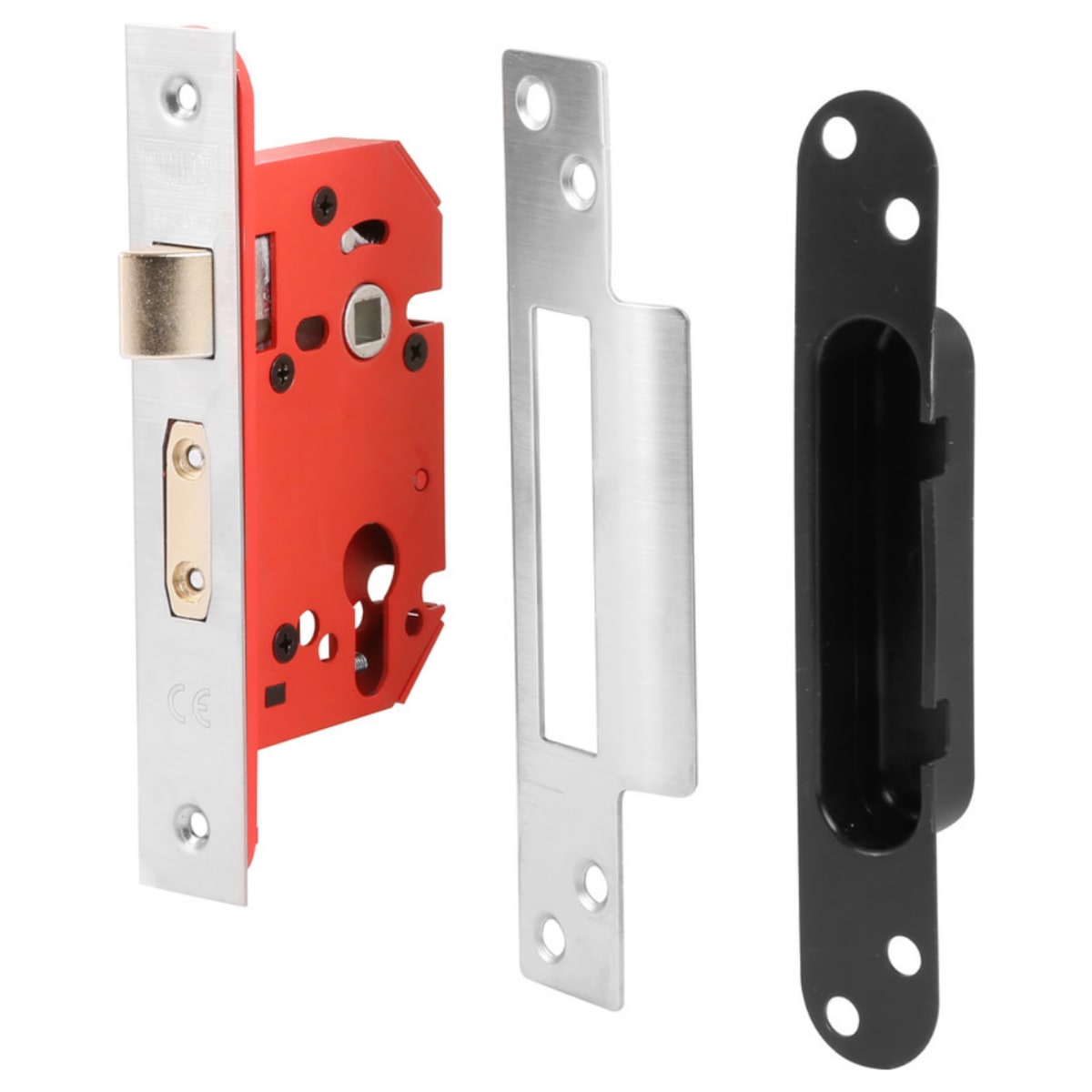

Union 22EU StrongBolt Euro Profile Cylinder 5 Lever Sashlock 68mm Stainless Steel
SKU: YL22SS25
The UNION StrongBolt 22EU Euro Profile Cylinder Sashlock is a high-security lock designed to prevent lock picking and forced entry. With a 5 lever mechanism and anti-pick, anti-drill, and anti-saw features, this British standard security lock provides ultimate peace of mind. It comes with a 14mm deadbolt for secure positive deadlocking and can be locked or unlocked by key or cylinder turn. The chamfered bolt design increases the performance of the lock under side load testing, and the reversible radius latch allows for easy installation without tools. This corrosion-resistant lock is suitable for doors up to 54mm thick and is EN122209 approved. Supplied with fixings and a 10-year guarantee, this durable lock is an ideal choice for tradesmen, architects, and specifiers.
Features & benefits
- Can be fitted on doors which are hinged on either side with their easily reversible radius latch that uses the unique UNION SwitchLatch technology
- Designed for wooden doors up to 54mm thick
- The 14mm deadbolt is both locked and unlocked via a euro profile cylinder

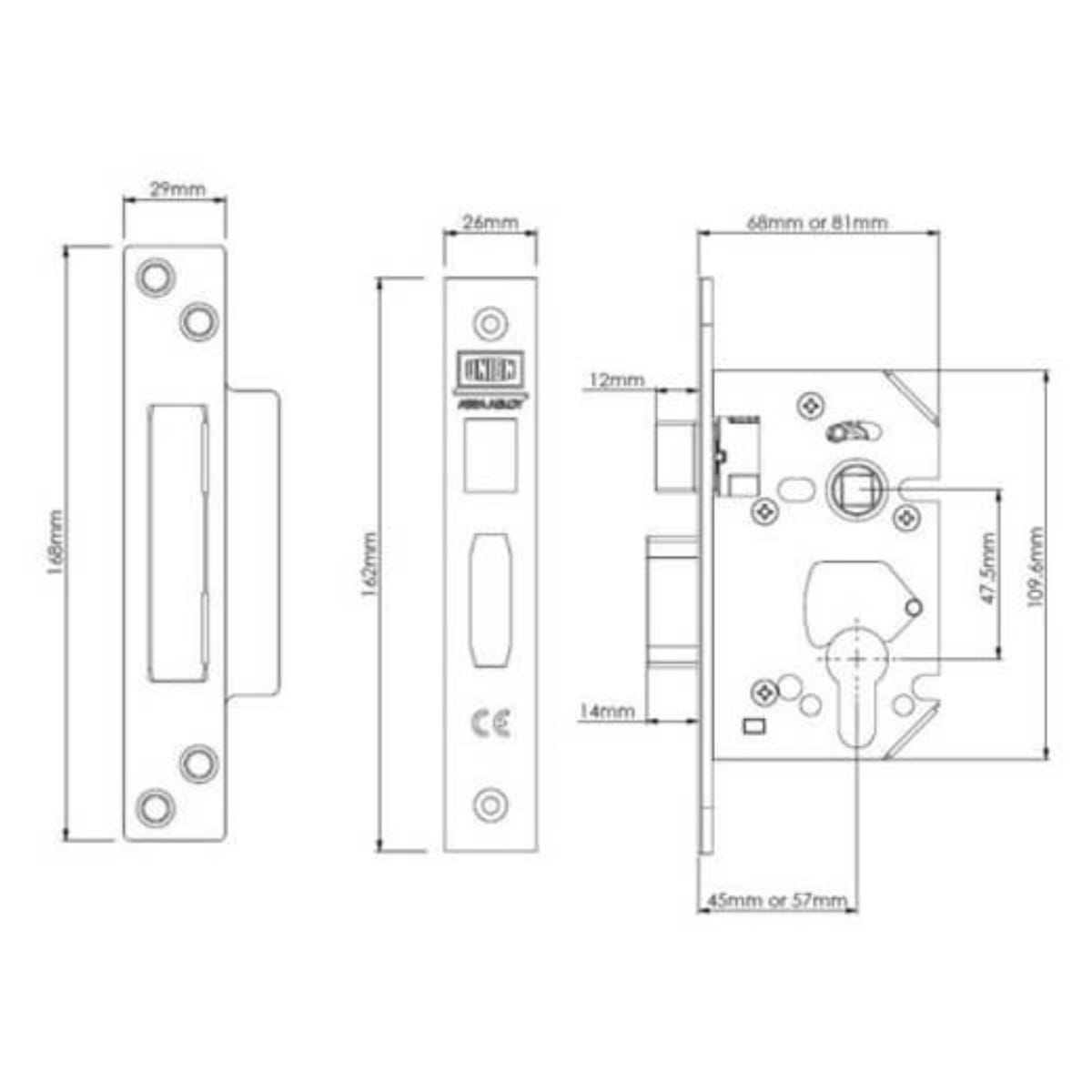

- Case Size: 68mm x 110mm
- Backset: 45mm
- Centre: 47.5mm
- Supplied with square face plate which covers a radius inner forend.
- Supplied with 2 steel nickel plated keys, instructions and fixings. Not supplied with cylinder
- Tested to BS EN 12209:2003.
- 10 Year Manufacturer's Guarantee
IDYL22SS25
Locks & Security > Locks, Latches & Cylinders > Mortice Locks > Union 22EU StrongBolt Euro Profile Cylinder 5 Lever Sashlock 68mm Stainless Steel
https://www.george-boyd.co.uk/p/union-strongbolt-22eu-euro-profile-cylinder-sashlock-168-x-68mm-YL22SS25
Sorry, we are currently unable to take orders through our website. Please call your local branch for more info.
Please log in/register to save items.
The UNION StrongBolt 22EU Euro Profile Cylinder Sashlock is a high-security lock designed to prevent lock picking and forced entry. With a 5 lever mechanism and anti-pick, anti-drill, and anti-saw features, this British standard security lock provides ultimate peace of mind. It comes with a 14mm deadbolt for secure positive deadlocking and can be locked or unlocked by key or cylinder turn. The chamfered bolt design increases the performance of the lock under side load testing, and the reversible radius latch allows for easy installation without tools. This corrosion-resistant lock is suitable for doors up to 54mm thick and is EN122209 approved. Supplied with fixings and a 10-year guarantee, this durable lock is an ideal choice for tradesmen, architects, and specifiers.
Features & benefits
- Can be fitted on doors which are hinged on either side with their easily reversible radius latch that uses the unique UNION SwitchLatch technology
- Designed for wooden doors up to 54mm thick
- The 14mm deadbolt is both locked and unlocked via a euro profile cylinder
- Case Size: 68mm x 110mm
- Backset: 45mm
- Centre: 47.5mm
- Supplied with square face plate which covers a radius inner forend.
- Supplied with 2 steel nickel plated keys, instructions and fixings. Not supplied with cylinder
- Tested to BS EN 12209:2003.
- 10 Year Manufacturer's Guarantee
Specifications
| Product Name | Union 22EU StrongBolt Euro Profile Cylinder 5 Lever Sashlock 68mm Stainless Steel |
| Brand | Union |
| Product Type | Lock Case |
| Manufacturer Name | Assa Abloy Ltd |
| Manufacturer Part Number | YL22EUS-SS-2.5 |
| EAN | 5011802190405 |
| Compliance Approvals | CE Marked |
| Warranty Period | 10 years |
| Materials | Steel |
| Range | Euro |
| Pack Quantity | 1 |
| Country Of Origin | Romania |
| Applicable Standards | certifire,en 12209,en 1634 1,ukca |
| Finish | Stainless Steel |
| Product Width | 68 mm |
| Product Length | 168 mm |
| Centres | 47.5 mm |
| Case Size | 63.5 mm |
| Bolt Throw | 14 mm |
| Backset | 45 mm |
