Union StrongBOLT 5 Lever Mortice Bathroom Lock 68mm Polished Brass
SKU: YU217584
The Union StrongBOLT Mortice Bathroom Locks provide a secure and durable solution for timber doors hinged on the left or right. With its unique UNION SwitchLatch technology, the reversible radius latch can be adjusted without tools. The lock's chamfered bolt design increases its performance under side load testing and makes drilling attack more difficult, while the anti-pick and keyhole protection provide resistance to forced entry by picking. The lock's 14mm deadbolt provides secure positive deadlocking and additional resistance against attack. The lock can be installed in many UK mortices without additional carpentry, and the plastic splinter guard and radius inner forend allows easy installation and a professional finish. The lock comes with 2 keys and fixings for your convenience.
Features & benefits
- 60 minute fire rating
- 10 year guarantee

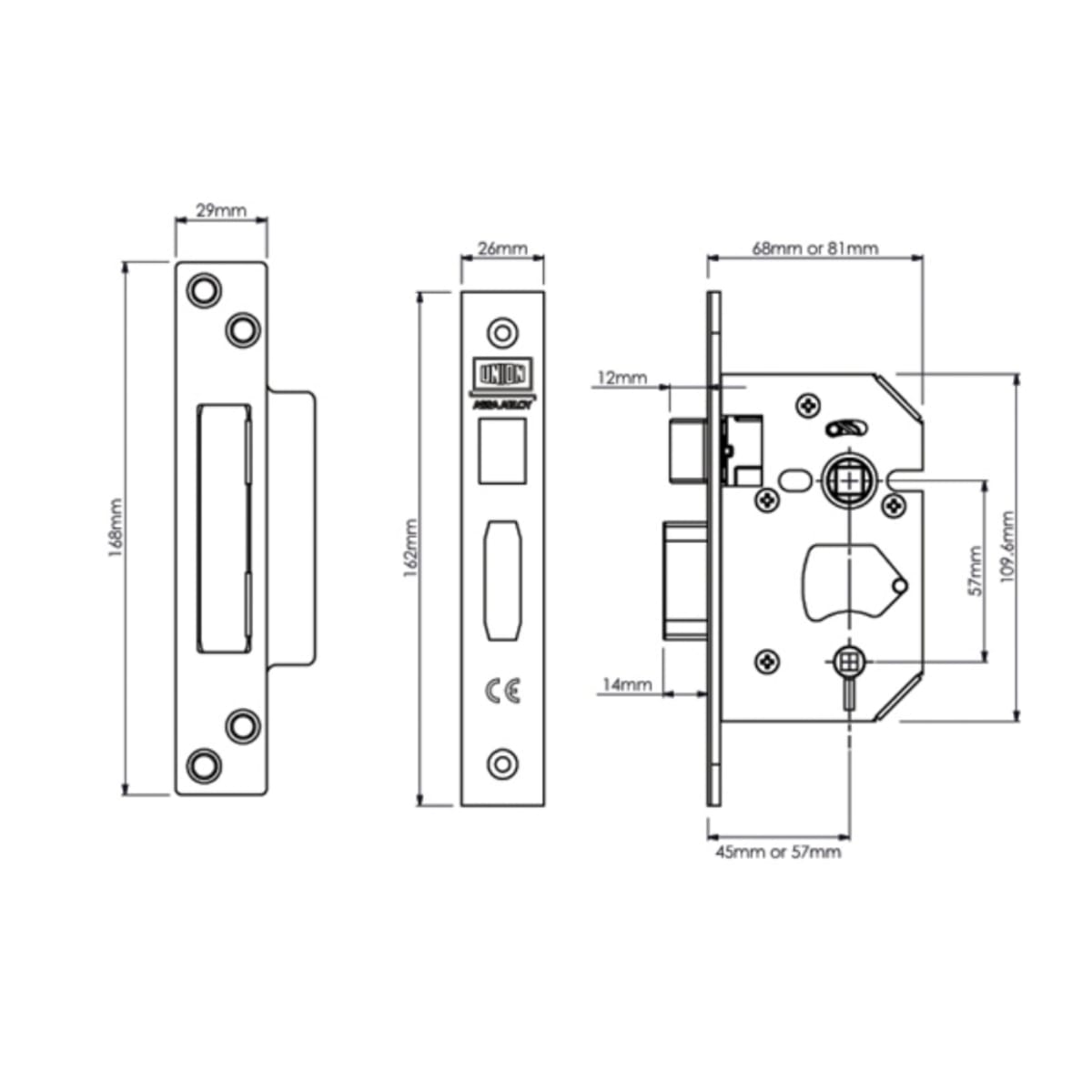

- Case size: 68 x 109.6mm
- Backset: 45mm
- Centre: 57mm
- Suitable for use with 5mm turn
- 14mm deadbolt for secure positive deadlocking
- Anti-saw and anti pick feature, for ultimate peace of mind and security
- Comes with instructions fixings
- Suitable for doors up to 54mm thick
IDYU217584
Locks & Security > Locks, Latches & Cylinders > Mortice Locks > Union StrongBOLT 5 Lever Mortice Bathroom Lock 68mm Polished Brass
https://www.george-boyd.co.uk/p/union-strongbolt-mortice-bathroom-lock-2-5-polished-brass-YU217584
The Union StrongBOLT Mortice Bathroom Locks provide a secure and durable solution for timber doors hinged on the left or right. With its unique UNION SwitchLatch technology, the reversible radius latch can be adjusted without tools. The lock's chamfered bolt design increases its performance under side load testing and makes drilling attack more difficult, while the anti-pick and keyhole protection provide resistance to forced entry by picking. The lock's 14mm deadbolt provides secure positive deadlocking and additional resistance against attack. The lock can be installed in many UK mortices without additional carpentry, and the plastic splinter guard and radius inner forend allows easy installation and a professional finish. The lock comes with 2 keys and fixings for your convenience.
Features & benefits
- 60 minute fire rating
- 10 year guarantee
- Case size: 68 x 109.6mm
- Backset: 45mm
- Centre: 57mm
- Suitable for use with 5mm turn
- 14mm deadbolt for secure positive deadlocking
- Anti-saw and anti pick feature, for ultimate peace of mind and security
- Comes with instructions fixings
- Suitable for doors up to 54mm thick
Specifications
Product Name | Union StrongBOLT 5 Lever Mortice Bathroom Lock 68mm Polished Brass |
Brand | Union |
Product Type | Bathroom Lock |
Manufacturer Name | Assa Abloy Ltd |
Manufacturer Part Number | Y22WCS-PB-2.5 |
EAN | 5011802175846 |
Compliance Approvals | CE Marked |
Warranty Period | 10 years |
Materials | Steel |
Pack Quantity | 1 |
Country Of Origin | Romania |
Applicable Standards | certifire,en 12209,en 1634 1,ukca |
Finish | Polished Brass |
Product Width | 2.5 in |
Case Size | 63.5 mm |
Bolt Throw | 14 mm |
Backset | 45 mm |
